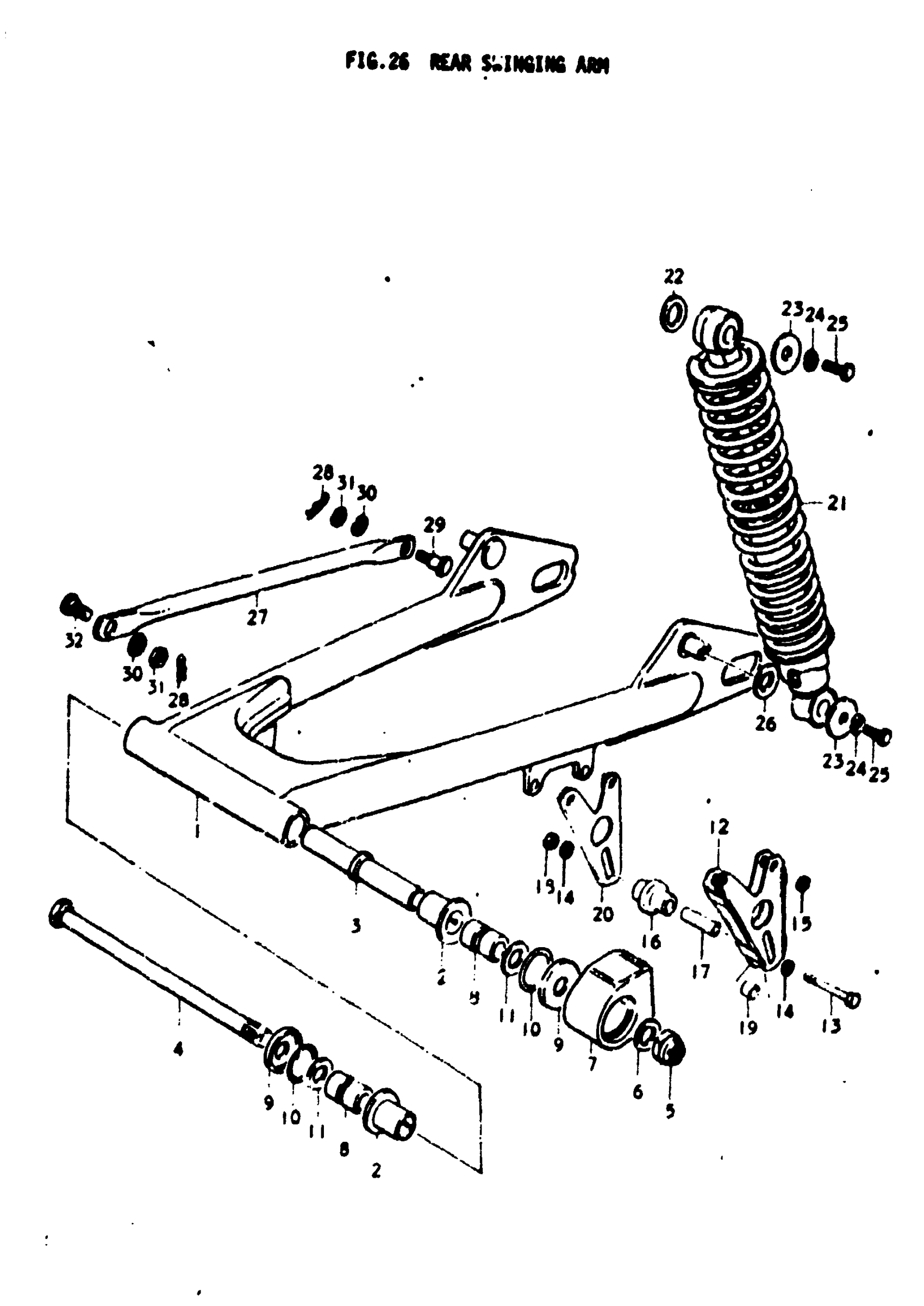

Suzuki TM125 (1975) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | K,L; Includes Item(s) 2 - 3

61100-28830-019

Unavailable

2

BUSHING | K,L This part replaces 09307-18001.

09307-18002

$10.21

3

SPACER | K,L

61280-28000

Unavailable

4

SHAFT, PIVOT | K,L

61211-28600

Unavailable

5

NUT | K,L

09159-12101

Unavailable

6

WASHER | K,L This part replaces 08322-11128.

08322-01127

$1.84

7

BUFFER,CHAIN TO | K,L This part replaces 61273-28000.

61273-28002

$11.02

8

SPACER | K,L

61251-28000

$13.36

9

COVER, DUST SEAL | K,L

61262-09200

$3.59

10

.O-RING (D:3,ID:24.5) | K,L This part replaces 09280-24001.

09280-24003

$1.55

11

THRUST WASHER | K,L; 12.5x24x2.3

09160-12005

$2.38

12

GUIDE, CHAIN | K,L

61340-32101

Unavailable

13

BOLT | K,L This part replaces 01112-06558.

01500-0655B

$2.92

14

WASHER | K,L This part replaces 08322-21068.

08322-01067

$2.13

15

LOCK WASHER | K,L This part replaces 08321-21068.

08321-01067

$2.13

16

RUBBER, CHAIN GUIDE | K,L

61345-32100

Unavailable

17

SPACER, CHAIN GUIDE | K,L

09180-06056

Unavailable

18

NUT | K,L

09159-06010

Unavailable

19

SPACER | K,L; 6.5x12x6.9

09180-06010

Unavailable

20

GUIDE, CHAIN | K,L

61350-32100

Unavailable

21

SHOCK ABSORBER ASSY, REAR | K,L

62100-28702

Unavailable

22

WASHER (12.5X26X1.6) | K; 12.5x26x1.6 This part replaces 09160-12020.

09160-12089

$1.97

22

WASHER | L

09164-12007

Unavailable

23

WASHER, FRONT | K,L This part replaces 09160-06004.

09160-06134

$1.91

24

LOCK WASHER | K,L This part replaces 08321-21068.

08321-01067

$2.13

25

BOLT, CANISTER | K This part replaces 01112-06168.

01500-06167

$1.97

25

BOLT | L This part replaces 01112-06127.

01500-06127

$1.97

26

WASHER | K,L This part replaces 08322-11128.

08322-01127

$1.84

27

TORQUE LINK REA | K,L This part replaces 64311-28000.

64311-28000-019

$18.80

28

CLIP | K,L This part replaces 09385-10001.

09385-10005

$1.56

29

BOLT | K,L

09111-08013

$3.04

30

.LOCK WASHER | K,L This part replaces 08321-21088.

08321-01087

$2.13

31

NUT | K,L

09140-08008

$1.49

32

BOLT | K,L

09111-08015

$3.16
