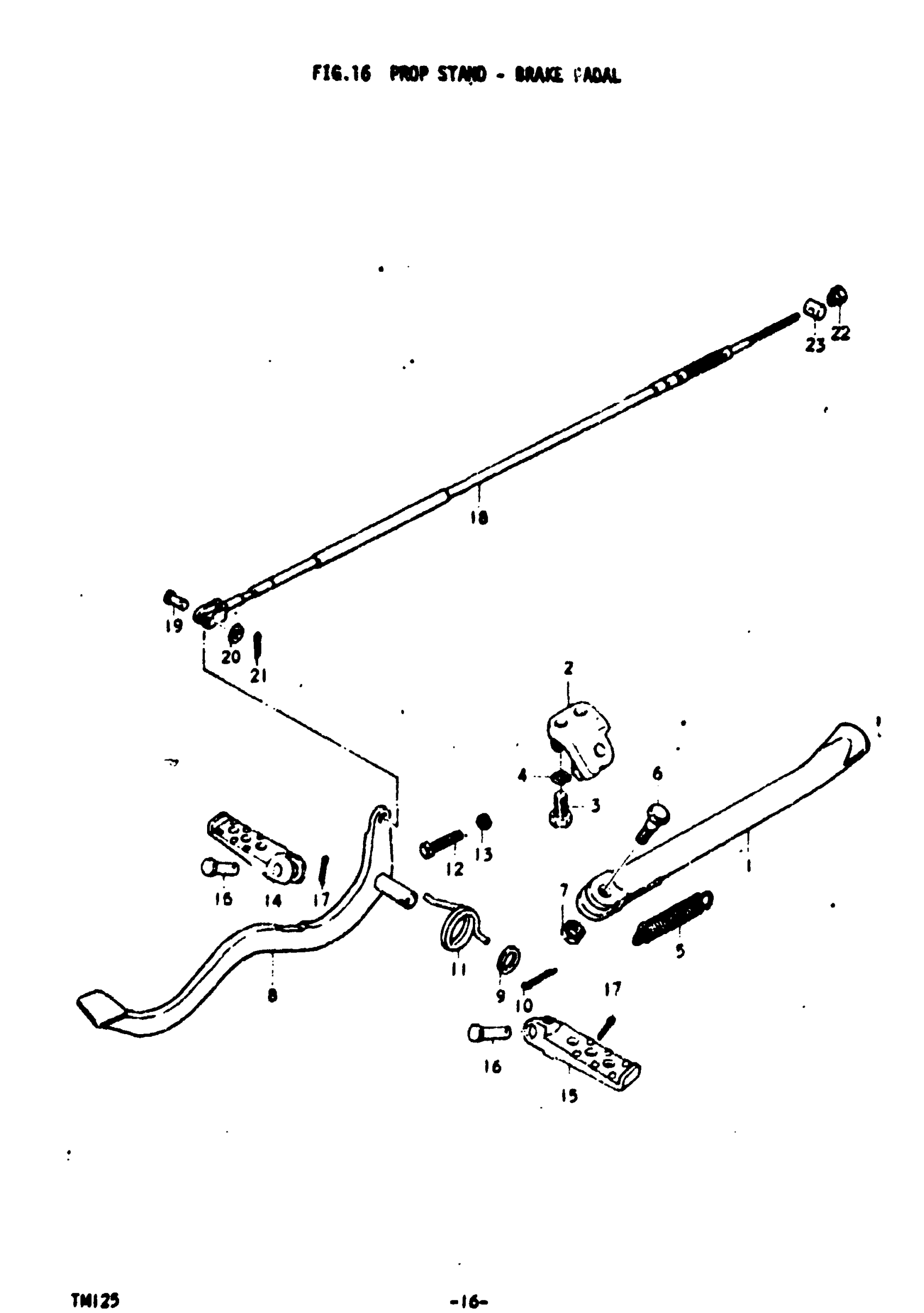

Suzuki TM125 (1975) PROP STAND - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, PROP | K,L

42310-25000

Unavailable

1

STAND, PROP | M This part replaces 42310-16500.

42310-41100

Unavailable

2

BRACKET, PROP STAND

42330-32100

Unavailable

3

BOLT This part replaces 01122-10258.

01500-10257

$3.85

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

SPRING This part replaces 09443-14005.

09443-14017

$3.04

6

BOLT

09100-10067

$2.61

7

NUT This part replaces 08312-31108.

08310-00107

$2.19

8

PEDAL, BRAKE This part replaces 43110-28300.

43110-28301

Unavailable

9

WASHER This part replaces 08322-11128.

08322-01127

$1.84

10

PIN This part replaces 04111-30208.

04111-3020A

$1.50

11

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

12

BOLT

09100-06003

Unavailable

13

.NUT This part replaces 08311-11068.

08310-00067

$2.13

14

FOOTREST, RH

43511-30100

Unavailable

15

FOOTREST, LH

43521-30100

Unavailable

16

PIN

04322-08308

Unavailable

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

CABLE ASSY, REAR BRAKE | K,L This part replaces 58510-28300.

58510-28000

Unavailable

18

CABLE, REAR BRAKE | M

58510-28000

Unavailable

19

PIN

09200-05001

$1.65

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

22

.NUT This part replaces 09150-06001.

09150-06010

$3.10

23

PIN

09209-11002

$2.19
