1975 Suzuki TM125 Piston - Crankshaft Diagram

← All diagrams

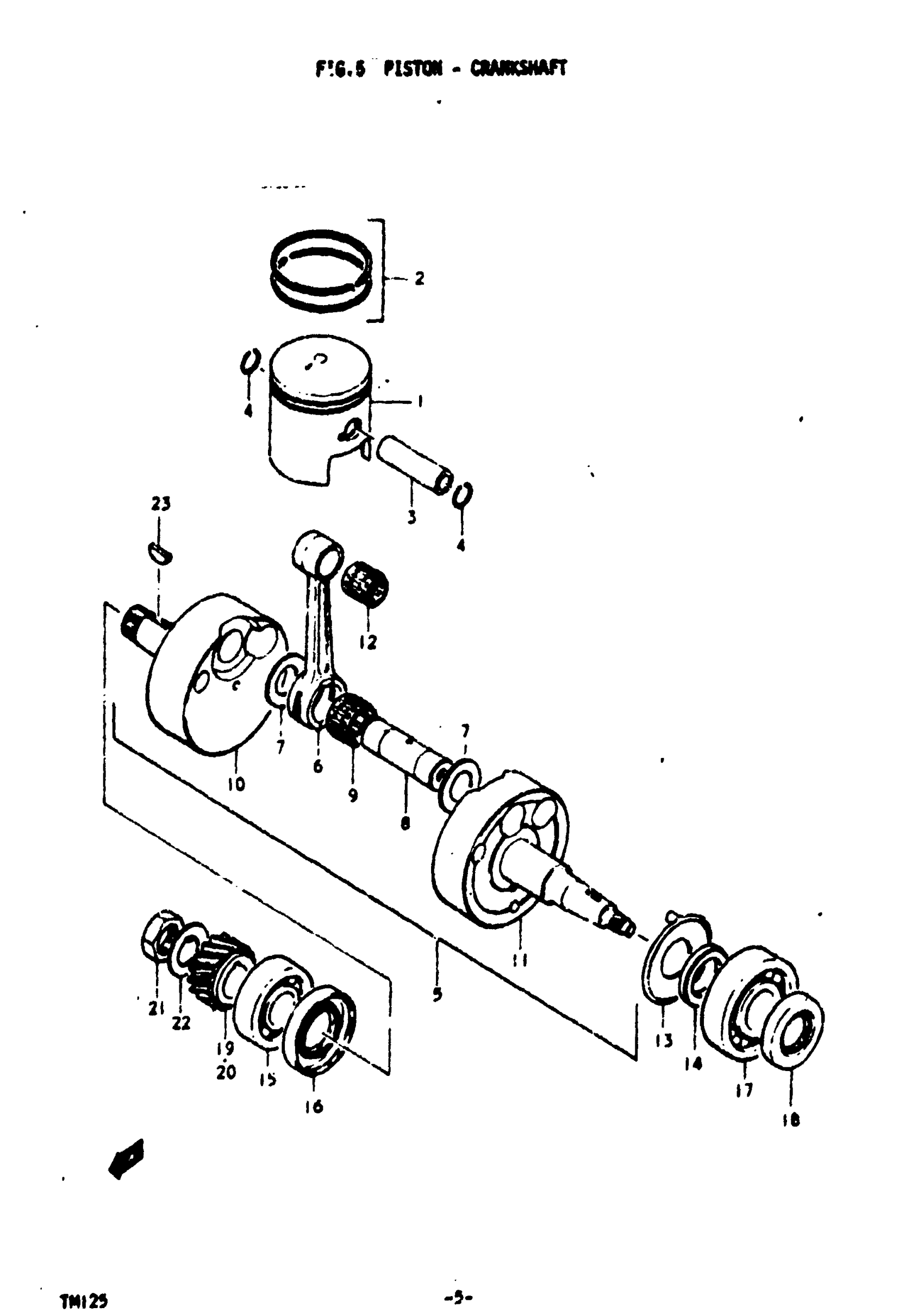

Find the part on the Piston - Crankshaft diagram for your 1975 Suzuki TM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki TM125 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | K,L; TO 12110-28980 This part replaces 12110-28301.

12110-41731

1
Out of stock

1

NO DESCRIPTION AVAILABLE | M This part replaces 12110-28760.

12110-41731

1
Out of stock

1

NO DESCRIPTION AVAILABLE | OS:0.5 OPT This part replaces 12110-28743.

12110-41731-050

1
Out of stock

2

RING SET, PISTO This part replaces 12140-28010.

12140-28021

1
Out of stock

2

RING SET PISTON | OS:0.5 OPT This part replaces 12140-28710.

12140-28011-050

1
Out of stock

3

PIN This part replaces 12151-28000.

12151-05200

1
Out of stock

4

RING

09381-14001

2
Out of stock

5

CRANKSHAFT ASSY | K; TO 12200-28300

12200-28830

—
Out of stock

5

CRANKSHAFT ASSY | L,M; Includes Item(s) 6 - 12

12200-28300

—
Out of stock

6

CONNECTING ROD | K; TO 12161-12000 This part replaces 12161-28300.

12161-39300

1
Out of stock

6

CONNECTING ROD | L,M This part replaces 12161-12000.

12161-39300

1
Out of stock

7

THRUST WASHER | K,L; 19x32x1 TO 09160-19002

09160-19001

2
Out of stock

7

THRUST WASHER | M This part replaces 09160-19002.

09160-19001

2
Out of stock

8

PIN, CRANK

12211-28000

1
Out of stock

9

BEARING This part replaces 09263-19007.

09263-19009

1
Out of stock

10

CRANKSHAFT, RH

12221-28001

—
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 12261-28002.

12261-41001

1
Out of stock

12

ROLLR BRG,14X18 This part replaces 09263-14004.

09263-14022

1
Out of stock

13

PLATE, OIL GUIDE

12511-28002

1
Out of stock

14

SPACER

09180-25041

1
Out of stock

15

BEARING, COUNTER SHAFT | 20x52x15 This part replaces 09262-20009.

09262-20073

1
Out of stock

16

OIL SEAL | 26x52x8

09283-26007

1
Out of stock

17

BEARING | 25x62x17

09269-25013

1
Out of stock

18

OIL SEAL, LH | 25x44x7 This part replaces 09283-25037.

09283-25066

1
Out of stock

19

NO DESCRIPTION AVAILABLE | K; NT:16 This part replaces 21111-28000.

21111-28001

1
Out of stock

20

GEAR, PRIMARY DRIVE | L,M; NT:17

21111-28700

1
Out of stock

21

NUT

09140-18002

1
Out of stock

22

WASHER | 18x37x0.8

09166-18001

1
Out of stock

23

KEY

08341-31059

1
Out of stock
