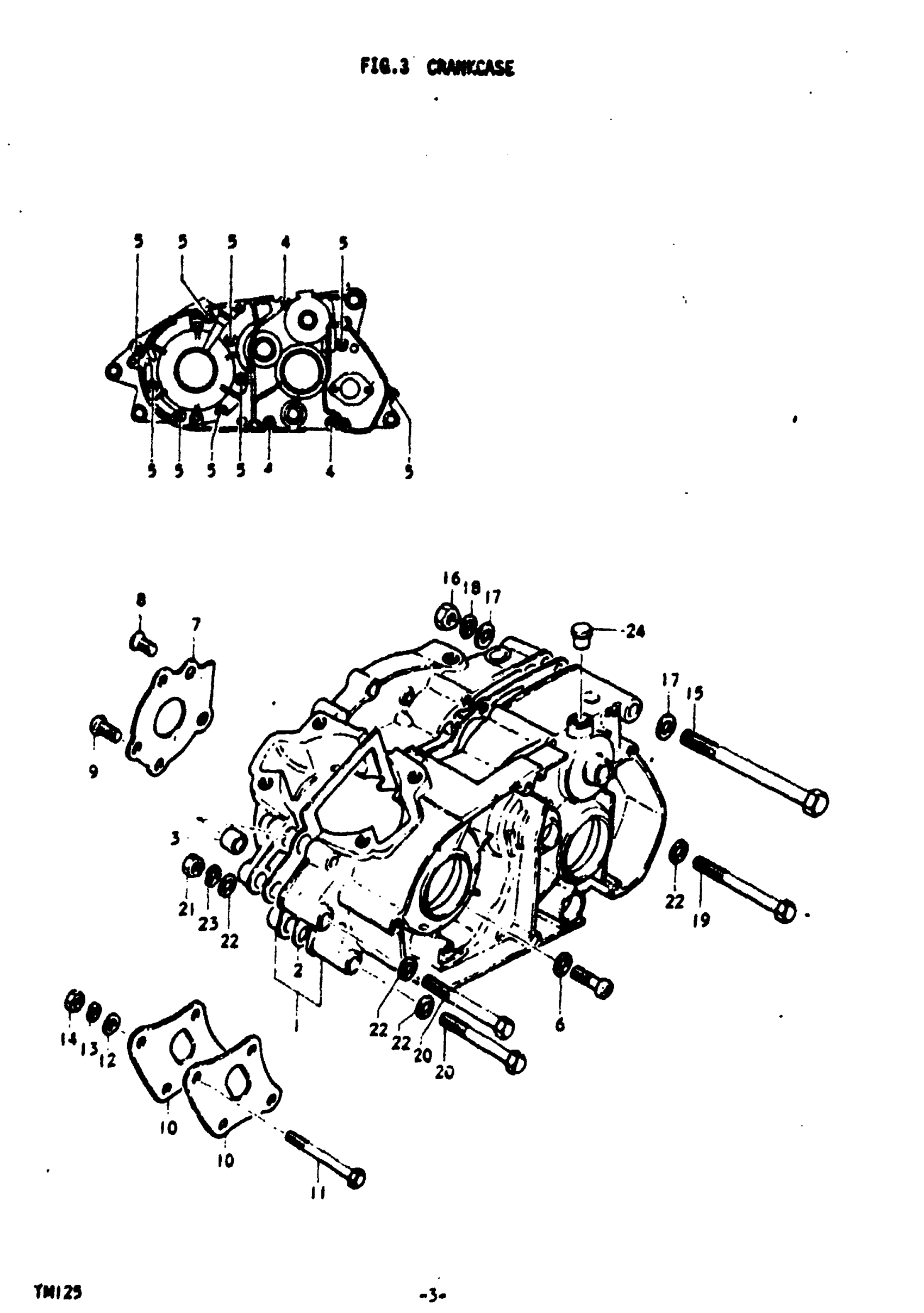

Suzuki TM125 (1975) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | K; TO 11300-28840

11300-28828

Unavailable

1

CRANKCASE SET | L

11300-28840

Unavailable

1

CRANKCASE SET | M; Includes Item(s) 2 - 6

11300-28841

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-28000.

11481-28001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06657

$2.64

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.77

6

.WASHER This part replaces 08322-11068.

08322-0106B

$2.24

7

PLATE, OIL RESERVOIR

12561-28002

Unavailable

8

SCREW This part replaces 02122-06128.

02122-06127

$1.83

9

SCREW This part replaces 02112-06168.

02112-06167

$1.43

10

PLATE, ENGINE MOUNTING

41591-28000

Unavailable

11

BOLT This part replaces 01112-08708.

01500-0870B

$4.45

12

WASHER This part replaces 08322-11088.

08322-01087

$1.86

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

14

NUT This part replaces 08312-11088.

08310-00087

$1.83

15

BOLT 10X125 | K,L This part replaces 09100-10051.

09100-10274

$7.77

15

BOLT | M This part replaces 09100-10060.

09116-10032

$6.27

16

NUT This part replaces 08312-11108.

08310-00107

$2.19

17

WASHER This part replaces 08322-11108.

08322-01107

$1.88

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

19

BOLT This part replaces 01122-08808.

01500-0880B

$4.45

20

BOLT This part replaces 01122-08708.

01500-0870B

$4.45

21

NUT This part replaces 08312-11088.

08310-00087

$1.83

22

WASHER This part replaces 08322-11088.

08322-01087

$1.86

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

24

PLUG, GEAR SHIFTING SWITCH HOL

09250-10001

$1.88
