Partiron

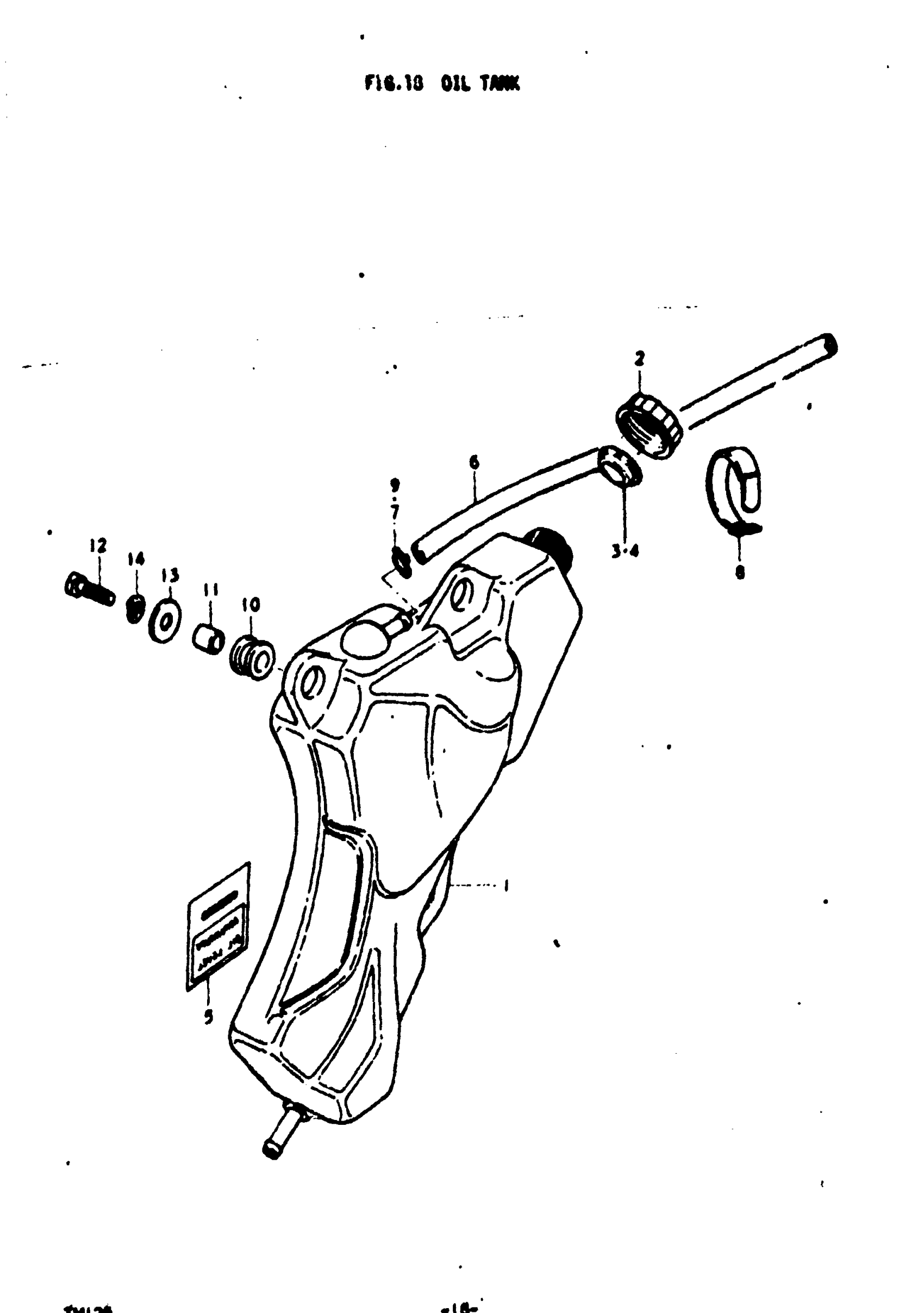

Suzuki TM125 (1975) OIL TANK Diagram

#

Description
Price

1

TANK, OIL

44611-16502

Unavailable

2

CAP, OIL TANK

51221-51010

Unavailable

3

GASKET, OIL TANK CAP | L,M This part replaces 44661-32100.

51222-16500

$5.11

4

GASKET, OIL TANK CAP | K; TO 44661-32100 This part replaces 44661-32100.

51222-16500

$5.11

5

EMBLEM, OIL TANK

68328-16500

Unavailable

6

HOSE (5X8X2000) This part replaces 09344-05005.

09351-50803-00B

$9.10

7

CLIP

09401-08401

$1.54

8

CLAMP This part replaces 09407-09301.

09407-09303

$1.93

9

CLIP | M

09401-08401

$1.54

10

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

11

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

12

BOLT This part replaces 01112-06208.

01500-06207

$2.28

13

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
