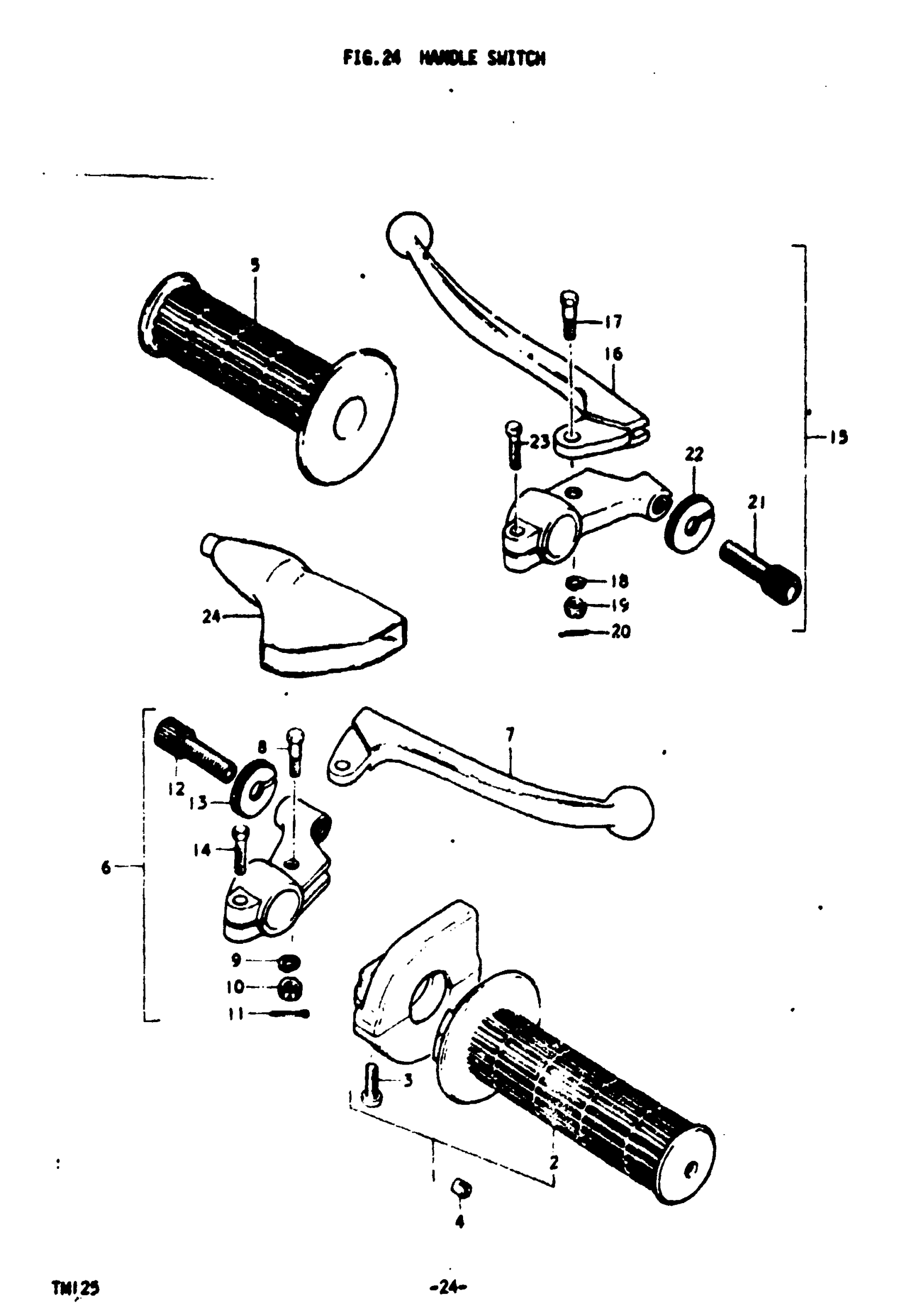

Suzuki TM125 (1975) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | Includes Item(s) 2 - 3

57100-30110

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 57110-30110.

57110-30111

Unavailable

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

PIECE, THROTTLE END

58631-07010

$3.56

5

GRIP, LH

57211-25700

Unavailable

6

LEVER ASSY, BRAKE | K,L; TO 57300-11011 This part replaces 57300-28310.

57300-32500

Unavailable

6

LEVER ASSY, BRAKE | M; Includes Item(s) 7 - 14 This part replaces 57300-11011.

57300-32500

Unavailable

7

LEVER, BRAKE This part replaces 57420-18011.

57420-29400

Unavailable

8

BOLT This part replaces 57431-11010.

57431-11013

$6.31

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

NUT

57433-11010

$5.64

11

PIN This part replaces 04111-16158.

04111-1620A

$1.49

12

ADJUSTER, BRAKE CABLE

57441-11010

$5.62

13

NUT

57442-11010

$2.79

14

BOLT | K,L; TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.28

14

BOLT | M This part replaces 01112-06208.

01500-06207

$2.28

15

CLUTCH LEVER ASSY | K,L

57500-28310

Unavailable

15

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 16 - 18 This part replaces 57500-11011.

57500-11012

Unavailable

16

LEVER, CLUTCH | K,L

57620-18011

Unavailable

16

LEVER, CLUTCH | M This part replaces 57620-31010.

57620-45010

Unavailable

17

BOLT

57431-10100

Unavailable

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

NUT | Includes Item(s) 20 - 23

57433-11010

$5.64

20

PIN This part replaces 04111-16158.

04111-1620A

$1.49

21

ADJUSTER, CLUTCH CABLE

57441-11010

$5.62

22

NUT

57442-11010

$2.79

23

BOLT | K,L This part replaces 57451-11010.

01500-06207

$2.28

23

BOLT | M This part replaces 01111-06208.

01500-06207

$2.28

24

COVER, CLUTCH LEVER | M This part replaces 57341-40000.

57341-40003

$5.56
