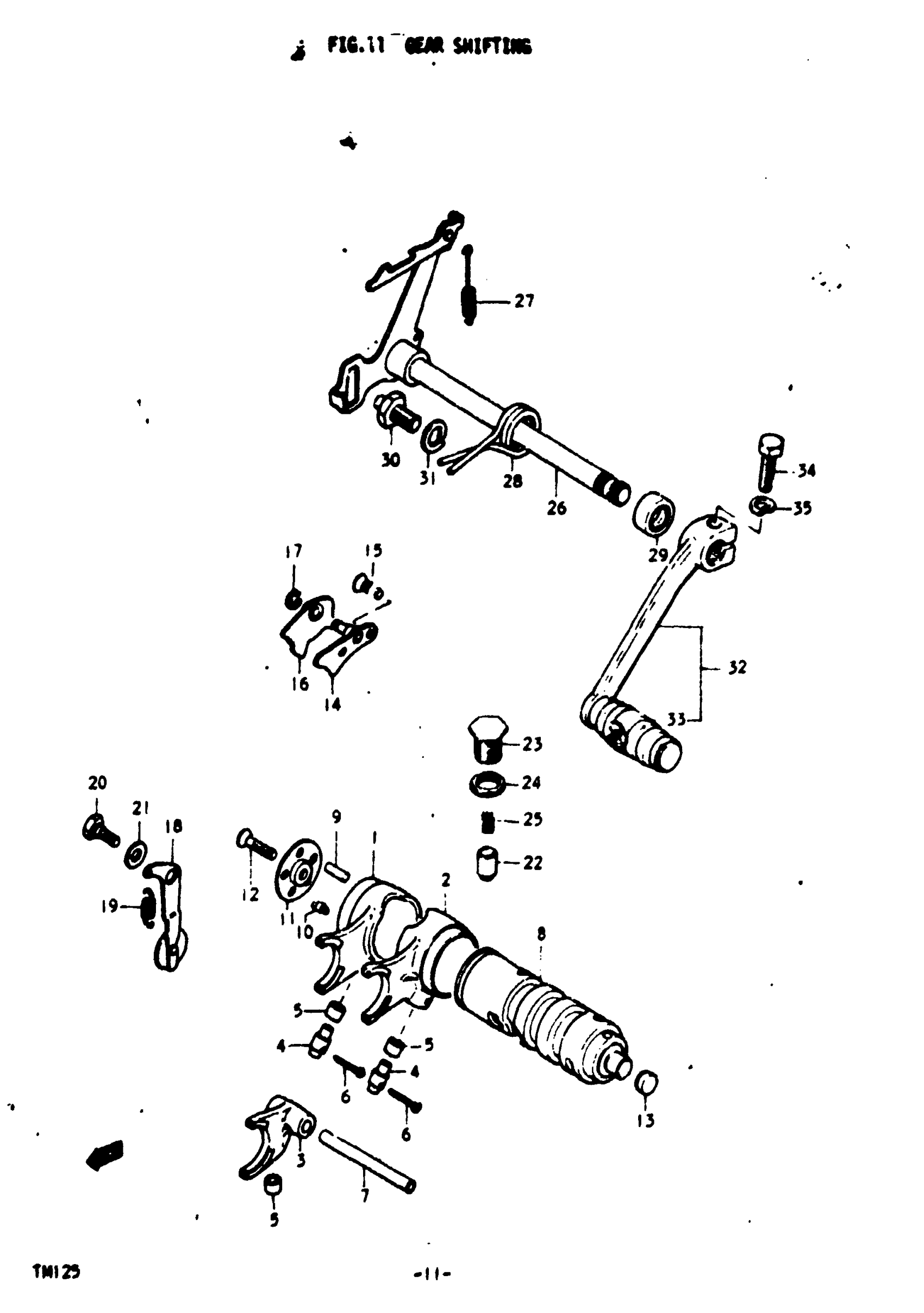

Suzuki TM125 (1975) GEAR SHIFTING Diagram

FORK,GEAR SHIFT This part replaces 25211-28001.

25211-28002

$87.70

FORK,GEAR SHIFT This part replaces 25221-28001.

25221-28002

Unavailable

FORK, GEAR SHIFTING NO.3

25231-28001

Unavailable

PIN

09209-10003

Unavailable

ROLLER This part replaces 09180-06004.

09180-06086

$2.50

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

SHAFT, GEAR SHIFTING

25411-05100

$5.50

CAM, GEAR SHIFTING

25310-28700

Unavailable

ROLLER (4X13.8)

09261-04002

$1.72

PIN

09209-04012

$2.53

PETAINER, DRIVE PIN

25322-28030

Unavailable

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

PLUG

09243-12002

Unavailable

GUIDE, GEAR SHIFTING CAM

25340-12101

Unavailable

SCREW This part replaces 02122-06168.

02122-06167

$1.49

PAWL, CAM STOPPER This part replaces 25370-12100.

25370-12101

Unavailable

E RING | K,L This part replaces 08332-11059.

08332-1105A

$1.78

STOPPER, GEAR SHIFTING CAM NO.

25350-28000

Unavailable

SPRING

09443-07014

$2.22

BOLT

09111-06003

Unavailable

WASHER

09160-06022

Unavailable

STOPPER, GEAR SHIFTING CAM NO.

25351-28700

Unavailable

HOUSING, CAM STOPPER

25352-28700

Unavailable

GASKET

09168-14004

$1.83

SPRING

09440-05017

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 25510-28300.

25510-283V0

Unavailable

SPRING

09443-06008

Unavailable

SPRING

09444-26008

$5.12

OIL SEAL (12X22X9) | 12x18.3x5 This part replaces 09285-12002.

09285-12006

$6.32

STOPPER, ARM

25671-19000

Unavailable

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

LEVER ASSY,GEAR | Includes Item(s) 33 This part replaces 25600-16500.

25600-16521

$49.59

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

BOLT This part replaces 01112-06208.

01500-06207

$2.28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
