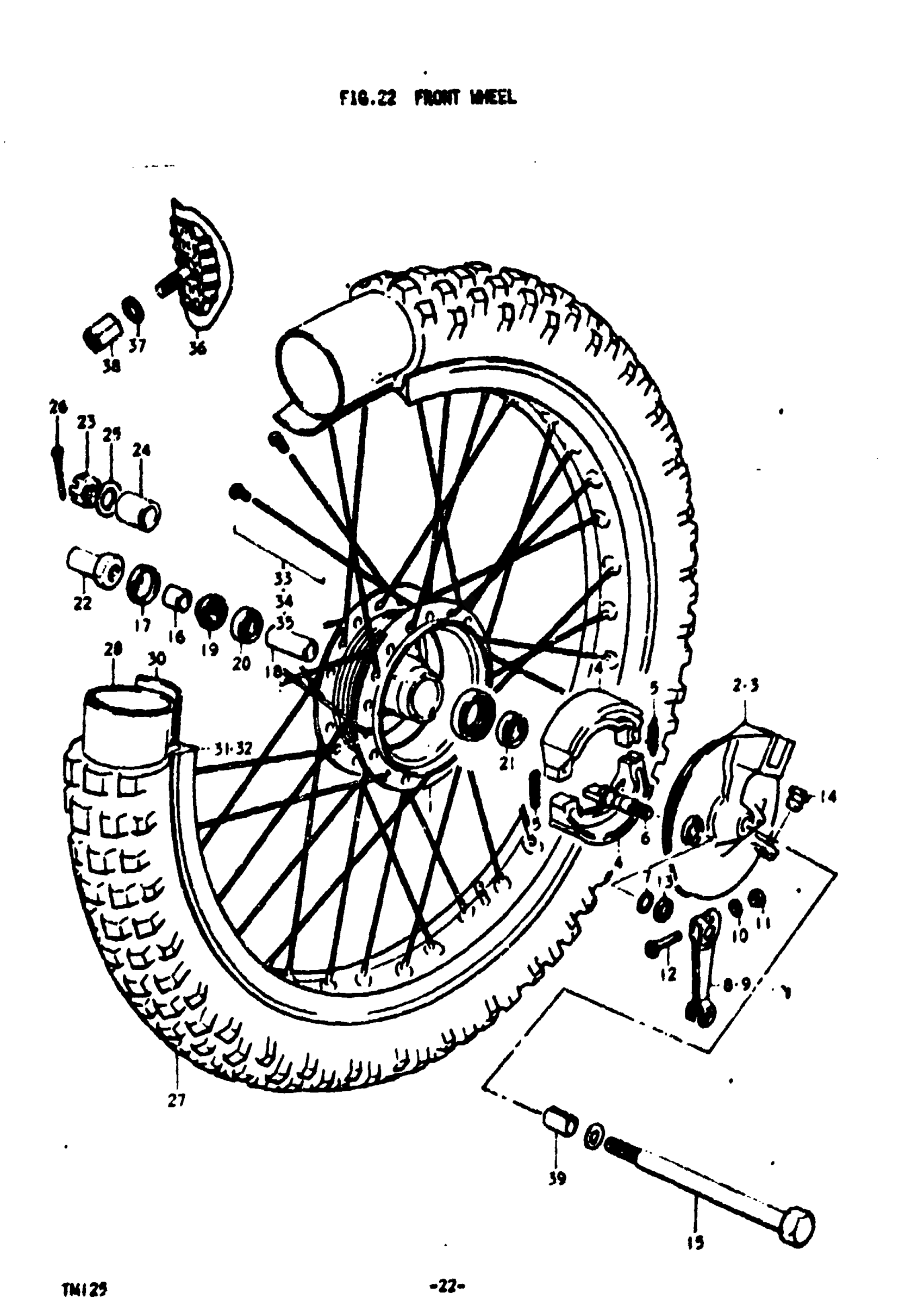

Suzuki TM125 (1975) FRONT WHEEL Diagram

#

Description
Price

0

FRONT WHEEL SET | K; INCLUDES REF .NOS.1, 17~19 & 25~29

54100-28830

Unavailable

0

FRONT WHEEL SET | L,M

54100-28831

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 54110-28301.

54110-28303

Unavailable

2

PANEL, FRONT HUB | K

54210-28300

Unavailable

3

PANEL, FRONT HUB | L; TO 54210-28302

54210-28301

Unavailable

3

PANEL, FRONT HUB | M

54210-28302

Unavailable

4

SHOE/SPRING SET | K,L; TO 54410-01005 This part replaces 54410-01004.

54400-35860

$36.32

4

SHOE/SPRING SET | M This part replaces 54410-01005.

54400-35860

$36.32

5

SPRING This part replaces 09443-07001.

09443-07025

$2.08

6

CAM, BRAKE | K,L

54441-28001

Unavailable

6

CAM, BRAKE | M This part replaces 54441-01001.

54441-01002

$18.80

7

DUST SEAL

09280-12001

$2.90

8

LEVER, BRAKE CAM | K

54451-03602

Unavailable

9

LEVER, BRAKE CAM | L,M

54451-03002

$16.87

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

13

WASHER | 12.5x20x1

09160-12011

$1.54

14

PLUG | K,L

09250-11003

$2.50

15

AXLE, FRONT | K,L; TO 54711-28301

54711-28300

Unavailable

15

AXLE, FRONT | M

54711-28303

Unavailable

16

SPACER | K,L; 12x18x16.4

09180-12040

$8.35

16

SPACER | M

09180-12052

Unavailable

17

COVER | K,L; TO 54892-28001

54892-28000

Unavailable

17

COVER | M

54892-25500

Unavailable

18

SPACER (12.5X19X52) | 12.5x25.4x52 This part replaces 09180-12041.

09180-12144

$10.30

19

SEAL,OIL (18X32X7) This part replaces 09284-18002.

09285-18002

$5.39

20

BEARING This part replaces 08113-62010.

08113-6201B

$10.15

21

BEARING This part replaces 08143-62010.

08143-6201B

$10.80

22

NUT | K

54721-36000

Unavailable

23

NUT | L,M This part replaces 08314-41128.

08314-4012A

$2.50

24

SPACER | M

09180-12064

Unavailable

25

WASHER | M This part replaces 08322-21128.

08322-01127

$1.84

26

PIN | M This part replaces 04111-30308.

04111-3030A

$1.49

27

TIRE, FRONT | K,L; 5.00-21 TO 55100-16511

55100-16510

Unavailable

27

TIRE, FRONT (3.00-21) | M This part replaces 55100-16511.

55100-14230

Unavailable

28

TUBE | K; 3.00-21 This part replaces 55200-15010.

55200-44611

$33.73

29

TIRE, FRONT | L,M; 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

30

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

31

RIM, WHEEL | K; 1.60Ax21

55311-16500

Unavailable

32

RIM, WHEEL | L; 1.60Ax21 TO 55311-28322

55311-16501

Unavailable

32

RIM, WHEEL | M; TAKASAGO

55311-28322

Unavailable

33

SPOKE SET | K,L

55300-28808

Unavailable

34

SPOKE SET | M; USED TO TAKASAGO This part replaces 55300-28850.

55320-28700

Unavailable

35

SPOKE SET | M; USE TO AKRONT

55300-28860

Unavailable

36

STOPPER, BEAD This part replaces 65270-30000.

65270-43D00

$58.75

37

WASHER This part replaces 08322-21088.

08322-01087

$2.13

38

NUT

09159-08016

Unavailable

39

SPACER | K,L This part replaces 54751-28300.

09180-12064

Unavailable
