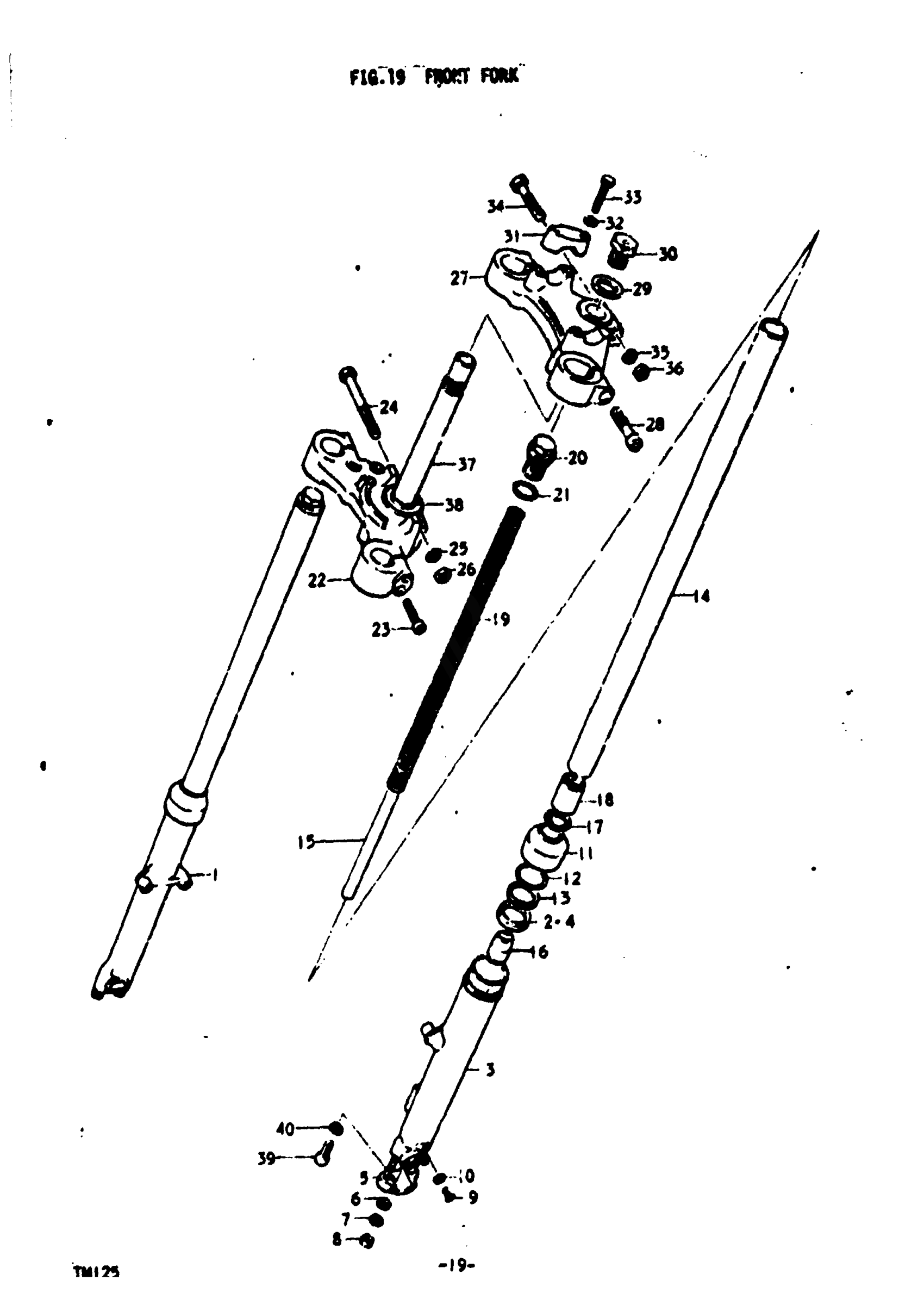

Suzuki TM125 (1975) FRONT FORK Diagram

#

Description
Price

0

FRONT FORK ASSY | K; Includes Item(s) 1 - 40

51100-28310

Unavailable

1

OUTER TUBE, RH | K

51130-36010

Unavailable

2

OIL SEAL | K

51153-08011

Unavailable

3

OUTER TUBE, LH | K

51140-36010

Unavailable

4

OIL SEAL | K

51153-08011

Unavailable

5

BRACKET, FRONT EXLE | K

51132-16510

Unavailable

6

WASHER | K This part replaces 08322-21088.

08322-01087

$2.13

7

.LOCK WASHER | K This part replaces 08321-21088.

08321-01087

$2.13

8

NUT | K This part replaces 08311-11088.

08310-00087

$2.13

9

SCREW | K This part replaces 02111-04087.

02112-04087

$1.49

10

GASKET, DRAIN PLUG | K

51183-03010

$2.07

11

DUST SEAL | K

51173-25010

$7.19

12

RING | K

51156-36010

Unavailable

13

WASHER | K

51158-36010

Unavailable

14

INNER TUBE | K

51111-28310

Unavailable

15

CYLINDER | K

51146-28310

Unavailable

16

STEM, OIL LOCK | K

51195-28310

Unavailable

17

CIRCLIP | K

51118-28310

Unavailable

18

PISTON | K

51112-28310

Unavailable

19

SPRING | K

51171-28310

Unavailable

20

CAP | K

51351-25010

Unavailable

21

O RING | K This part replaces 51181-25010.

51181-29401

$3.37

22

STEERING STEM | K

51411-28310

Unavailable

23

BOLT | K

51456-28310

Unavailable

24

BOLT | K This part replaces 01122-10608.

01500-1060A

$4.41

25

LOCK WASHER | K This part replaces 08321-21108.

08321-01107

$1.84

26

NUT | K This part replaces 08312-11108.

08310-00107

$2.19

27

STEERING STEM HEAD | K

51311-28310

Unavailable

28

BOLT, STEERING STEM HEAD | K

09106-10001

Unavailable

29

WASHER, CENTER | K

51356-28310

Unavailable

30

BOLT | K

51351-28310

Unavailable

31

CLAMP, HANDLEBAR | K

56211-27110

Unavailable

32

.LOCK WASHER | K This part replaces 08321-21088.

08321-01087

$2.13

33

BOLT | K This part replaces 01221-08357.

01204-08357

$2.09

34

BOLT | K This part replaces 01122-10508.

01500-1050A

$3.78

35

LOCK WASHER | K This part replaces 08321-21108.

08321-01107

$1.84

36

NUT | K This part replaces 08312-11108.

08310-00107

$2.19

37

SHAFT, STEERING | K

51401-28310

Unavailable

38

OUTER RACE | K

51621-33001

$16.25

39

BOLT | K

51147-36010

Unavailable

40

O RING | K This part replaces 51148-34010.

51148-36011

$3.56
