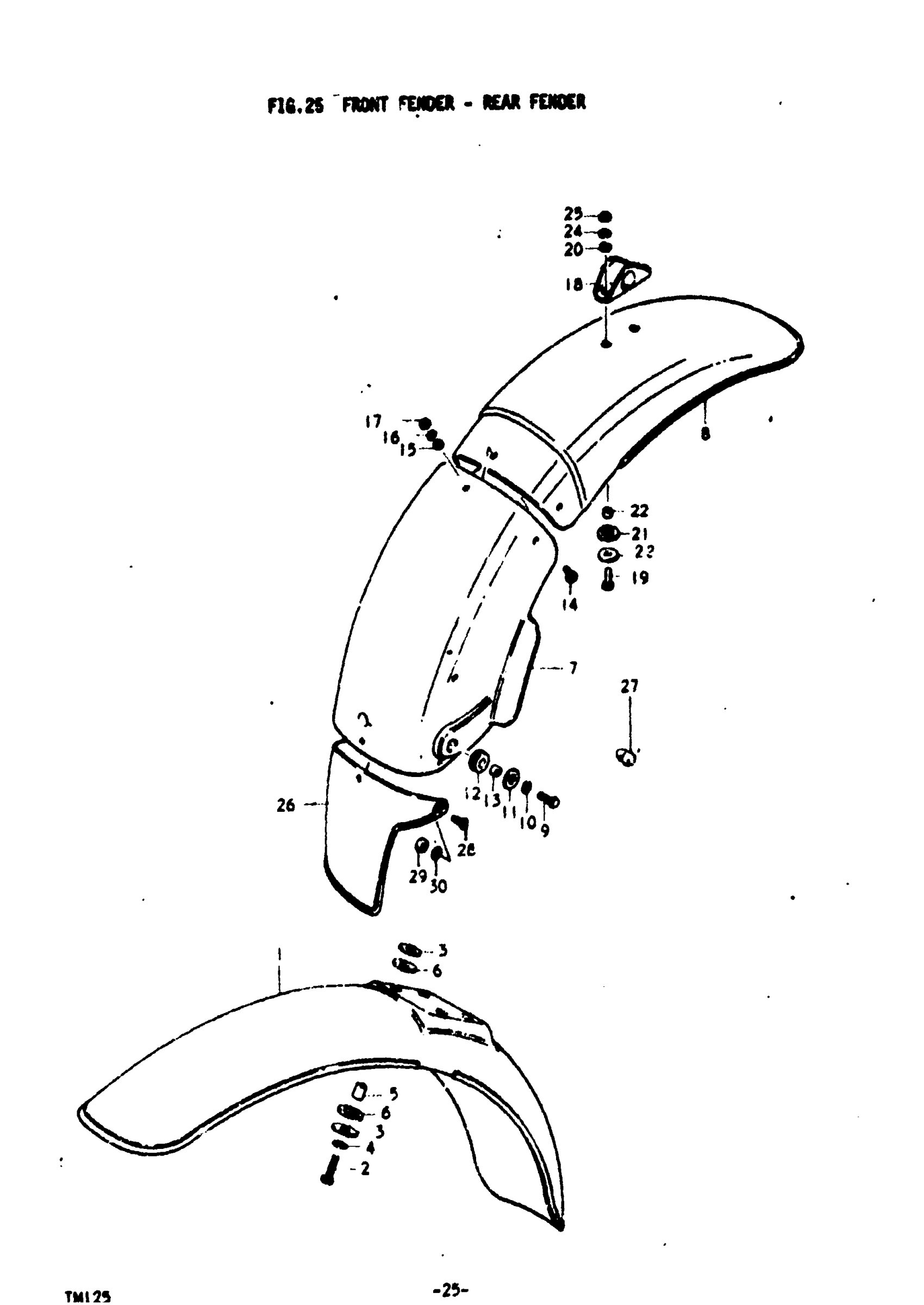

Suzuki TM125 (1975) FRONT FENDER - REAR FENDER Diagram

FENDER, FRONT

53111-28300-163

Unavailable

BOLT This part replaces 01112-06258.

01500-06257

$1.97

WASHER (6.5X24X1.2) | 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

$2.03

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

SPACER | 6.5x10.5x13.5 This part replaces 09180-06046.

09180-06292

$2.47

CUSHION

09320-10003

$2.38

BODY, REAR FENDER FRONT | K,L; TO 63112-28301-163

63112-28300-163

Unavailable

BODY, REAR FENDER FRONT | M

63112-28301-163

Unavailable

BODY, REAR FENDER REAR This part replaces 63113-28300-163.

63113-41000-163

Unavailable

BOLT This part replaces 01112-06208.

01500-06207

$2.28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

SPACER | 6.1x9x7.5

09180-06038

$1.98

SCREW This part replaces 02141-05127.

02142-05127

$1.97

WASHER This part replaces 08322-11058.

08322-01057

$2.13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

NUT This part replaces 08311-11058.

08310-00057

$1.84

BRACE, REAR FENDER

63140-28300

Unavailable

BOLT

09100-06064

$1.61

WASHER This part replaces 08322-21068.

08322-01067

$2.13

CUSHION

09320-09003

$2.23

SPACER (6.5X10X7) | 6.8x10x7 This part replaces 09180-06002.

09180-06283

$1.91

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

$1.84

MUD GUARD

63411-30002

Unavailable

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

SCREW This part replaces 02141-05107.

02142-05107

$1.49

NUT

08311-21058

Unavailable

WASHER This part replaces 08322-21058.

08322-01057

$2.13
