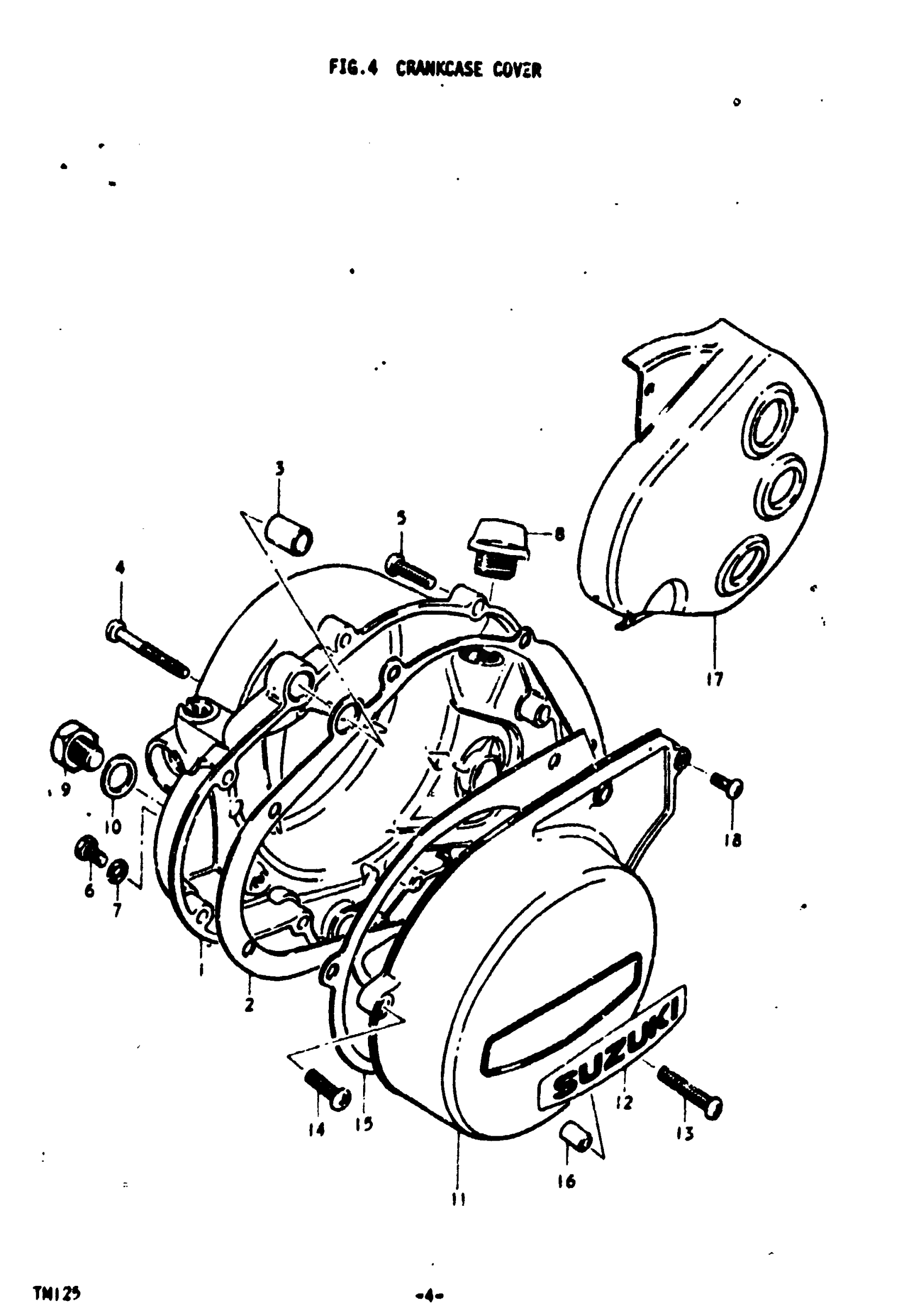

Suzuki TM125 (1975) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | K; TO 11300-28860

11341-28301

Unavailable

1

COVER, CLUTCH | L,M

11300-28860

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-28000.

11482-28001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW This part replaces 02112-06258.

02112-06257

$1.78

6

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

7

GASKET

09168-06001

$1.49

8

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

9

PLUG (MAGNETO) | K,L This part replaces 09247-14001.

09247-14002

$5.24

9

PLUG, OIL DRAIN | M

09247-10001

$2.20

10

GASKET | L,M

09168-14004

$1.83

11

COVER, MAGNETO

11351-28300

Unavailable

12

EMBLEM, MAGNETO COVER

68233-28300

Unavailable

13

SCREW

02112-06307

$1.97

14

SCREW This part replaces 02112-06208.

02112-06207

$1.78

15

GASKET, MAGNETO COVER

11483-28000

Unavailable

16

PIN

04211-09129

$1.65

17

COVER, ENGINE SPROCKET | K; TO 11360-28300

11361-28300

Unavailable

17

COVER, ENGINE SPROCKET | L,M

11360-28300

Unavailable

18

SCREW This part replaces 02111-05108.

02112-05107

$1.49
