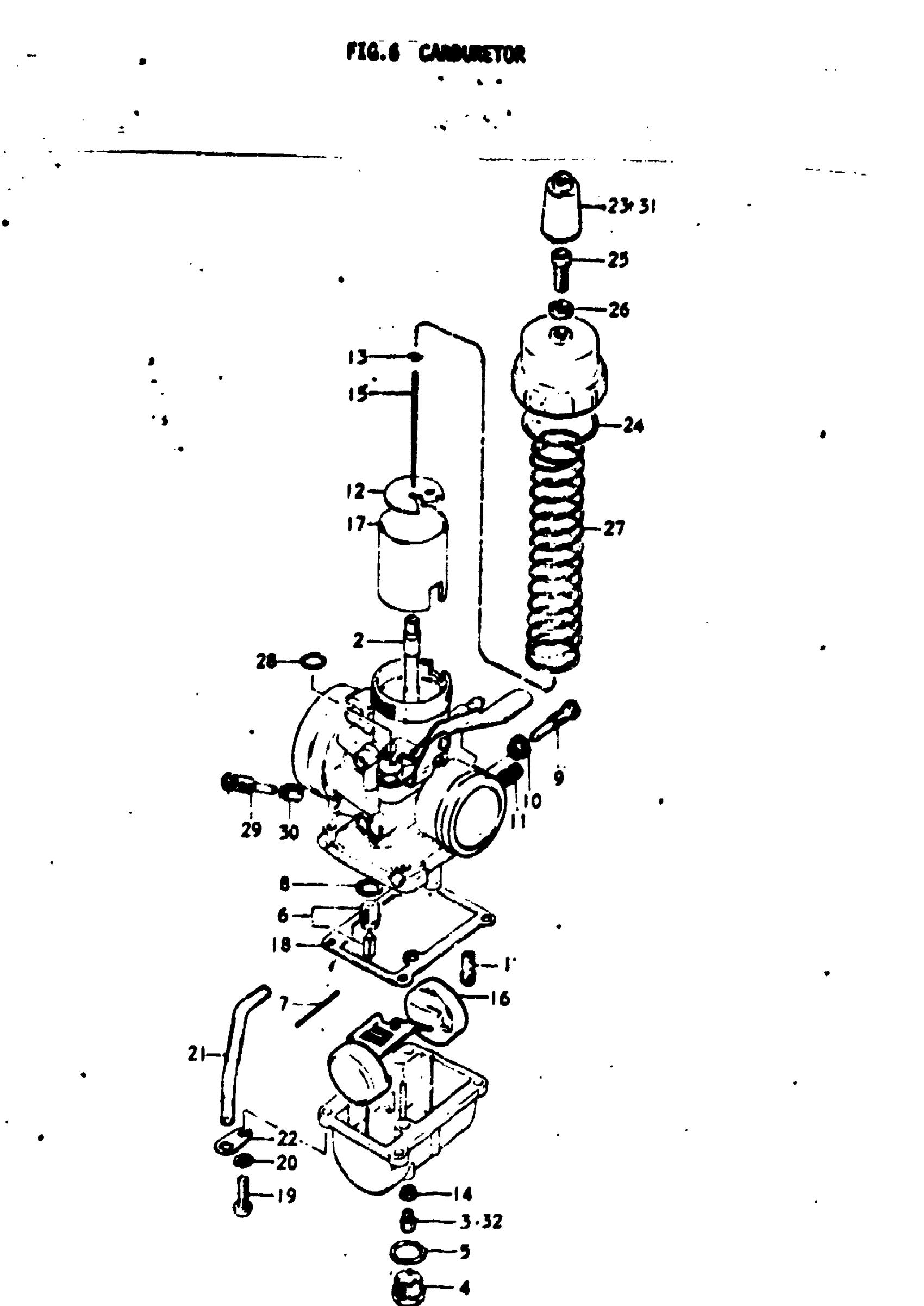

Suzuki TM125 (1975) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | K

13200-28620

Unavailable

0

CARBURETOR ASSY | L

13200-28630

Unavailable

0

CARBURETOR ASSY | M; Includes Item(s) 1 - 30

13200-28631

Unavailable

1

JET, PILOT (30) | #30 This part replaces 09492-30003.

09492-30006

$9.55

2

JET, NEEDLE | 0-4

09494-00117

Unavailable

3

JET, MAIN (120) | L,M; #120 This part replaces 09491-24002.

09491-24014

Unavailable

3

JET, MAIN | K; #125 This part replaces 09491-25004.

09491-25009

Unavailable

4

PLUG, DRAIN

13247-28310

Unavailable

5

GASKET, DRAIN PLUG

13249-28310

Unavailable

6

VALVE ASSY, NEEDLE

13370-29700

Unavailable

7

PIN, FLOAT

13254-11010

Unavailable

8

GASKET, NEEDLE VALVE

13392-58600

$1.82

9

SCREW, THROTTLE STOP This part replaces 13267-15110.

13267-40230

$9.85

10

NUT

13662-16510

Unavailable

11

SPRING | K

13268-03110

$5.45

12

SEAT, THROTTLE SPRING

13581-28700

Unavailable

13

CLIP, NEEDLE

13394-10010

$5.45

14

RING | L,M

13331-28710

Unavailable

14

RING | K; TO 13331-28710

13382-28310

Unavailable

15

NEEDLE | 5DP7-3

13383-28700

Unavailable

16

FLOAT

13252-28310

Unavailable

17

VALVE, THROTTLE | CA:2.0

13551-34611

Unavailable

18

GASKET, FLOAT CHAMBER

13251-28700

Unavailable

19

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

20

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

21

HOSE | 3x5x100 This part replaces 13684-30010.

13684-40A00

$9.58

22

PLATE

13693-30010

$6.55

23

CAP | K,L

13681-31010

Unavailable

24

O RING

13295-34600

Unavailable

25

ADJUSTER, CABLE

13577-31010

Unavailable

26

NUT

13661-31010

Unavailable

27

SPRING, THROTTLE VALVE

13573-28310

Unavailable

28

O RING, STARTER VALVE

13420-20010

Unavailable

29

SCREW, PILOT AIR

13269-15010

Unavailable

30

SPRING

13268-01010

$5.28

31

CAP, ADJUSTER | K

13681-28300

Unavailable

31

CAP, ADJUSTER | L,M

13681-31010

Unavailable

32

JET, MAIN (115) | L,M; #115 OPT This part replaces 09491-23008.

09491-23010

Unavailable

32

JET, MAIN (120) | K; #120 OPT This part replaces 09491-24002.

09491-24014

Unavailable

32

JET, MAIN | #130 OPT

09491-26003

$9.85

32

JET,MAIN #135 | #135 OPT This part replaces 09491-27005.

09491-27015

Unavailable

32

JET, MAIN | #140 OPT This part replaces 09491-28002.

09491-28009

Unavailable

32

JET, MAIN | #145 OPT

09491-29002

$10.80
