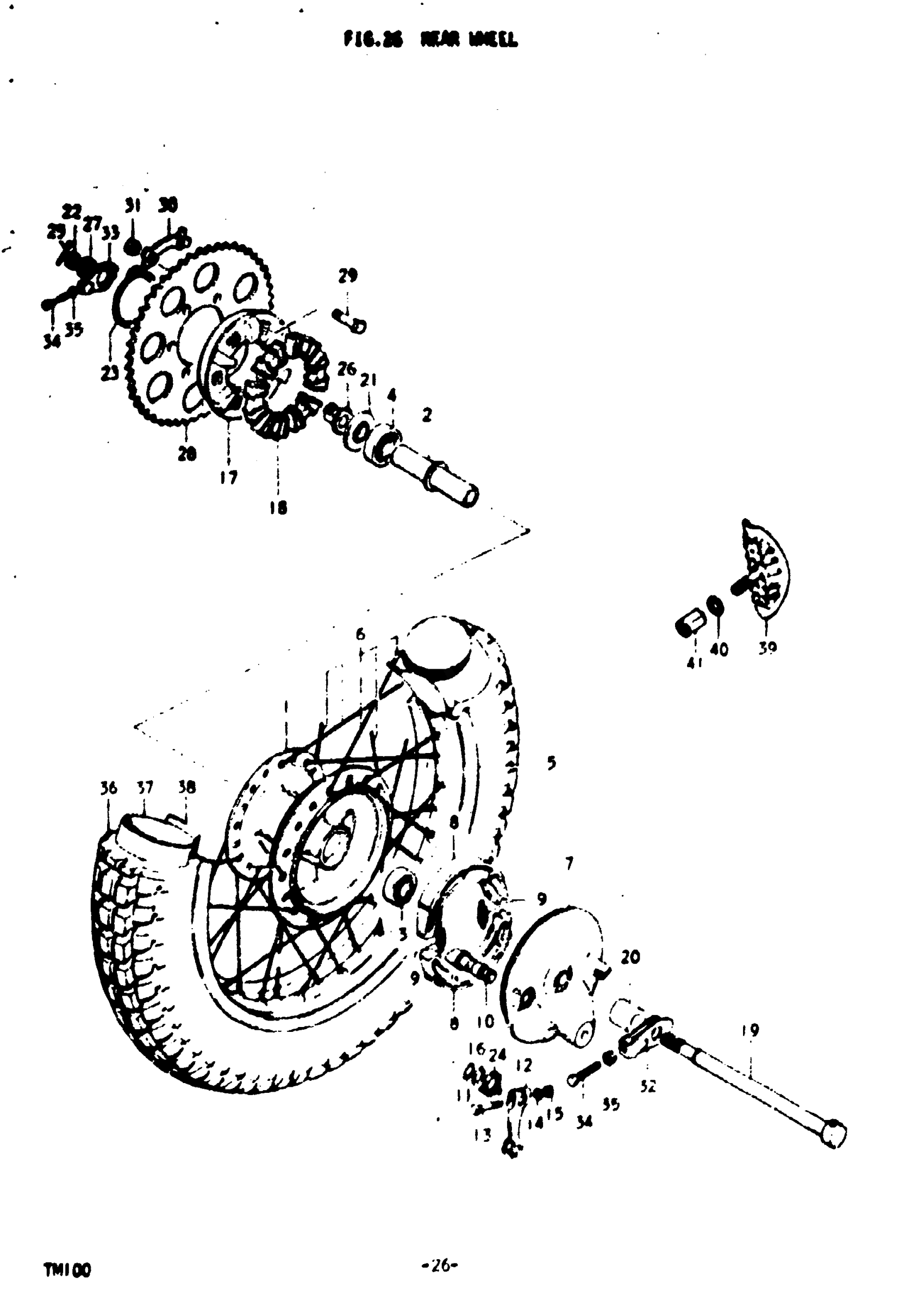

Suzuki TM100 (1975) REAR WHEEL Diagram

#

Description
Price

0

WHEEL SET, REAR | L; TO 64100-28842

64100-16850

Unavailable

0

WHEEL SET, REAR | M; Includes Item(s) 1 - 6

64100-28842

Unavailable

1

DRUM, REAR HUB | L; TO 64110-28301

64110-28300

Unavailable

1

DRUM, REAR HUB | M

64110-28301

Unavailable

2

SPACER, HUB BEARING | L; TO 64730-28000

64730-38000

Unavailable

2

SPACER, HUB BEARING | M

64730-28000

Unavailable

3

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

4

BEARING This part replaces 08123-63020.

08123-6302B

$22.74

5

RIM, WHEEL | L; TO 65311-28322 USE WITH 65300-28860

65311-16501

Unavailable

5

RIM, WHEEL | M

65311-28322

Unavailable

6

SPOKE SET | L; TO 65300-28870 This part replaces 65300-28850.

65300-28870

Unavailable

6

SPOKE SET | M

65300-28860

Unavailable

7

PANEL, REAR HUB | L; TO 64210-28303

64210-28302

Unavailable

7

PANEL, HUB | M This part replaces 64210-28303.

64210-28004

Unavailable

8

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

9

SPRING This part replaces 09443-07001.

09443-07025

$2.08

10

CAM, BRAKE | L; TO 54441-01002

54441-07001

Unavailable

10

CAM, BRAKE | M

54441-01002

$18.80

11

DUST SEAL

09280-12001

$2.90

12

LEVER, BRAKE CAM

64451-28000

Unavailable

13

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

WASHER | 12.5x20x1

09160-12011

$1.54

17

DRUM, SPROCKET MOUNTING

64610-28300

Unavailable

18

ASBORBER, HUB DRUM | L; TO 64650-28002 This part replaces 64650-28001.

64650-28002

Unavailable

18

CUSHION, HUB | M

64650-28002

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 64711-28001.

64711-4130V

Unavailable

20

SPACER, RH | 15.2x26x26 This part replaces 09180-15010.

09180-15038

$7.77

21

SPACER, AXLE LH

64750-28000

Unavailable

22

NUT This part replaces 08314-31128.

08314-3112A

$2.41

23

CIRCLIP This part replaces 08331-11558.

08331-31559

$6.20

24

SPRING

09448-27003

Unavailable

25

PIN This part replaces 04111-30308.

04111-3030A

$1.49

26

SPACER, CHAIN ADJUSTER

64791-28001

$23.32

27

NUT This part replaces 09140-18001.

09140-18501

$2.93

28

SPROCKET, REAR | N:64 #428

64511-28741

Unavailable

28

SPROCKET, REAR | L; NT:58 OPT

64511-28721

Unavailable

28

NO DESCRIPTION AVAILABLE | NT:61 OPT This part replaces 64511-28731.

64511-28301

Unavailable

28

SPROCKET, REAR | NT:67 OPT

64511-28751

Unavailable

29

BOLT

09105-08006

Unavailable

30

WASHER

09169-08013

$2.23

31

NUT This part replaces 08312-31088.

08310-00087

$2.13

32

ADJUSTER,CHAIN, This part replaces 61410-28002.

61410-28005

$10.09

33

LH CHAIN ADJUST This part replaces 61420-28002.

61420-28004

$11.48

34

BOLT This part replaces 09100-08099.

09100-08146

$2.82

35

NUT This part replaces 08312-11088.

08310-00087

$2.13

36

TIRE | 3.50-18

65100-28310

Unavailable

37

TUBE ASSY, WHEEL INNER | 3.50-18 This part replaces 65200-18010.

65200-44AA0

$53.43

38

PROTECTOR, INNER TUBE | 25x18 This part replaces 65261-16510.

65261-33030

$5.50

39

STOPPER, BEAD This part replaces 65270-30000.

65270-43D00

$58.75

40

WASHER This part replaces 08322-21088.

08322-01087

$2.13

41

NUT

09159-08016

Unavailable
