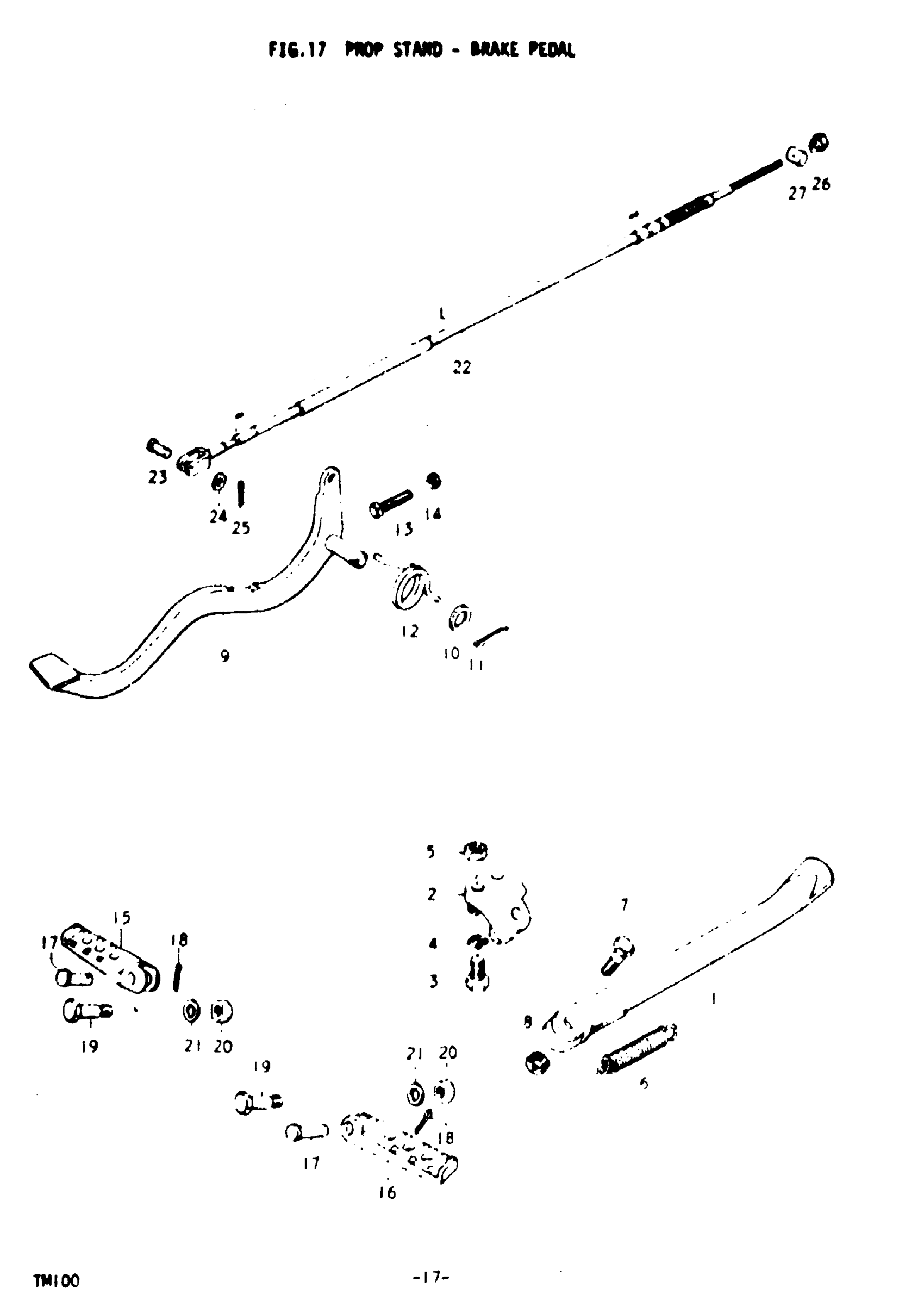

Suzuki TM100 (1975) PROP STAND - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, PROP | L

42310-25000

Unavailable

1

STAND, PROP | M This part replaces 42310-16500.

42310-41100

Unavailable

2

BRACKET, PROP STAND

42330-32100

Unavailable

3

BOLT This part replaces 01122-10258.

01500-10257

$3.85

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

NUT This part replaces 08312-31108.

08310-00107

$2.19

6

SPRING This part replaces 09443-14005.

09443-14017

$3.04

7

BOLT

09100-10067

$2.61

8

NUT This part replaces 08312-31108.

08310-00107

$2.19

9

PEDAL, BRAKE | TO 43110-28301 This part replaces 43110-28300.

43110-28301

Unavailable

10

WASHER This part replaces 08322-11128.

08322-01127

$1.84

11

PIN This part replaces 04111-30208.

04111-3020A

$1.50

12

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

13

BOLT

09100-06003

Unavailable

14

.NUT This part replaces 08311-11068.

08310-00067

$2.13

15

FOOTREST, RH

43511-30100

Unavailable

16

FOOTREST, LH

43521-30100

Unavailable

17

PIN | L

04322-08308

Unavailable

18

.COTTER PIN | L This part replaces 04111-20158.

04111-2015A

$1.49

19

BOLT | M

09111-06018

Unavailable

20

.NUT | M This part replaces 08311-11068.

08310-00067

$2.13

21

WASHER | M This part replaces 08322-21068.

08322-01067

$2.13

22

CABLE ASSY, REAR BRAKE | L; L: 395 TO 58510-28000 This part replaces 58510-28300.

58510-28000

Unavailable

22

CABLE, REAR BRAKE | M; L: 420

58510-28000

Unavailable

23

PIN

09200-05001

$1.65

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

26

NUT

09150-05001

Unavailable

27

PIN

09209-11002

$2.19
