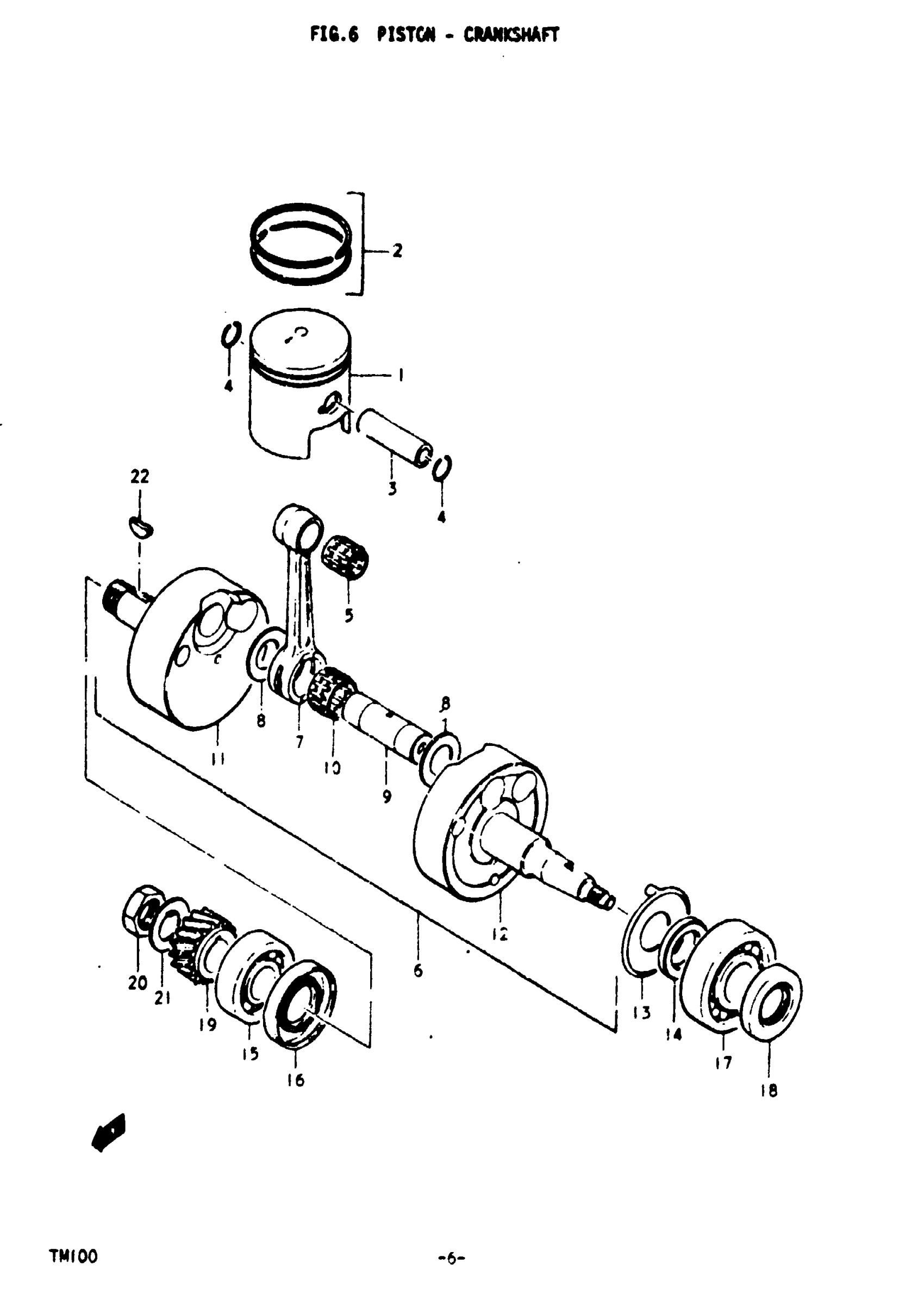

Suzuki TM100 (1975) PISTON - Diagram

#

Description
Price

1

PISTON | L; TO 12110-28611

12110-28610

Unavailable

1

PISTON | M

12110-28611

Unavailable

1

NO DESCRIPTION AVAILABLE | OS:0.5, OPT This part replaces 12110-28620.

12110-28614-050

Unavailable

2

RING SET, PISTON

12140-28630

$40.22

2

RING SET, PISTON | OS:0.5, OPT This part replaces 12140-28640.

12140-28630-050

$40.98

3

PIN,PISTON This part replaces 12151-07000.

12151-23400-0A0

$8.67

4

RING

09381-14001

$1.49

5

ROLLR BRG,14X18 This part replaces 09263-14004.

09263-14022

$11.97

6

CRANKSHAFT ASSY | L; TO 12200-28300

12200-28830

Unavailable

6

CRANKSHAFT ASSY | M; Includes Item(s) 7 - 12

12200-28300

Unavailable

7

CONNECTING ROD This part replaces 12161-12000.

12161-39300

$69.47

8

THRUST WASHER | L; 19x32x1 TO 09160-19002

09160-19001

$3.27

8

THRUST WASHER | M; 19x33x1 This part replaces 09160-19002.

09160-19001

$3.27

9

PIN, CRANK

12211-28000

Unavailable

10

BEARING | L; TO 09263-19007 This part replaces 09263-19003.

09263-19009

$16.75

10

BEARING | M This part replaces 09263-19007.

09263-19009

$16.75

11

CRANKSHAFT, RH

12221-28001

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 12261-28002.

12261-41001

Unavailable

13

PLATE, OIL GUIDE

12511-28002

Unavailable

14

SPACER | 25x36x3

09180-25041

Unavailable

15

BEARING, COUNTER SHAFT | 20x52x15 This part replaces 09262-20009.

09262-20073

$23.28

16

OIL SEAL | 26x52x8

09283-26007

$7.37

17

BEARING | 25x62x17

09269-25013

$47.70

18

OIL SEAL, LH | 25x44x7 This part replaces 09283-25037.

09283-25066

$7.50

19

GEAR, PRIMARY DRIVE | NT:17

21111-28700

Unavailable

20

NUT

09140-18002

$3.87

21

WASHER | 18x62x0.8

09166-18001

$2.71

22

KEY

08341-31059

$2.48
