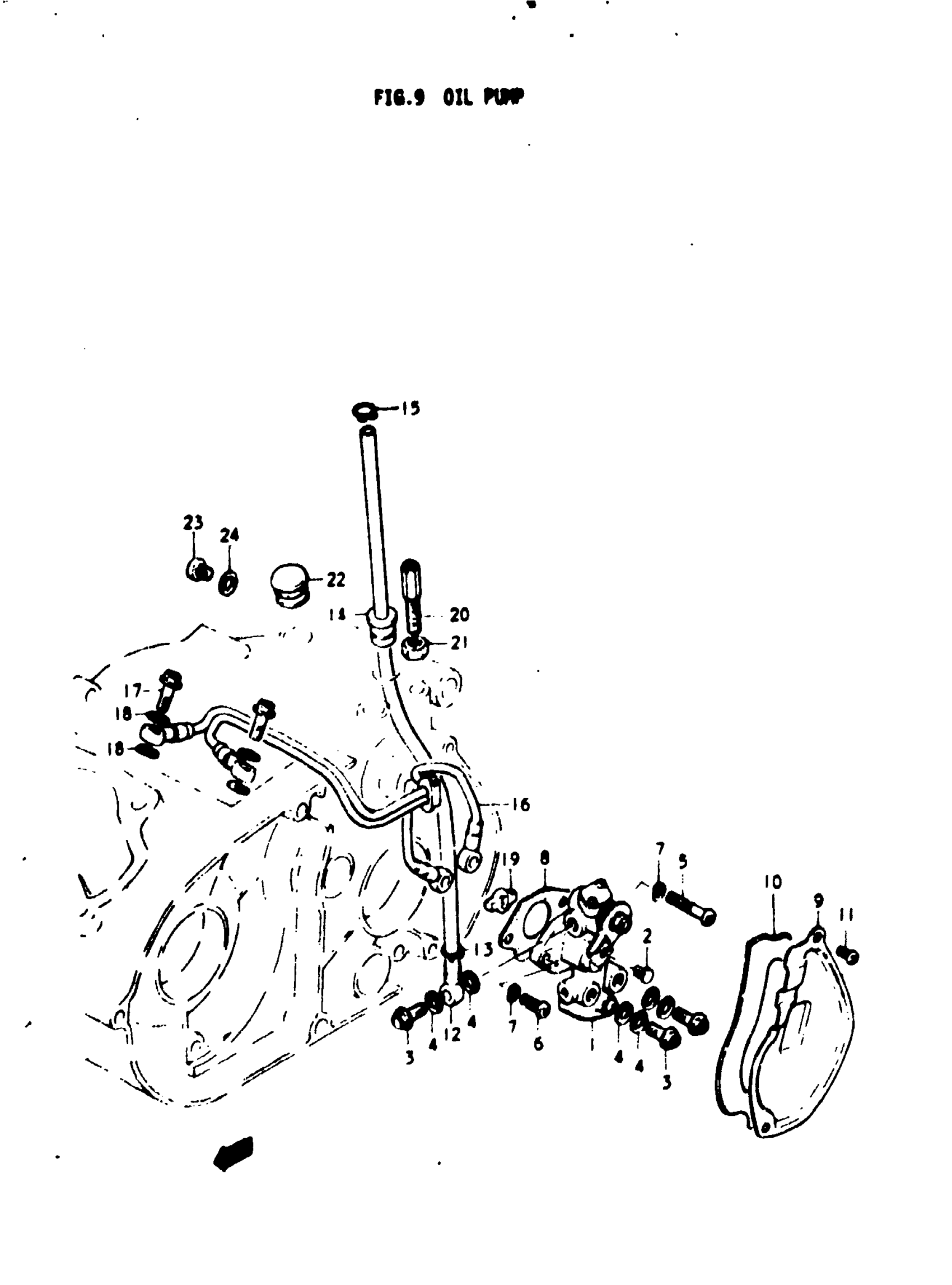

Suzuki TM100 (1975) OIL PUMP Diagram

#

Description
Price

1

OIL PUMP SET | L; INCLUDES REF. NOS. 2~4 TO 16100-28310

16100-28840

Unavailable

1

OIL PUMP ASSY | M; FROM 16100-28840

16100-28310

Unavailable

2

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$5.05

3

UNION BOLT

09360-06003

$3.76

4

GASKET This part replaces 09168-06002.

09168-06004

$1.49

5

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

9

CAP, OIL PUMP INSPECTION

11380-27300

$8.12

10

GASKET, OIL PUMP INSPECTION

11494-27300

Unavailable

11

SCREW This part replaces 02112-06108.

02112-06107

$1.49

12

HOSE, OIL INLET

16810-28300

Unavailable

13

CLIP

09401-08401

$1.54

14

GROMMET

09305-09002

Unavailable

15

CLIP

09401-08401

$1.54

16

HOSE, OIL OUTLET

16820-28030

Unavailable

17

UNION BOLT

09360-06003

$3.76

18

GASKET This part replaces 09168-06002.

09168-06004

$1.49

19

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

$3.65

20

BOLT

09119-08014

$3.55

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

$2.25

23

SCREW This part replaces 02112-06068.

02112-06067

$1.93

24

WASHER | L This part replaces 08322-21068.

08322-01067

$2.13
