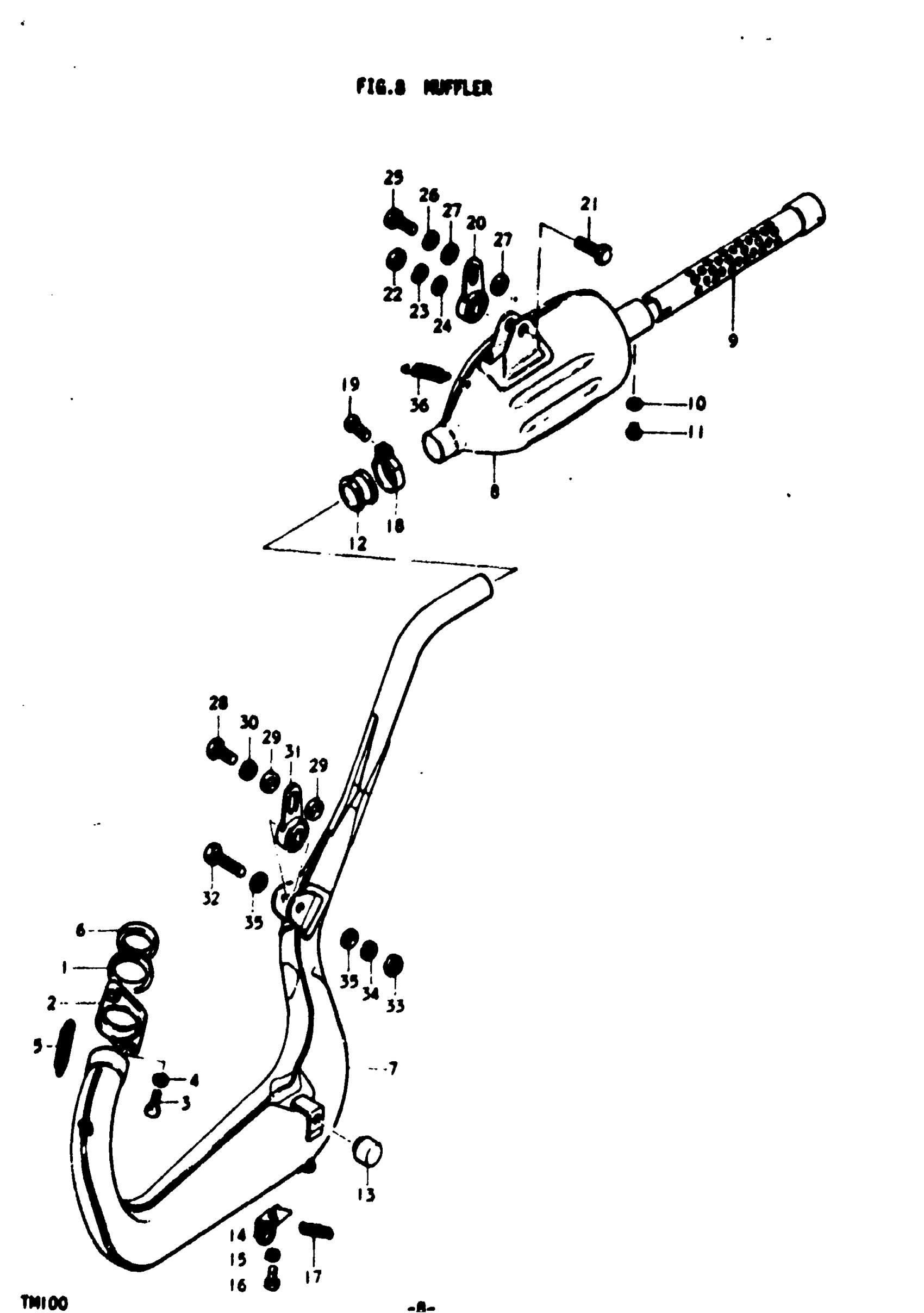

Suzuki TM100 (1975) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-28080

$10.11

2

CLAMP, EXHAUST PIPE

14182-28000

$16.49

3

BOLT This part replaces 01112-06258.

01500-06257

$1.97

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

SPRING

09443-11002

$3.10

6

CUSHION,EXH PIP This part replaces 14184-28010.

14184-28011

$4.62

7

MUFFLER | L; TO 14310-28651 This part replaces 14310-28650.

14310-28651

Unavailable

7

MUFFLER | M

14310-28651

Unavailable

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 9 - 11 This part replaces 14303-28631.

14303-28631-H01

Unavailable

9

PIPE, BUFFLE

14510-28631

Unavailable

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

SCREW

09128-06013

$1.49

12

CONNECTOR, MUFFLER

14771-28600

Unavailable

13

CUSHION

09321-10002

$2.22

14

BRACKET, MUFFLER STOPPER

14476-28000

Unavailable

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

BOLT This part replaces 01112-06108.

01500-06107

$2.06

17

SPRING

09443-14002

$2.12

18

CLAMP

09402-31601

Unavailable

19

SCREW

02111-06168

Unavailable

20

DAMPER, REAR This part replaces 14770-16440.

14700-40810

Unavailable

21

BOLT This part replaces 01122-08308.

01500-08307

$3.04

22

NUT This part replaces 08312-11088.

08310-00087

$2.13

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

WASHER This part replaces 08322-21088.

08322-01087

$2.13

28

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

29

WASHER This part replaces 08322-21088.

08322-01087

$2.13

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

DAMPER, REAR This part replaces 14770-16440.

14700-40810

Unavailable

32

BOLT This part replaces 01122-08358.

01500-0835B

$3.04

33

NUT This part replaces 08312-11088.

08310-00087

$2.13

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

35

WASHER This part replaces 08322-11088.

08322-01087

$2.13

36

SPRING | M

09443-11002

$3.10
