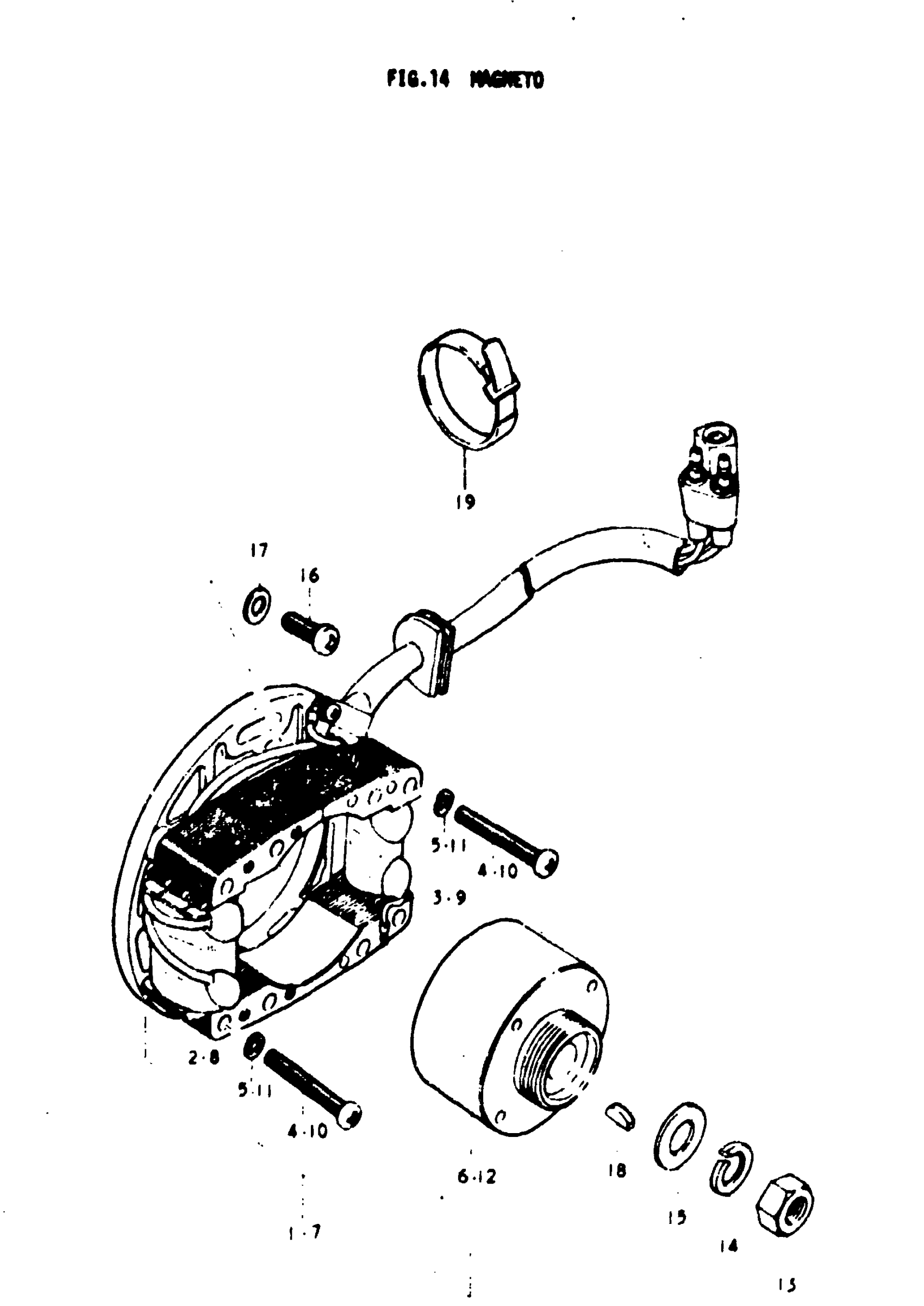

Suzuki TM100 (1975) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | KOKUSAN; Includes Item(s) 2 - 6

32100-28300

Unavailable

2

COIL, PRIMARY

32140-28300

Unavailable

3

COIL, PULSER

32150-28300

Unavailable

4

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

ROTOR This part replaces 32102-28300.

32102-28301

Unavailable

7

NO DESCRIPTION AVAILABLE | NIPPON DENSO; Includes Item(s) 8 - 12 This part replaces 32100-28600.

32100-28601

Unavailable

8

COIL,PRIMARY

32140-28600

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 32150-28600.

32150-28601

Unavailable

10

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

11

LOCK WASHER | LM This part replaces 08321-21058.

08321-0105A

$1.84

12

NO DESCRIPTION AVAILABLE This part replaces 32102-28600.

32102-28601

Unavailable

13

NUT This part replaces 09140-10003.

09140-10041

$2.38

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15

16

SCREW

02111-06168

Unavailable

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

KEY

08341-31039

$1.89

19

CLAMP | L:140 This part replaces 09407-14301.

09407-18302

$2.28

19

CLAMP | L; L:110 FROM 09407-14301 This part replaces 09407-11302.

09407-18302

$2.28
