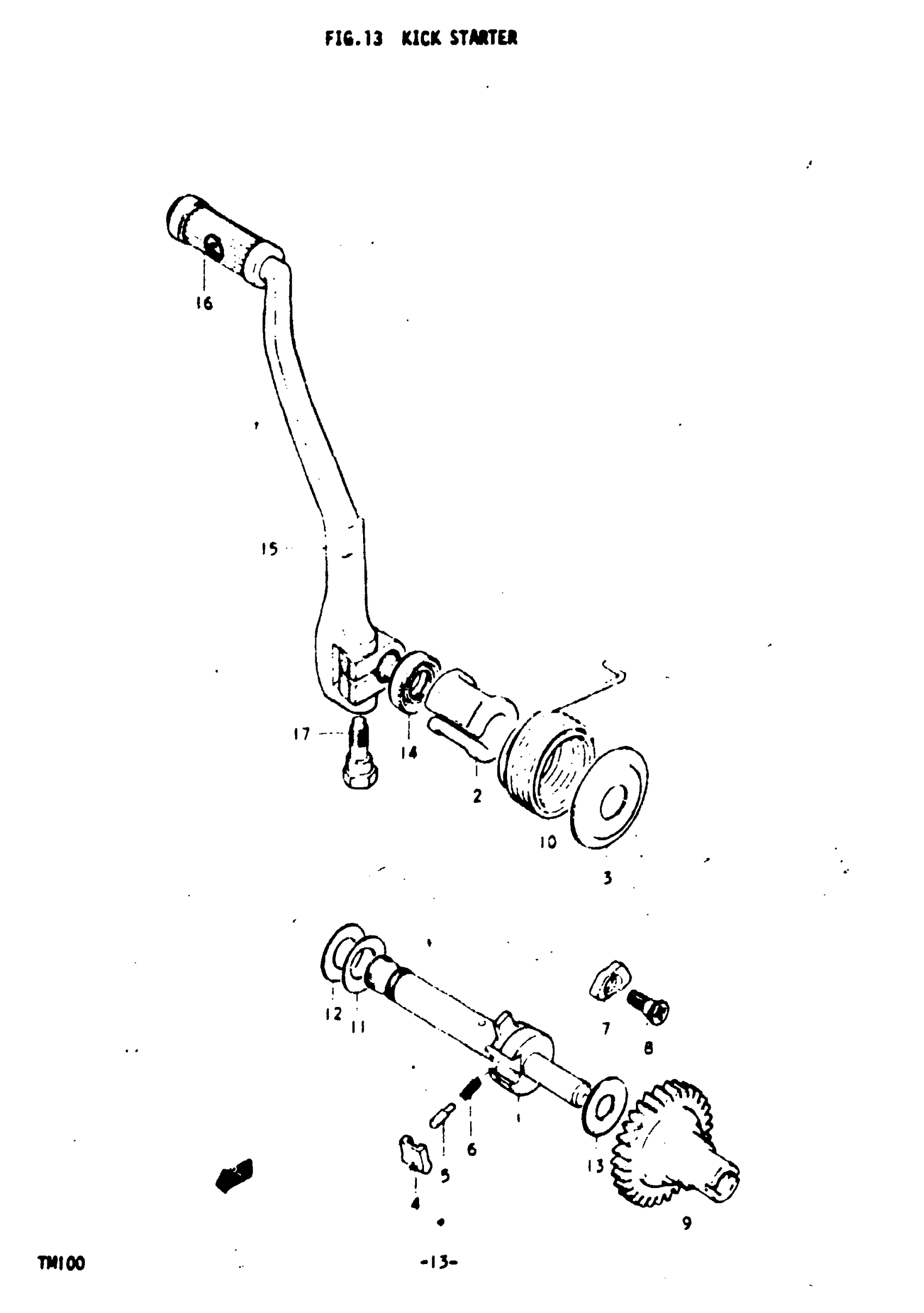

Suzuki TM100 (1975) KICK STARTER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 26211-28300.

26211-28301

Unavailable

2

GUIDE, KICK STARTER

26221-23030

$10.07

3

HOLDER, SPRING

26222-28300

$6.38

4

PAWL, KICK STARTER

26231-20000

$7.74

5

PIN

09209-05011

$2.20

6

SPRING

09440-04010

$1.54

7

RIFTER,PAWL

26232-01000

$6.38

8

SCREW

09139-06002

$2.38

9

GEAR, KICK STARTER DRIVE | L; NT:31 TO 26241-28300 This part replaces 26241-28002.

26241-28300

Unavailable

9

GEAR, KICK STARTER DRIVE | M

26241-28300

Unavailable

10

SPRING

09448-45004

$7.31

11

WASHER | 16x30.5x0.5

09160-16016

$2.04

12

WASHER

09164-16001

$2.12

13

WASHER | M

08211-12302

$2.16

14

SEAL,OIL(16X30X | 16x30x8 This part replaces 09285-16002.

09285-16005

$2.75

15

LEVER ASSY, KICK STARTER | L; TO 26300-28302 This part replaces 26300-28301.

26300-28303

Unavailable

15

LEVER ASSY, KICK STARTER | M; Includes Item(s) 16 This part replaces 26300-28302.

26300-28303

Unavailable

16

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

17

BOLT

09119-08010

Unavailable
