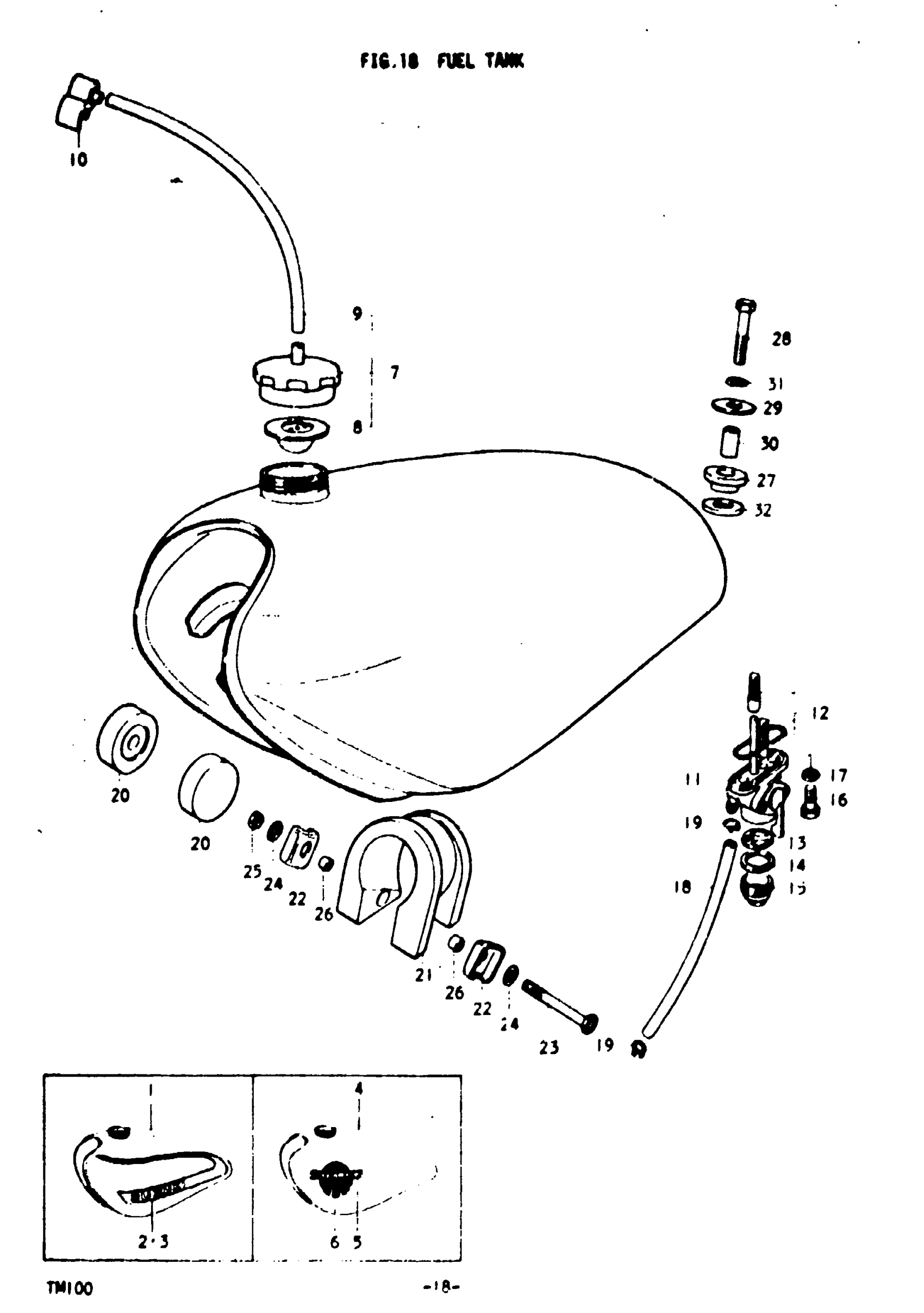

Suzuki TM100 (1975) FUEL TANK Diagram

#

Description
Price

1

FUEL TANK | L; Includes Item(s) 2 - 3 This part replaces 44110-28630-163.

44110-41002-163

Unavailable

2

TAPE, STRIPING RH | L

68115-28301-722

Unavailable

3

NO DESCRIPTION AVAILABLE | L This part replaces 68125-28301-722.

68100-28850-722

Unavailable

4

FUEL TANK SET | M; Includes Item(s) 5 - 6

44110-28660-163

Unavailable

5

NO DESCRIPTION AVAILABLE | M This part replaces 68111-26610-019.

68111-27610-019

Unavailable

6

NO DESCRIPTION AVAILABLE | M This part replaces 68115-26620-722.

68115-26621-722

Unavailable

7

CAP ASSY, FUEL TANK | Includes Item(s) 8 - 9

44200-28300

Unavailable

8

GASKET

44248-28300

Unavailable

9

HOSE,5X10X600 | L: 220 This part replaces 09343-05031.

44421-13ER0

$10.06

10

CLAMP This part replaces 44486-32100.

44486-32101

$3.65

11

COCK ASSY,FUEL | L; TO 44300-22571 This part replaces 44300-22570.

44300-13275

$45.80

11

COCK ASSY,FUEL | M; Includes Item(s) 12 - 15 This part replaces 44300-22571.

44300-13275

$45.80

12

FILTER SET | L This part replaces 44300-28817.

44300-28818

$10.50

12

FILTER SET | M

44300-28818

$10.50

13

CLEANER

44344-28070

Unavailable

14

O-RING This part replaces 44346-28070.

44346-28071

$2.40

15

CUP This part replaces 44347-28070.

44347-28071

$8.98

16

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

17

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

18

HOSE,5X10X600 | L: 170 This part replaces 09343-05116.

44421-13ER0

$10.06

19

CLIP

09401-08401

$1.54

20

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

21

CUSHION, FUEL TANK CENTER

44541-30000

Unavailable

22

PLATE, CUSHION

44549-30000

Unavailable

23

BOLT This part replaces 01112-06508.

01500-06507

$3.03

24

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

25

.NUT This part replaces 08311-11068.

08310-00067

$2.13

26

SPACER | 6.4x8x5.2 This part replaces 09180-06032.

09180-06246

$2.12

27

CUSHION

09320-12013

$2.60

28

BOLT This part replaces 01122-08358.

01500-0835B

$3.04

29

WASHER, MUFFLER SUPPORT | 8.5x30x2.3 This part replaces 09160-08001.

09160-08503

$2.50

30

SPACER 8.2X12X1 | 8x12x17 This part replaces 09180-08049.

09180-08143

$3.77

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

CUSHION

09320-12020

Unavailable
