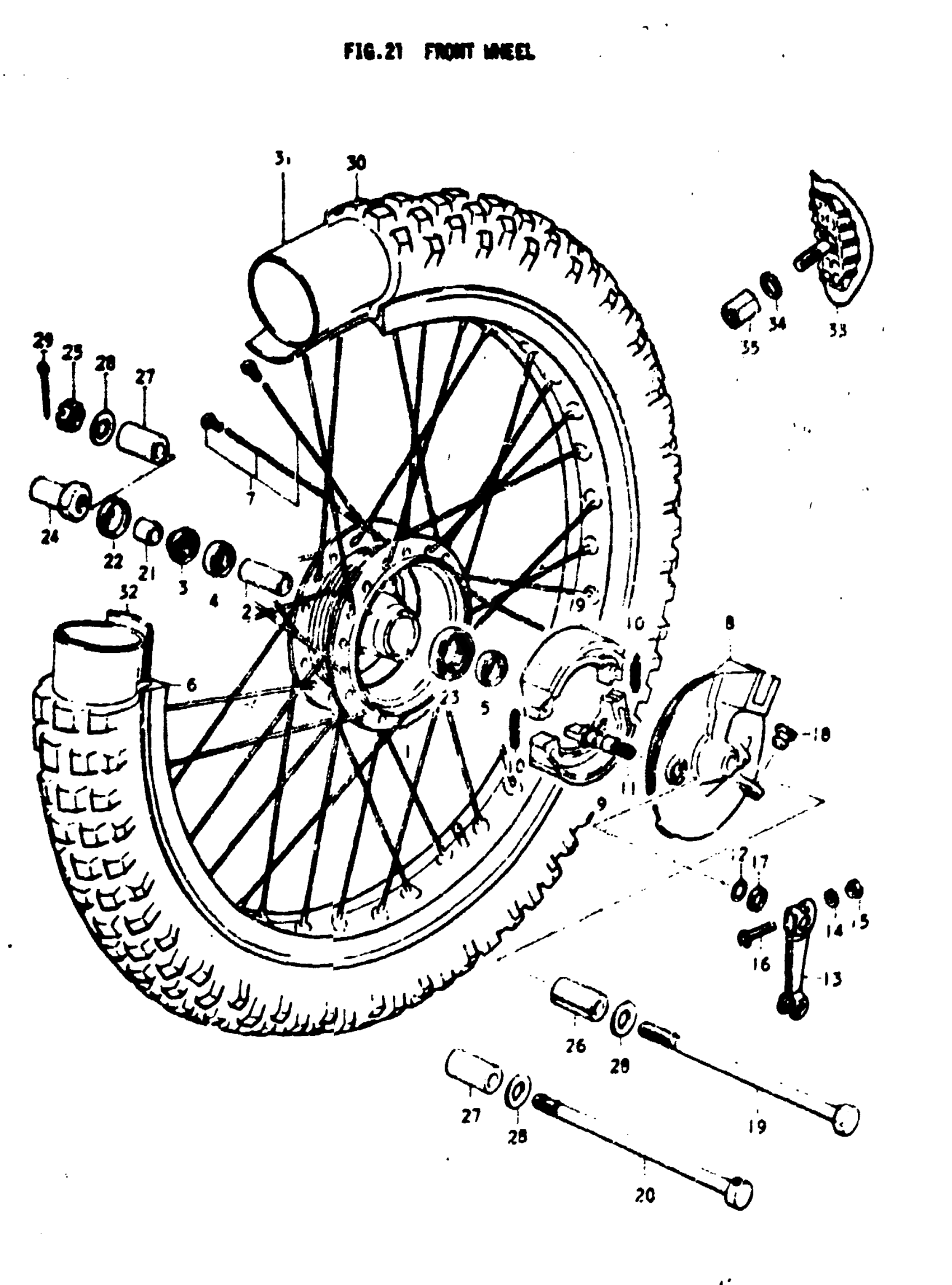

Suzuki TM100 (1975) FRONT WHEEL Diagram

#

Description
Price

0

WHEEL SET, FRONT | L; TO 54100-28850

54100-16850

Unavailable

0

WHEEL SET, FRONT | M; Includes Item(s) 1 - 7

54100-28850

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 54110-28301.

54110-28303

Unavailable

2

SPACER (12.5X19X52) | 12.6x25.4x52 This part replaces 09180-12041.

09180-12144

$10.30

3

SEAL,OIL (18X32X7) | 18x32x5-10 This part replaces 09284-18002.

09285-18002

$5.39

4

BEARING This part replaces 08113-62010.

08113-6201B

$10.15

5

BEARING This part replaces 08143-62010.

08143-6201B

$10.80

6

RIM, WHEEL | L; TO 55311-28322 USE WITH 55300-28850

55311-16501

Unavailable

6

RIM, WHEEL | M

55311-28322

Unavailable

7

SPOKE SET | L

55300-28860

Unavailable

7

SPOKE SET | M This part replaces 55300-28850.

55320-28700

Unavailable

8

PANEL, FRONT HUB | L; TO 54210-28302

54210-28301

Unavailable

8

PANEL, FRONT HUB | M

54210-28302

Unavailable

9

SHOE/SPRING SET This part replaces 54410-01005.

54400-35860

$36.32

10

SPRING This part replaces 09443-07001.

09443-07025

$2.08

11

CAM, BRAKE | L; TO 54441-01002M

54441-01002

$18.80

12

DUST SEAL

09280-12001

$2.90

13

LEVER, BRAKE CAM

54451-03002

$16.87

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

17

WASHER | 12.5x20x1

09160-12011

$1.54

18

PLUG | L

09250-11003

$2.50

19

AXLE, FRONT | L; TO 54711-28302 USE WITH 09180-12061 08322-21128 08314-31128 08111-30308 This part replaces 54711-28301.

54711-28303

Unavailable

20

AXLE, FRONT | M

54711-28303

Unavailable

21

SPACER | L; 12x18x16.4

09180-12040

$8.35

21

SPACER | M; 12x18x10.4

09180-12052

Unavailable

22

COVER | L; TO 54892-28001

54892-28000

Unavailable

22

COVER | L

54892-28001

Unavailable

22

COVER | M

54892-25500

Unavailable

23

OIL SEAL | L; 43x58x7 This part replaces 09285-43001.

09283-43004

$14.03

24

NUT | L; TO 08314-31128 USE WITH 54711-28302 09180-12061 08322-21128 04111-30308

54721-36000

Unavailable

25

NUT | M This part replaces 08314-41128.

08314-4012A

$2.50

26

SPACER | L This part replaces 54751-28300.

09180-12064

Unavailable

27

SPACER | M; 12x20x48.5

09180-12064

Unavailable

28

WASHER | LM This part replaces 08322-21128.

08322-01127

$1.84

29

PIN | M This part replaces 04111-30308.

04111-3030A

$1.49

30

TIRE, FRONT | L; 3.00-21 TO 55100-16511

55100-16510

Unavailable

30

TIRE, FRONT (3.00-21) | M This part replaces 55100-16511.

55100-14230

Unavailable

31

TIRE, FRONT | 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

32

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

33

STOPPER, BEAD This part replaces 65270-30000.

65270-43D00

$58.75

34

WASHER This part replaces 08322-21088.

08322-01087

$2.13

35

NUT

09159-08016

Unavailable
