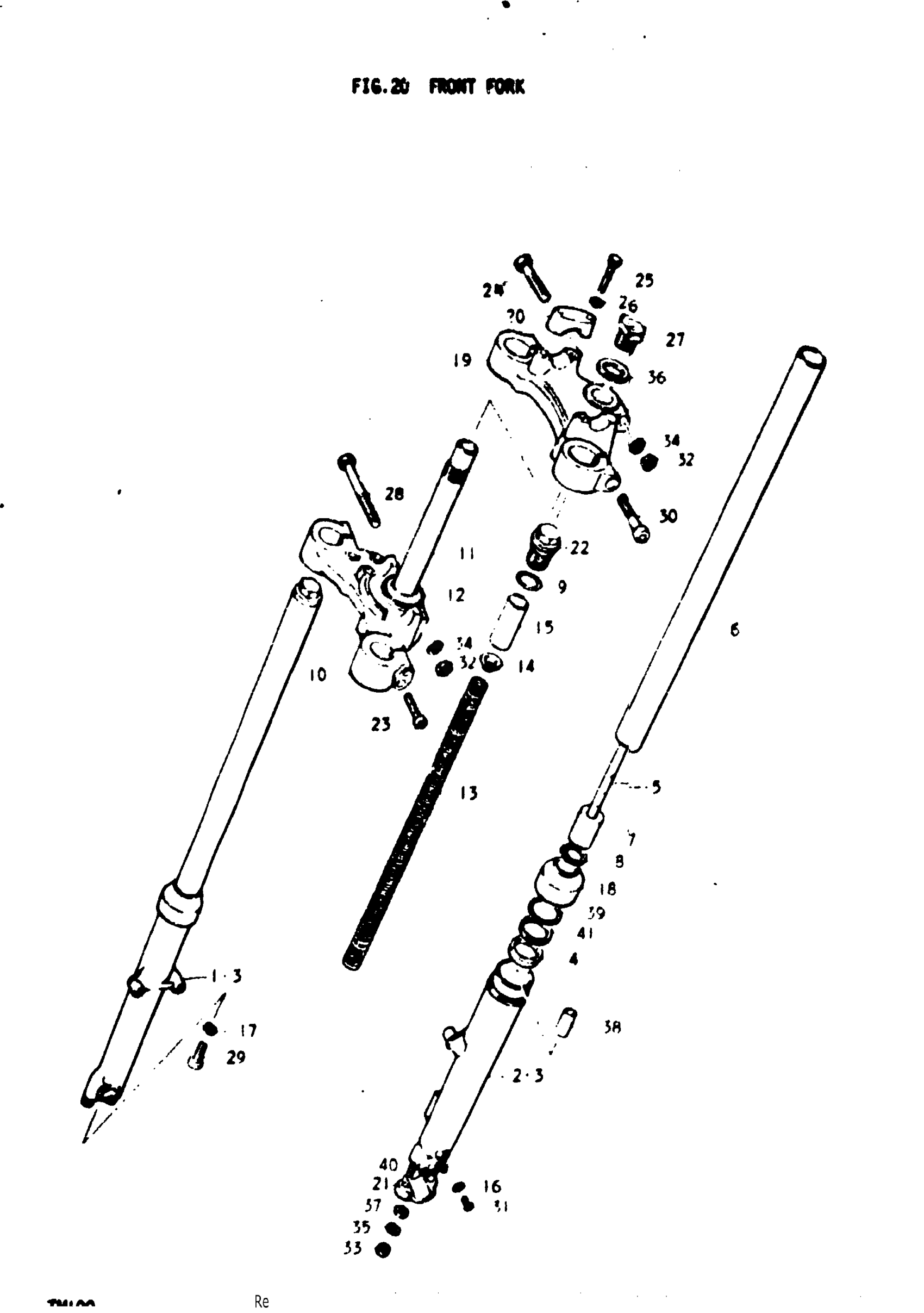

Suzuki TM100 (1975) FRONT FORK Diagram

#

Description
Price

FRONT FORK ASSY | L; TO 51100-28312

51100-28311

Unavailable

FRONT FORK ASSY | M; Includes Item(s) 1 - 37

51100-28312

Unavailable

1

OUTER TUBE, RH | L; TO 51140-36011 (USE WITH 51132-16511)

51130-36010

Unavailable

2

OUTER TUBE, LH | L; TO 51140-36011 (USE WITH 51132-16511)

51140-36010

Unavailable

3

OUTER TUBE | M

51140-36011

Unavailable

4

OIL SEAL

51153-08011

Unavailable

5

CYLINDER | L

51146-28311

Unavailable

5

CYLINDER | M

51146-28312

Unavailable

6

INNER TUBE

51111-28311

Unavailable

7

PISTON | L

51112-28310

Unavailable

7

PISTON | M

51112-28311

Unavailable

8

SNAP RING | L

51118-28310

Unavailable

8

SNAP RING | M

51118-28311

Unavailable

9

O RING This part replaces 51181-25010.

51181-29401

$3.37

10

STEERING STEM

51411-28310

Unavailable

11

SHAFT, STEERING

51401-28310

Unavailable

12

OUTER RACE

51621-33001

$16.25

13

SPRING | L

51171-28311

Unavailable

13

SPRING | M

51171-28312

Unavailable

14

GUIDE, SPRING

51172-25210

Unavailable

15

SPACER | L

51176-25510

Unavailable

16

GASKET, DRAIN PLUG

51183-03010

$2.07

17

O RING This part replaces 51148-34010.

51148-36011

$3.56

18

DUST SEAL

51173-25010

$7.19

19

STEERING STEM HEAD

51311-28310

Unavailable

20

HOLDER, HANDLEBAR

56211-27110

Unavailable

21

HOLDER, FRONT AXLE | L

51132-16510

Unavailable

21

HOLDER, FRONT AXLE | M

51132-16511

Unavailable

22

CAP

51351-25011

$27.97

23

BOLT

51456-28310

Unavailable

24

BOLT This part replaces 01122-10508.

01500-1050A

$3.78

25

BOLT This part replaces 01221-08357.

01204-08357

$2.09

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

BOLT

51351-28310

Unavailable

28

BOLT This part replaces 01122-10608.

01500-1060A

$4.41

29

BOLT | L

51147-36010

Unavailable

29

BOLT, CYLINDER | M This part replaces 51147-31010.

51147-36010

Unavailable

30

BOLT

09106-10001

Unavailable

31

SCREW This part replaces 02111-04087.

02112-04087

$1.49

32

NUT This part replaces 08312-11108.

08310-00107

$2.19

33

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

34

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

35

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

36

WASHER

51356-28310

Unavailable

37

WASHER This part replaces 08322-21088.

08322-01087

$2.13

38

PIECE, OIL LOCK | L

51195-28310

Unavailable

38

PIECE, OIL LOCK | M

51195-28311

Unavailable

39

SNAP RING | M

51156-36010

Unavailable

40

STUD BOLT (L:30) | M This part replaces 51137-31010.

09108-08142

$3.18

41

WASHER | M

51158-36010

Unavailable
