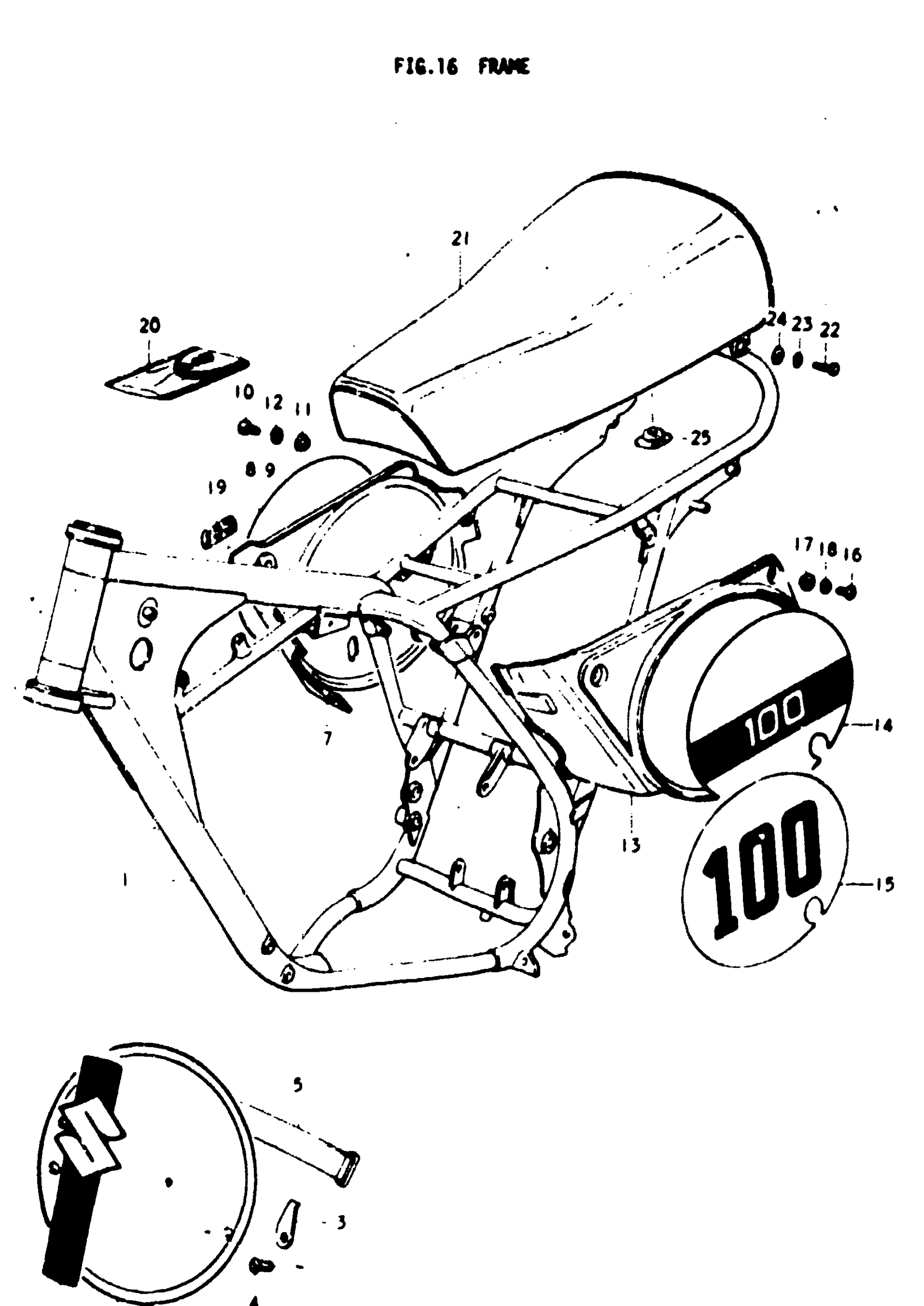

Suzuki TM100 (1975) FRAME Diagram

#

Description
Price

1

FRAME | L; TO 41100-28720-019 USE WITH 09100-12102 2PC 08322-11128 2 PC

41100-28301-019

Unavailable

1

FRAME | M

41100-28720-019

Unavailable

2

PLATE, FRONT NUMBER

94910-16500

Unavailable

3

HOLDER, NUMBER PLATE

94950-28300

Unavailable

4

SCREW This part replaces 02141-06127.

02142-06127

$1.49

5

BAND

09462-00055

$6.09

6

EMBLEM | L

68169-16500

Unavailable

7

COVER, FRAME RH

47110-28300

Unavailable

8

EMBLEM, FRAME COVER RH | L

68131-28610

Unavailable

9

EMBLEM, FRAME COVER RH | M

68131-28611

Unavailable

10

SCREW This part replaces 02141-06127.

02142-06127

$1.49

11

SPACER

09169-06010

$2.60

12

LOCK WASHER | L This part replaces 08321-21068.

08321-01067

$2.13

13

COVER, FRAME LH

47211-28300

Unavailable

14

EMBLEM, FRAME COVER LH | L This part replaces 68141-28610.

68141-28611

Unavailable

15

EMBLEM, FRAME COVER LH | M

68141-28611

Unavailable

16

SCREW This part replaces 02141-06127.

02142-06127

$1.49

17

SPACER

09169-06010

$2.60

18

LOCK WASHER | L This part replaces 08321-21068.

08321-01067

$2.13

19

EMBLEM, CCI | L

68171-26000

$3.59

20

TOOL SET | L; TO 09800-00028 This part replaces 09800-00142.

09800-00028

Unavailable

20

TOOL SET | M

09800-00028

Unavailable

21

NO DESCRIPTION AVAILABLE | L; TO 45100-28301-403 This part replaces 45100-28300-403.

45100-28301-865

Unavailable

21

NO DESCRIPTION AVAILABLE | M This part replaces 45100-28301-403.

45100-28301-865

Unavailable

22

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

WASHER This part replaces 08322-21088.

08322-01087

$2.13

25

CUSHION, SEAT

09329-10001

$2.12
