Partiron

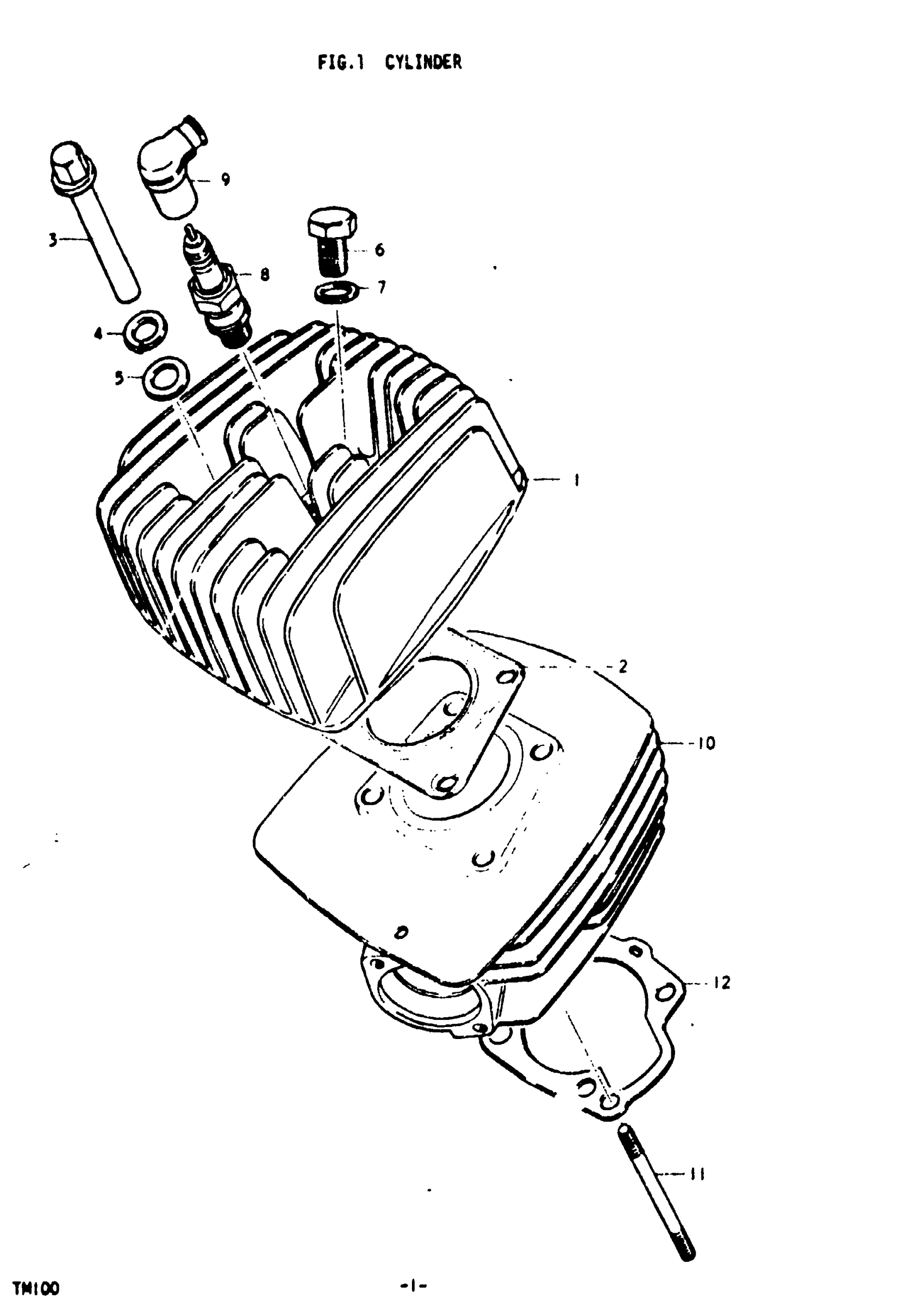

Suzuki TM100 (1975) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | L

11111-28600

Unavailable

1

CYLINDER HEAD | M

11111-28602

Unavailable

2

GASKET, CYLINDER HEAD

11141-28650

Unavailable

3

NUT

09159-08006

$5.83

4

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

5

WASHER This part replaces 08322-11128.

08322-01127

$1.84

6

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

7

GASKET

09168-14004

$1.83

8

SPARK PLUG | NGK B-8EN

09482-00027

Unavailable

8

SPARK PLUG | DENSO W25EN

09482-00078

Unavailable

9

CAP ASSY, SPARK PLUG

33510-28300

Unavailable

10

CYLINDER | L

11210-28600

Unavailable

10

CYLINDER | M

11210-28602

Unavailable

11

BOLT,STUD This part replaces 01421-08658.

01421-0865A

$3.85

12

GASKET,CYLINDER This part replaces 11241-28000.

11241-28001

Unavailable
