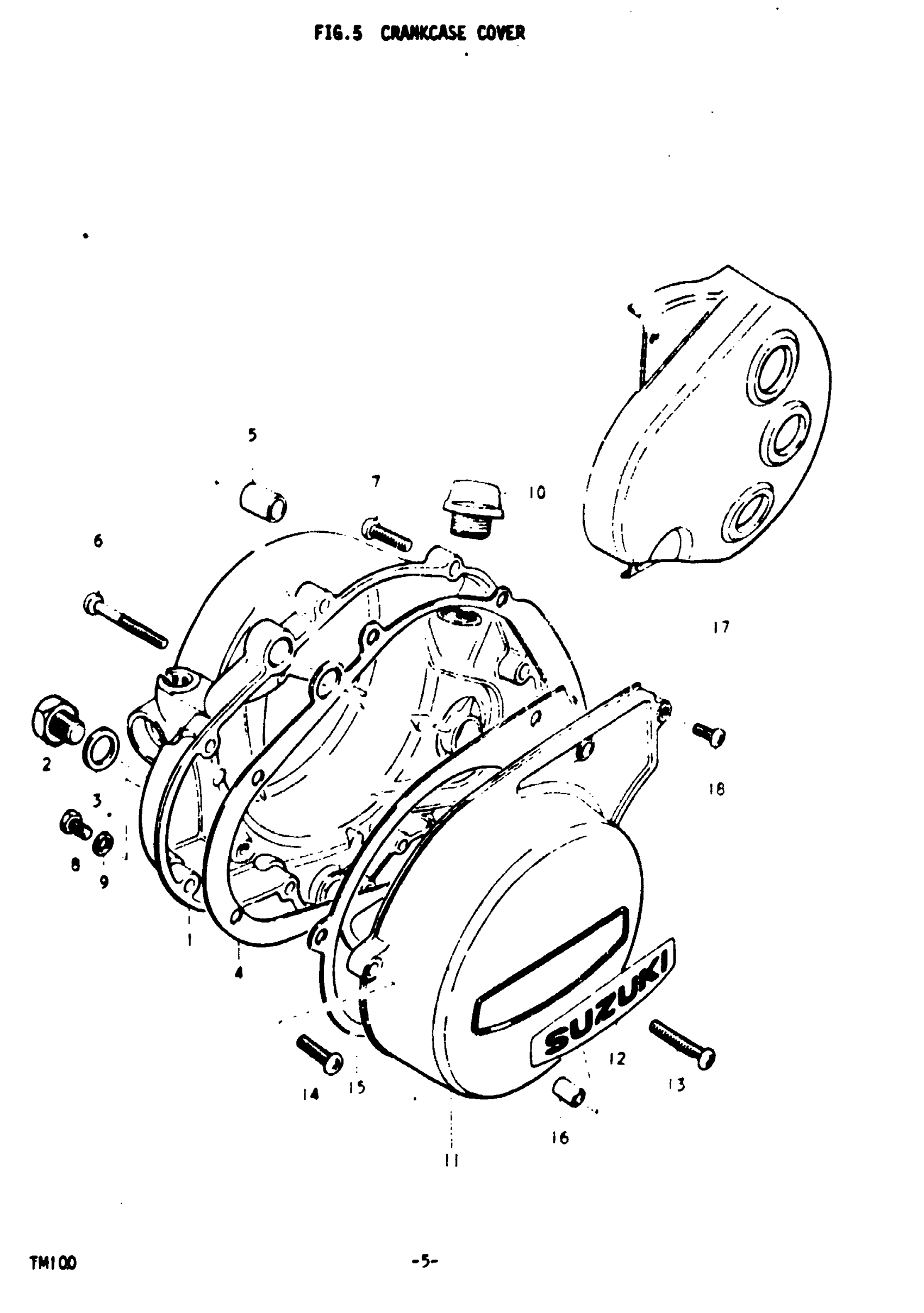

Suzuki TM100 (1975) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2 - 3

11300-28860

Unavailable

2

PLUG (MAGNETO) | L This part replaces 09247-14001.

09247-14002

$5.24

3

GASKET | L

09168-14004

$1.83

4

GASKET,CLUTCH C This part replaces 11482-28000.

11482-28001

Unavailable

5

PIN This part replaces 09206-13001.

04211-13189

$2.19

6

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

9

GASKET

09168-06001

$1.49

10

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

11

COVER, MAGNETO

11351-28300

Unavailable

12

EMBLEM, MAGNETO COVER

68233-28300

Unavailable

13

SCREW

02112-06307

$1.97

14

SCREW This part replaces 02112-06208.

02112-06207

$1.78

15

GASKET, MAGNETO COVER

11483-28000

Unavailable

16

PIN

04211-09129

$1.65

17

COVER, ENGINE SPROCKET

11360-28300

Unavailable

18

SCREW This part replaces 02111-05108.

02112-05107

$1.49
