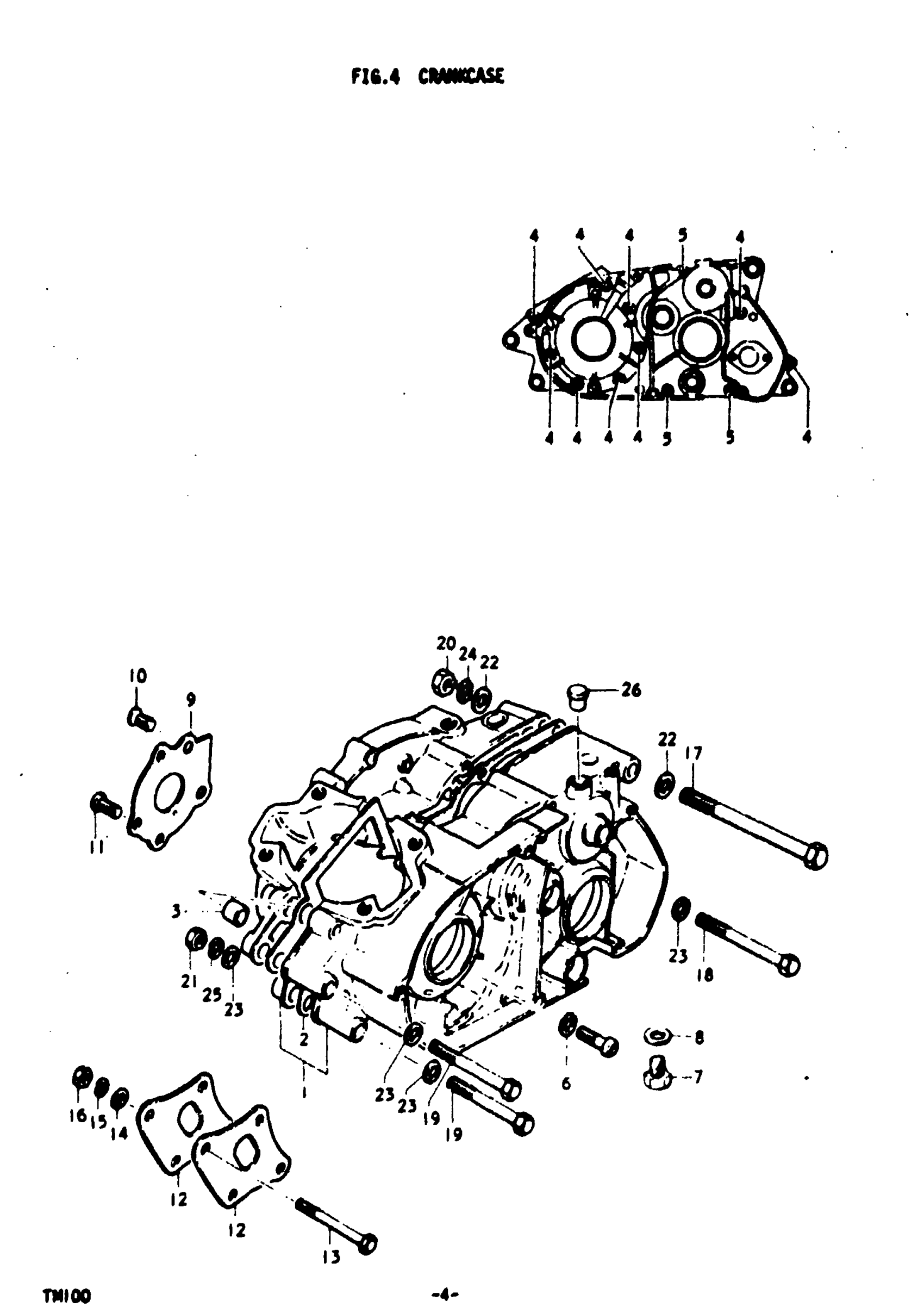

Suzuki TM100 (1975) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | L; TO 11300-28841

11300-28840

Unavailable

1

CRANKCASE SET | Includes Item(s) 2 - 8

11300-28841

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-28000.

11481-28001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW

02112-06657

$2.62

6

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

7

PLUG OIL DRAIN

09247-10001

$2.20

8

GASKET

09168-10002

$2.13

9

PLATE, OIL RESERVOIR

12561-28002

Unavailable

10

SCREW This part replaces 02122-06128.

02122-06127

$1.84

11

SCREW

02111-06168

Unavailable

12

PLATE, ENGINE MOUNTING

41591-28000

Unavailable

13

BOLT This part replaces 01112-08708.

01500-0870B

$3.49

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

NUT This part replaces 08312-11088.

08310-00087

$2.13

17

BOLT 10X125 | L; 10x125 This part replaces 09100-10051.

09100-10274

$7.15

17

BOLT | M; 10x120 This part replaces 09100-10060.

09116-10032

$5.77

18

BOLT This part replaces 01122-08808.

01500-0880B

$3.49

19

BOLT This part replaces 01122-08708.

01500-0870B

$3.49

20

NUT This part replaces 08312-11108.

08310-00107

$2.19

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

WASHER This part replaces 08322-11108.

08322-01107

$2.15

23

WASHER This part replaces 08322-11088.

08322-01087

$2.13

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

PLUG, GEAR SHIFTING SWITCH HOL | E

09250-10001

$1.86
