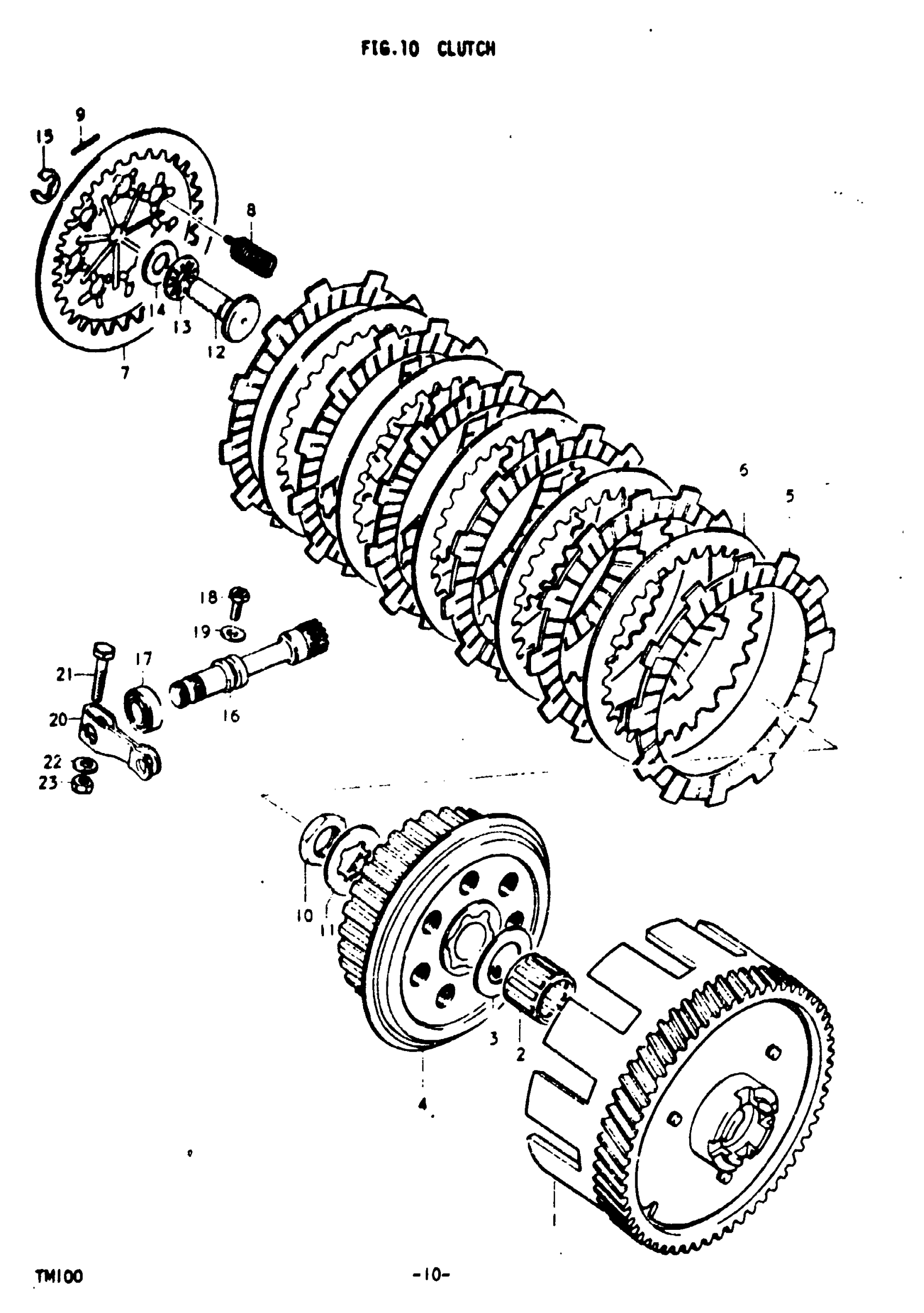

Suzuki TM100 (1975) CLUTCH Diagram

#

Description
Price

1

GEAR COMP, PRIMARY DRIVEN | NT:57

21200-28300

Unavailable

2

BEARING

09263-21005

Unavailable

3

THRUST WASHER

08211-17342

$2.72

4

HUB,CLUTCH SLEE This part replaces 21410-28700.

21410-39131

$89.43

5

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

6

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

7

PLATE, PRESSURE

21460-28000

$25.25

8

SPRING

09443-12010

$2.45

9

PIN

09261-02001

$1.56

10

NUT This part replaces 09140-16001.

09140-16005

$3.75

11

WASHER

09167-17002

$1.91

12

RACK This part replaces 23165-28300.

23165-46000

$22.21

13

BEARING

09263-10002

$10.19

14

WASHER

08212-10241

$2.23

15

.E-RING This part replaces 08332-11088.

08332-1108A

$1.78

16

PINION, RELEASE

23261-28300

$45.38

17

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

18

BOLT

09135-06009

$2.23

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

ARM, RELEASE

23271-28300

Unavailable

21

BOLT This part replaces 01112-06258.

01500-06257

$1.97

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13

23

.NUT This part replaces 08311-11068.

08310-00067

$2.13
