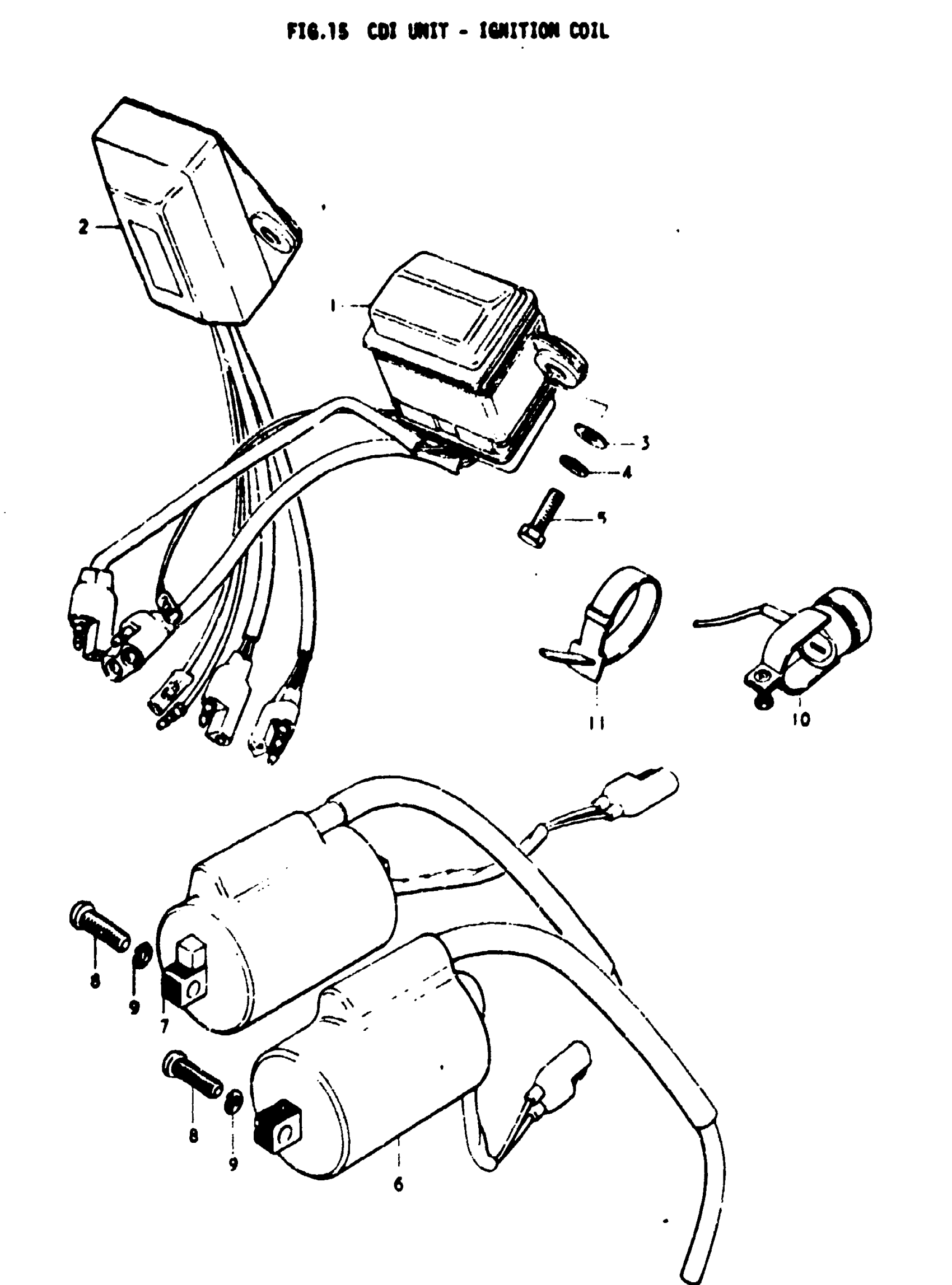

Suzuki TM100 (1975) CDI UNIT - IGNITION COIL Diagram

#

Description

Price

1

CDI UNIT ASSY | KOKUSAN

31900-28300

Unavailable

2

CDI UNIT ASSY | NIPPON DENSO

31900-28600

Unavailable

3

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT This part replaces 01112-06208.

01500-06207

$2.28

6

COIL ASSY, IGNITION | KOKUSAN This part replaces 33410-30020.

33410-14120

$115.17

7

COIL ASSY, IGNITION | NIPPON DENSO This part replaces 33410-30020.

33410-14120

$115.17

8

SCREW This part replaces 02111-05207.

02112-05207

$1.97

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

SWITCH ASSY, ENGINE STOP | TO 37820-16311 This part replaces 37820-16510.

37820-14X50

$48.54

11

CLAMP

09407-12401

Unavailable
