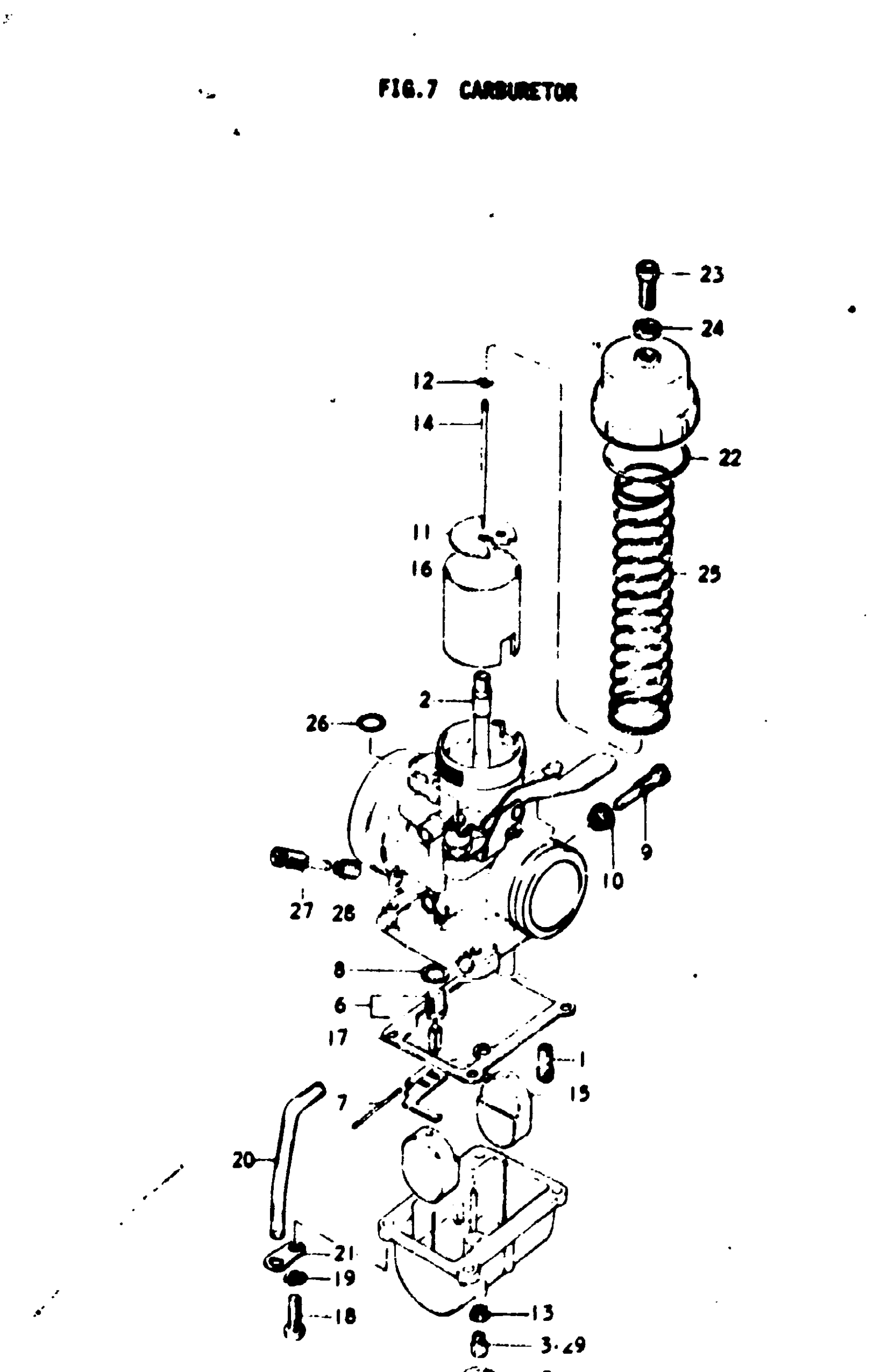

Suzuki TM100 (1975) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | L; STARTER : LEVER TO 13200-28651

13200-28650

Unavailable

CARBURETOR ASSY | L; STARTER : ROD

13200-28651

Unavailable

CARBURETOR ASSY | M; Includes Item(s) 1 - 2 This part replaces 13200-28660.

13200-28720

Unavailable

1

JET, PILOT (30) | #30 This part replaces 09492-30003.

09492-30006

$9.55

2

JET, NEEDLE | L; 0-4

09494-00117

Unavailable

2

JET NEEDLE | M; 0-6; Includes Item(s) 3 - 28

09494-00158

Unavailable

3

JET, MAIN | L; #175

09491-35003

Unavailable

3

JET, MAIN | M; #175

09491-35002

Unavailable

4

PLUG, DRAIN

13247-28310

Unavailable

5

GASKET, DRAIN PLUG

13249-28310

Unavailable

6

VALVE ASSY, NEEDLE

13370-29700

Unavailable

7

PIN, FLOET

13254-11010

Unavailable

8

GASKET, NEEDLE VALVE

13392-58600

$1.82

9

SCREW, THROTTLE STOP This part replaces 13267-15110.

13267-40230

$9.85

10

NUT

13662-16510

Unavailable

11

SEAT, THROTTLE SPRING

13581-28700

Unavailable

12

CLIP, NEEDLE

13394-10010

$5.45

13

RING

13331-28710

Unavailable

14

NEEDLE | 5DP7-3

13383-28700

Unavailable

15

FLOAT

13252-28310

Unavailable

16

VALVE, THROTTLE | L; CA:2.0

13551-34611

Unavailable

16

VALVE, THROTTLE | M; CA:2.5

13551-34011

Unavailable

17

GASKET, FLOAT CHAMBER

13251-28700

Unavailable

18

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

19

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

20

HOSE | 3x5x100 This part replaces 13684-30010.

13684-40A00

$9.58

21

PLATE

13693-30010

$6.55

22

O RING

13295-34600

Unavailable

23

ADJUSTER, CABLE

13577-31010

Unavailable

24

NUT

13661-31010

Unavailable

25

SPRING, THROTTLE VALVE

13573-28310

Unavailable

26

O RING, STARTER VALVE

13420-20010

Unavailable

27

SCREW, PILOT AIR

13269-15010

Unavailable

28

SPRING

13268-01010

$5.28

29

JET, MAIN (115) | L; #115 OPT This part replaces 09491-23008.

09491-23010

Unavailable

29

JET, MAIN (120) | L; #120 OPT This part replaces 09491-24002.

09491-24014

Unavailable

29

JET,MAIN #135 | L; #135 OPT This part replaces 09491-27005.

09491-27015

Unavailable

29

JET, MAIN | L; #140 OPT This part replaces 09491-28002.

09491-28009

Unavailable

29

JET, MAIN | L; #145 OPT

09491-29002

$10.80

29

JET,MAIN,150 | L; #150 OPT This part replaces 09491-30003.

09491-30017

Unavailable
