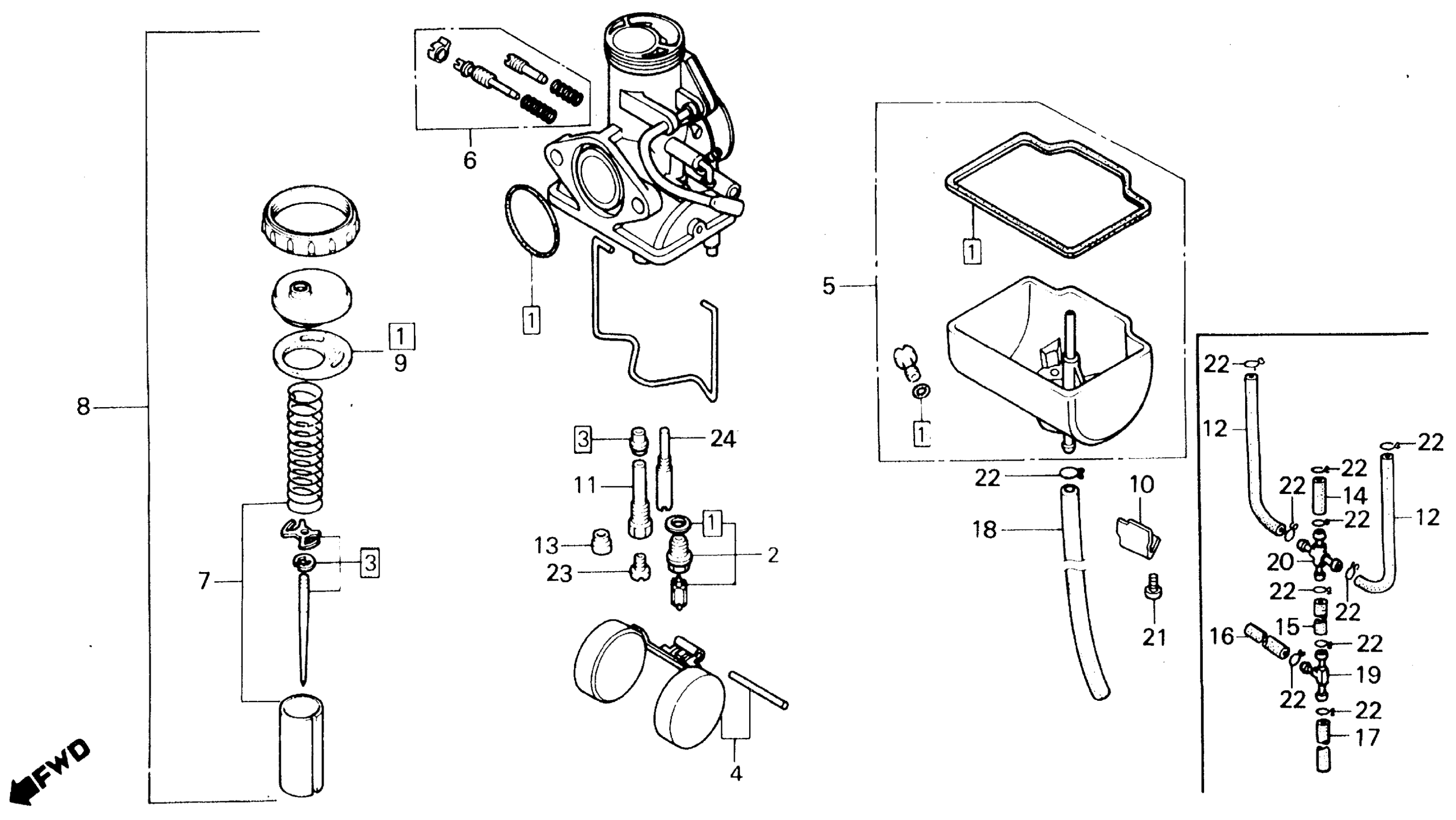

Honda TLR200AC (87) REFLEX, JPN, VIN# JH2MD091-HK100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-107-305

$12.74

1

GASKET SET This part replaces 16010-107-710.

16010-107-305

$12.74

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET This part replaces 16012-KJ2-671.

16012-KJ2-672

Unavailable

3

NEEDLE SET, JET

16012-KJ2-672

Unavailable

4

FLOAT SET

16013-286-014

$32.28

5

CHAMBER SET, FLOAT

16015-KJ2-671

Unavailable

6

SCREW SET A

16016-KJ2-671

Unavailable

7

VALVE SET, THROTTLE

16022-KJ2-004

Unavailable

8

CARBURETOR ASSY. This part replaces 16100-KJ2-781.

16100-KJ2-782

Unavailable

8

CARBURETOR ASSY.

16100-KJ2-782

Unavailable

9

WASHER, TOP

16110-KJ2-671

Unavailable

10

STAY, PLATE

16119-KJ2-671

Unavailable

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-107-710

Unavailable

12

TUBE, FUEL This part replaces 16143-469-004.

16199-KG4-405

$9.49

12

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$9.49

13

HOLDER, JET (NOT AVAILABLE)

16168-169-004

Unavailable

14

TUBE, AIR VENT This part replaces 16198-MK6-405.

16199-428-405

$3.10

14

TUBE, AIR VENT This part replaces 16199-KB4-791.

16199-428-405

$3.10

15

TUBE, AIR VENT This part replaces 16198-MK6-405.

16199-428-405

$3.10

15

TUBE, AIR VENT This part replaces 16199-KJ2-781.

16199-428-405

$3.10

16

TUBE, FUEL This part replaces 16199-159-701.

16199-KG4-405

$9.49

17

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$9.49

19

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

20

JOINT, VACUUM TUBE (B)

17202-MG9-640

Unavailable

21

SCREW, PAN (5X8)

93500-05008-0H

$1.49

22

CLIP, TUBE (B6.5)

95002-02650

$1.49

23

JET (#92)

99101-GHB-0920

$7.98

23

JET, MAIN (#92) This part replaces 99101-393-0920.

99101-GHB-0920

$7.98

24

JET, SLOW (#38)

99103-357-0380

Unavailable
