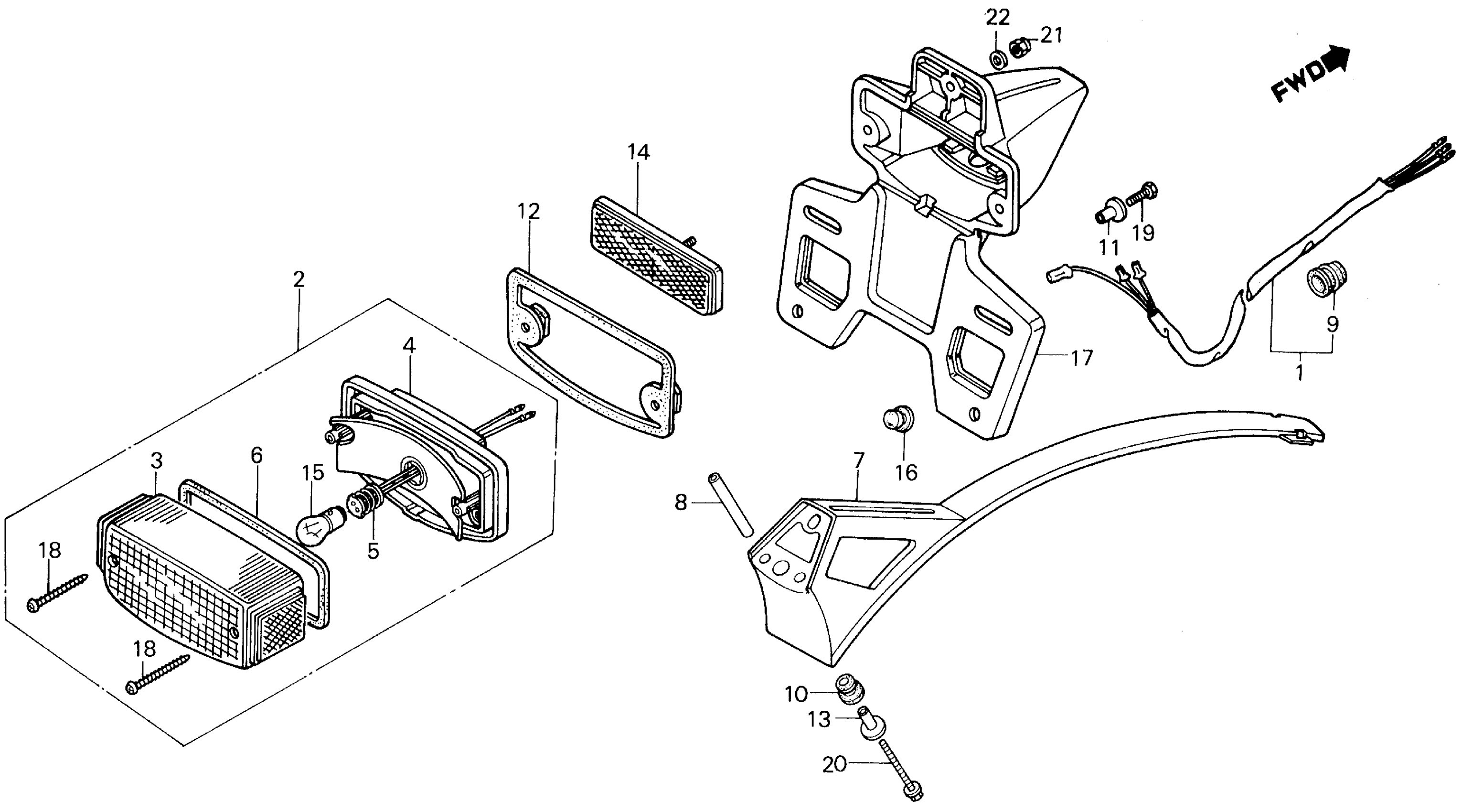

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 TAILLIGHT Diagram

#

Description
Price

1

SUB-CABLE, TAILLIGHT (NOT AVAILABLE)

32200-KJ2-670

Unavailable

2

TAILLIGHT UNIT

33701-GAN-671

Unavailable

2

TAILLIGHT UNIT This part replaces 33701-MC4-671.

33701-GAN-671

Unavailable

3

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

4

BASE, TAILLIGHT

33703-MC4-671

Unavailable

5

CABLE, TAILLIGHT

33708-147-003

Unavailable

6

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

7

RUBBER, TAILLIGHT (NOT AVAILABLE)

33712-KJ2-670

Unavailable

8

COLLAR, NUMBER BRACKET (NOT AVAILABLE)

33713-KJ2-670

Unavailable

9

GROMMET, TAILLIGHT WIRE

33714-KJ2-670

Unavailable

10

RUBBER, TAILLIGHT BRACKET

33714-KR5-000

Unavailable

11

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$4.59

12

GASKET, TAILLIGHT

33718-KF9-670

Unavailable

13

COLLAR, TAILLIGHT GASKET

33719-437-970

$6.93

14

REFLECTOR, REFLEX

33741-MC7-612

$14.43

15

BULB, TAILLIGHT (12V27/8W) (STANLEY)

34906-425-771

$4.40

16

GROMMET, HOOD STAY

63514-671-000

Unavailable

17

BRACKET, LICENSE PLATE

84701-MC4-671

Unavailable

18

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

19

BOLT, HEX. (5X20) This part replaces 92000-05020-0H.

92101-05020-0H

$1.49

19

BOLT, HEX. (5X20)

92101-05020-0H

$1.49

20

BOLT, HEX. (6X90) This part replaces 92000-06090-0A.

92101-06090-0A

Unavailable

20

BOLT, HEX. (6X90)

92101-06090-0A

Unavailable

21

NUT, CAP (5MM)

94021-05020-0S

$1.49

22

WASHER, SPRING (5MM)

94111-05000

$1.49
