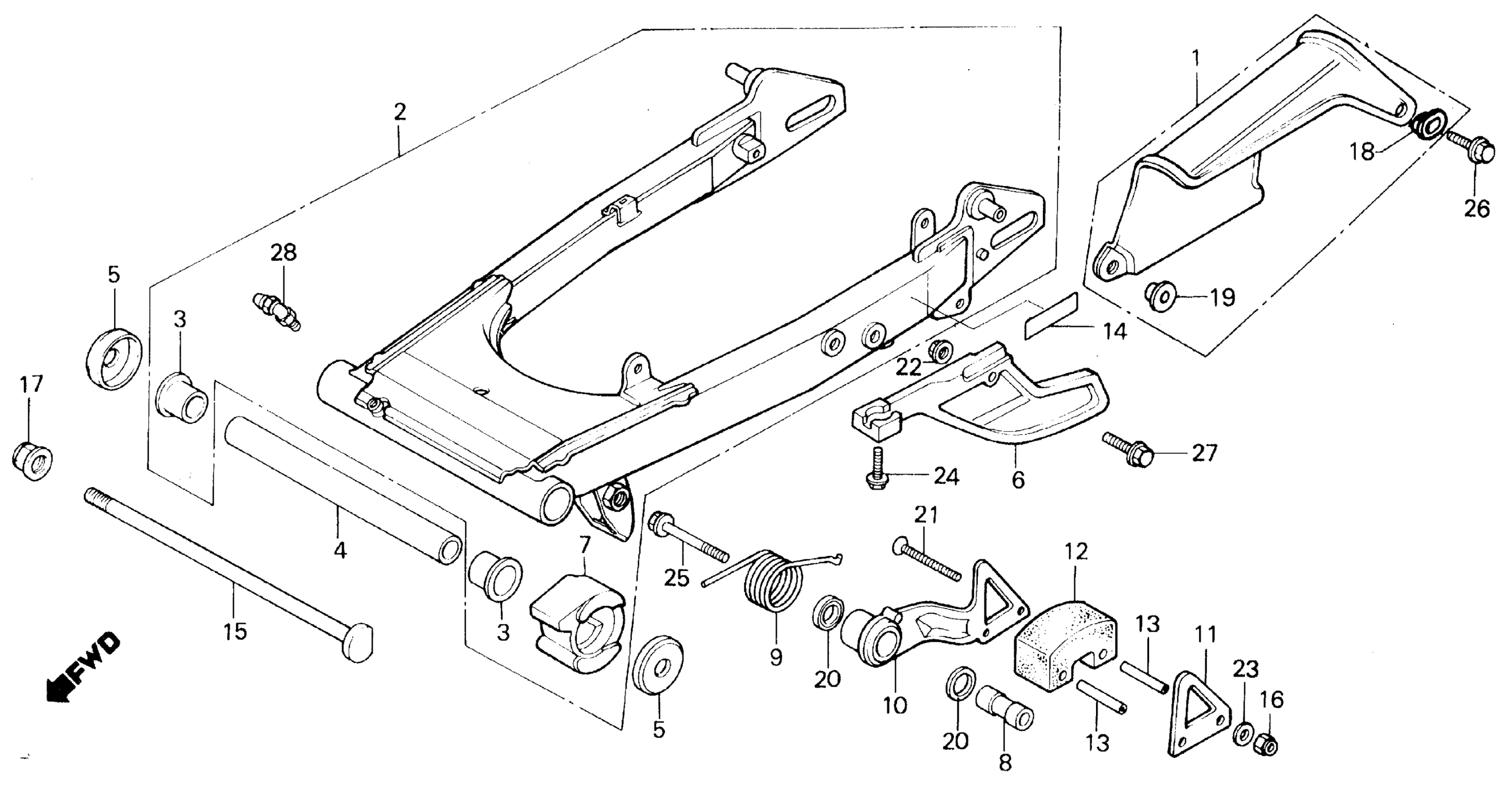

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-KJ2-000

Unavailable

2

SWINGARM *NH35M* This part replaces 52100-KJ2-000ZA.

52100-KJ3-000ZA

Unavailable

3

BUSH, PIVOT THRUST

52109-GJ1-003

$18.43

4

COLLAR, SWINGARM

52121-KJ2-000

Unavailable

5

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

5

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$11.80

6

GUARD, DRIVE CHAIN

52156-KJ2-000

Unavailable

7

SLIDER, CHAIN

52170-KJ2-000

Unavailable

8

COLLAR, CHAIN TENSIONER

52171-434-020

Unavailable

9

SPRING, CHAIN TENSIONER

52174-434-000

Unavailable

10

TENSIONER, CHAIN *NH35M* (CLOUD SILVER METALLIC)

52181-KJ2-000ZA

Unavailable

11

PLATE, TENSIONER *NH35M* (CLOUD SILVER METALLIC)

52182-KJ2-000ZA

Unavailable

12

SLIPPER, TENSIONER

52183-KJ2-000

Unavailable

13

COLLAR, CHAIN SLIPPER

52184-KJ2-000

Unavailable

14

MARK, TIRE CAUTION

87505-KJ2-670

Unavailable

15

BOLT, SWINGARM PIVOT

90121-KJ2-000

Unavailable

16

NUT, HEX. (5MM)

90302-435-761

$2.23

17

NUT, FLANGE (12MM)

90306-181-761

$6.08

18

WASHER (6X20)

90512-300-000

$3.08

19

WASHER (6X9)

90513-323-000

$1.84

20

OIL SEAL (14X20X3)

91201-434-003

$4.26

20

OIL SEAL (14X20X3.2) This part replaces 91201-434-005.

91201-434-003

$4.26

21

SCREW, FLAT (5X40)

93600-05040-0A

Unavailable

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

WASHER, PLAIN (5MM)

94101-05000

$1.49

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

24

BOLT, FLANGE (6X20) This part replaces 95800-06020-00.

95701-06020-00

$1.55

25

BOLT, FLANGE (8X45) This part replaces 95800-08045-08.

95801-08045-08

$1.49

25

BOLT, FLANGE (8X45)

95801-08045-08

$1.49

26

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

26

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

27

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

27

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

28

FITTING, GREASE (B.76S)

96201-80000

$2.56
