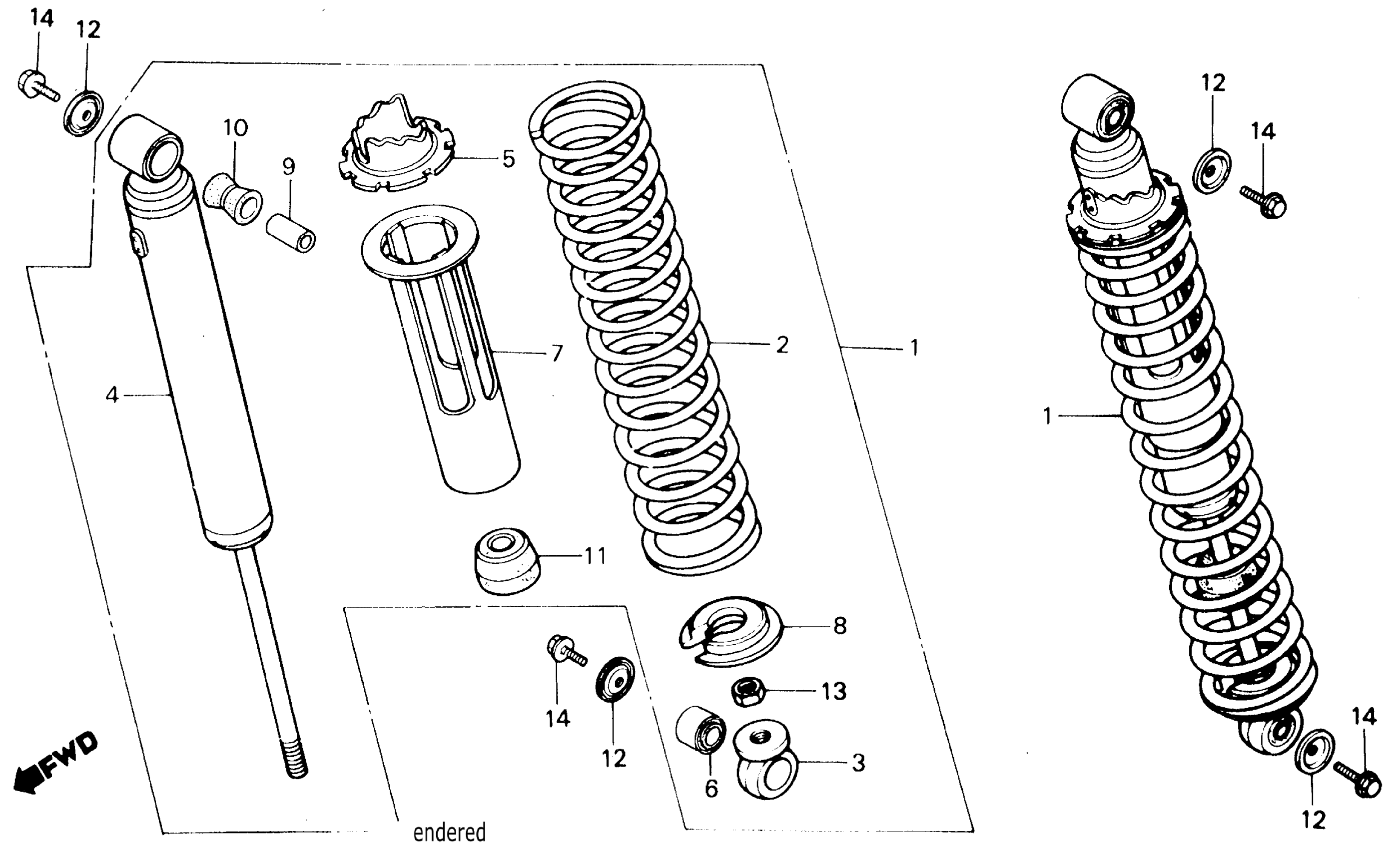

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-KJ2-671

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-KJ2-003

Unavailable

JOINT (LOWER)

52403-KJ2-003

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52410-KJ2-671

Unavailable

ADJUSTER, SPRING

52422-KJ2-003

Unavailable

BUSH, SHOCK ABSORBER (NOT AVAILABLE)

52451-KJ2-003

Unavailable

GUIDE, SPRING

52458-428-003

Unavailable

SEAT, SPRING (UPPER)

52459-KJ2-003

Unavailable

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

$4.28

RUBBER B, JOINT

52488-331-003

Unavailable

RUBBER, STOPPER (NOT AVAILABLE)

52517-395-670

Unavailable

WASHER, RR. SHOCK (NOT AVAILABLE) This part replaces 90502-428-000.

90502-429-770

Unavailable

NUT, HEX. (12MM)

94002-12000-0S

$2.06

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
