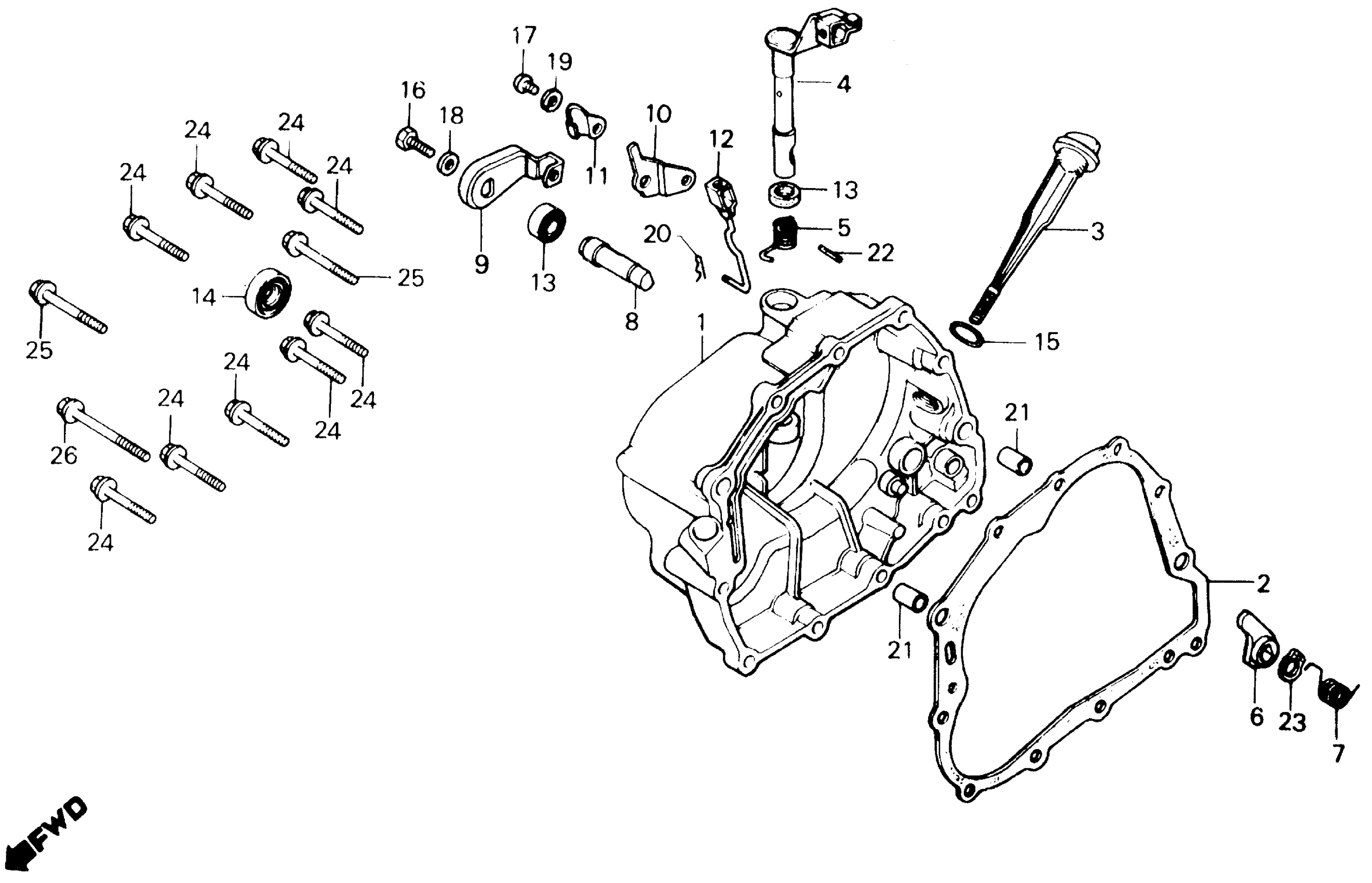

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-KJ2-000

Unavailable

2

GASKET, R. COVER This part replaces 11393-KT0-710.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-000.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-010.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-306.

11393-KVC-902

$15.56

3

DIPSTICK, OIL

15650-KB9-000

$13.60

4

LEVER, CLUTCH

22810-KJ2-000

Unavailable

5

SPRING, CLUTCH LEVER

22815-KJ2-000

Unavailable

6

FOLLOWER, CAM

28271-427-000

Unavailable

7

SPRING, FOLLOWER

28274-427-000

Unavailable

8

SHAFT, FOLLOWER

28281-427-000

Unavailable

9

ARM, CAM FOLLOWER

28282-KJ2-000

Unavailable

10

RECEIVER, DECOMPRESSION CABLE (LOWER)

28287-427-000

Unavailable

11

CLAMP, DECOMPRESSION RECEIVER

28288-427-000

Unavailable

12

ROD, DECOMPRESSION

28289-427-000

Unavailable

13

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

13

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$4.06

13

OIL SEAL (12X22X5)

91201-965-000

$4.06

14

OIL SEAL (16X28X7)

91204-259-003

$5.60

14

OIL SEAL (16X28X7) This part replaces 91204-259-005.

91204-259-003

$5.60

15

O-RING (18X3)

91307-035-000

$2.92

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

SCREW, PAN (5X12)

93500-05012-0A

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (5MM)

94111-05000

$1.49

20

PIN, LOCK (4MM)

94251-04000

$1.49

21

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

22

PIN, SPRING (3X10)

94305-30102

$1.74

23

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

24

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

24

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

25

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

25

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

26

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

26

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
