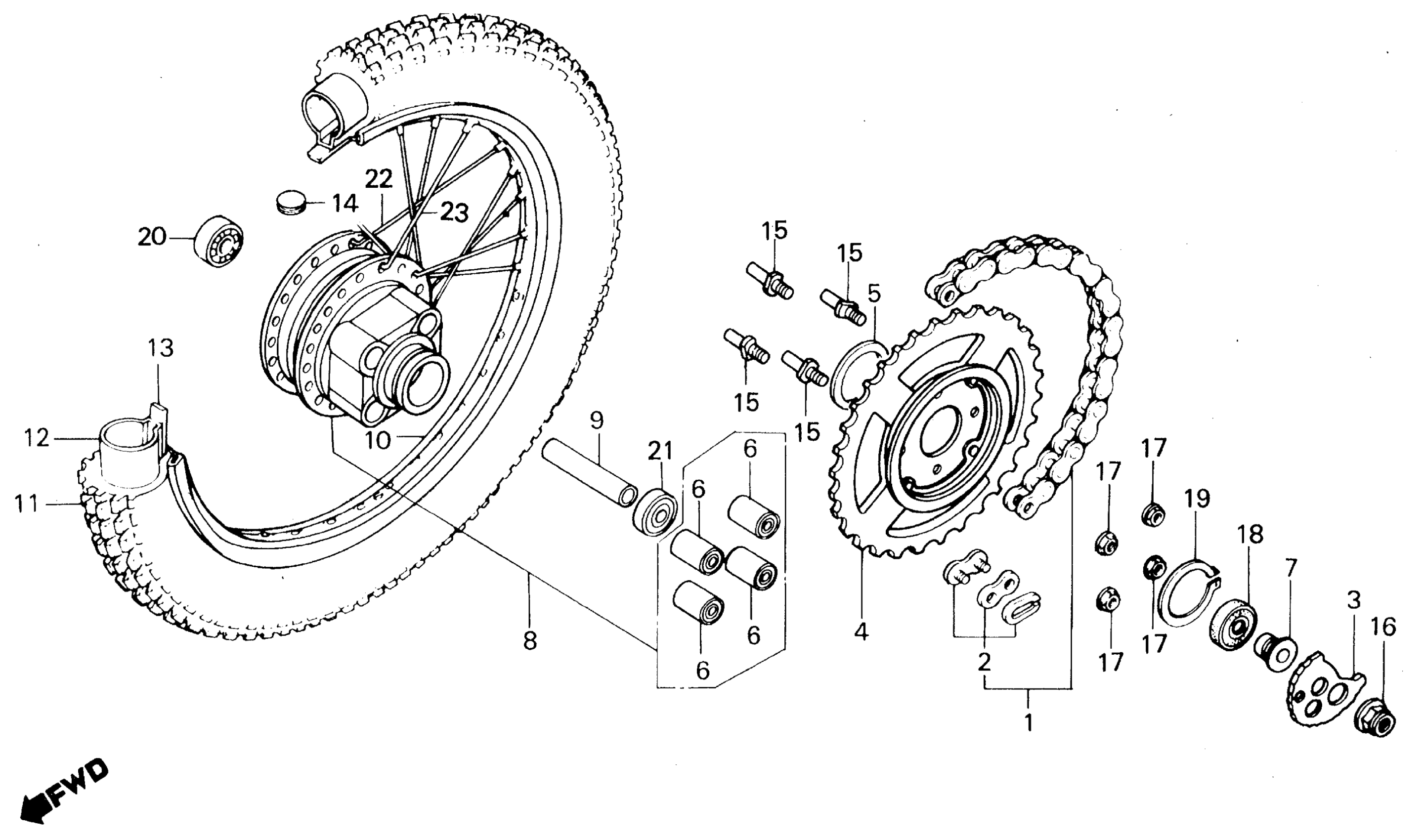

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 REAR WHEEL Diagram

#

Description
Price

1

CHAIN, DRIVE (102L) (DAIDO)

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-KJ2-003.

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-KJ2-005.

405W3-434-505

Unavailable

2

MASTER LINK (DAIDO)

40531-KA3-711

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KA3-712

Unavailable

3

ADJUSTER, CHAIN

40544-KJ2-000

Unavailable

4

SPROCKET, FINAL DRIVEN (44T)

41200-KJ2-000

Unavailable

5

SPACER, DRIVEN SPROCKET (NOT AVAILABLE)

41212-KJ2-000

Unavailable

6

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

7

COLLAR, RR. WHEEL SIDE

42311-KJ2-000

Unavailable

8

HUB, RR. WHEEL

42610-KJ2-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-KJ2-000

Unavailable

10

RIM, RR. WHEEL

42701-KJ2-670

Unavailable

11

TIRE, RR. (4.00-18) (4PR) (DUNLOP) (NOT AVAILABLE)

42711-KR8-004

Unavailable

12

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-300-004.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

13

FLAP, TIRE (2.15-18) (DUNLOP)

42713-300-004

$6.14

14

CAP, RIM HOLE (NOT AVAILABLE)

42717-310-000

Unavailable

15

BOLT, DRIVEN SPROCKET FIXING

90128-382-670

$6.52

15

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-446-770.

90128-382-670

$6.52

16

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

17

NUT, FLANGE (10MM)

90308-382-670

$4.07

18

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$5.05

18

DUST SEAL (21X37X5.5) (ARAI) This part replaces 90755-GC4-005.

90755-GC4-003

$5.05

19

CIRCLIP (OUTER) (50MM)

94511-50000

$2.25

20

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

21

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

22

SPOKE SET B (9X192.5)

97336-52225-P0

Unavailable

23

SPOKE SET B (9X192)

97772-52224-P0

Unavailable
