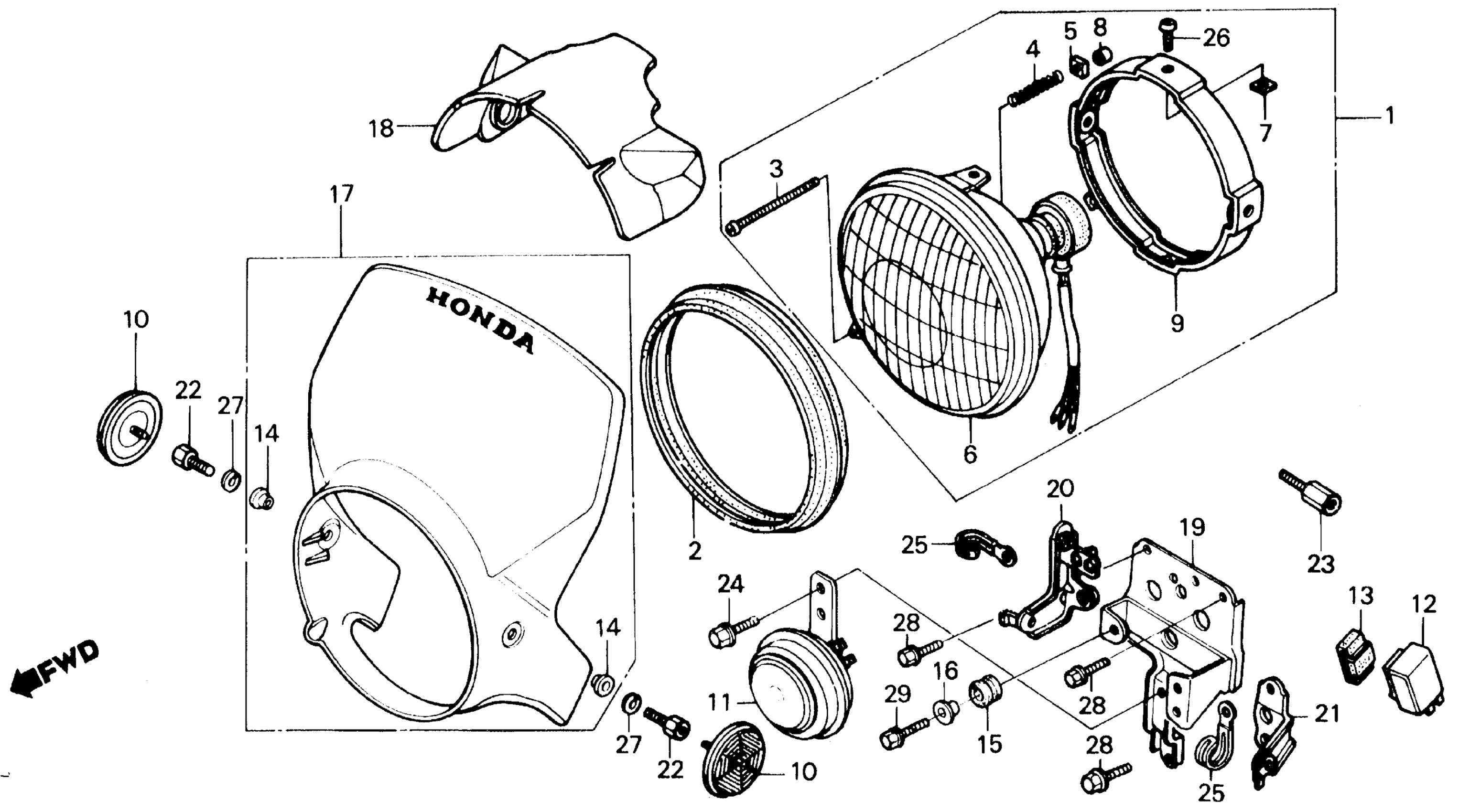

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-KJ2-671

Unavailable

2

SEAL, HEADLIGHT RUBBER (NOT AVAILABLE)

33102-KJ2-670

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING

33103-329-003

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING This part replaces 33103-329-671.

33103-329-003

Unavailable

4

SPRING, BEAM ADJUSTING

33107-KJ2-671

Unavailable

5

NUT, BEAM ADJ.

33118-438-841

$2.23

6

HEADLIGHT UNIT (NOT AVAILABLE)

33120-KJ2-671

Unavailable

7

NUT, UNIT HOLDER

33128-292-670

$2.94

8

COVER, SCREW

33136-426-830

$1.89

9

RING, SETTING

33153-KJ2-671

Unavailable

10

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

10

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

11

HORN This part replaces 38110-KJ2-671.

38110-KJ2-673

Unavailable

12

RELAY, TURN SIGNAL (DENSO)

38301-MG2-008

Unavailable

13

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

14

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

15

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

17

VISOR SET, FR. *NH111* (CORTINA WHITE)

613A0-KJ2-620ZA

Unavailable

18

RUBBER, FR. VISOR

61306-KB7-000

Unavailable

19

STAY, HEADLIGHT CASE

61310-KJ2-670

Unavailable

20

SUB-STAY, R. HEADLIGHT CASE

61315-KJ2-670

Unavailable

21

SUB-STAY, L. HEADLIGHT CASE

61316-KJ2-670

Unavailable

22

BOLT, REFLECTOR

90106-KJ2-670

Unavailable

23

BOLT, HEADLIGHT STAY

90123-KB7-000

Unavailable

24

BOLT, FLANGE (8X20) This part replaces 90133-KA3-730.

96300-08020-00

$1.57

24

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

24

BOLT, FLANGE (8X20) This part replaces 96500-08012-00.

96300-08020-00

$1.57

24

BOLT, FLANGE (8X20) This part replaces 96500-08020-00.

96300-08020-00

$1.57

25

CLIP, WIRE

91406-166-000

$3.83

26

SCREW, PAN (5X8)

93500-05008-0H

$1.49

26

SCREW, PAN (5X8) This part replaces 93500-05008-1H.

93500-05008-0H

$1.49

27

WASHER, SPRING (6MM)

94111-06800

$1.49

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

29

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
