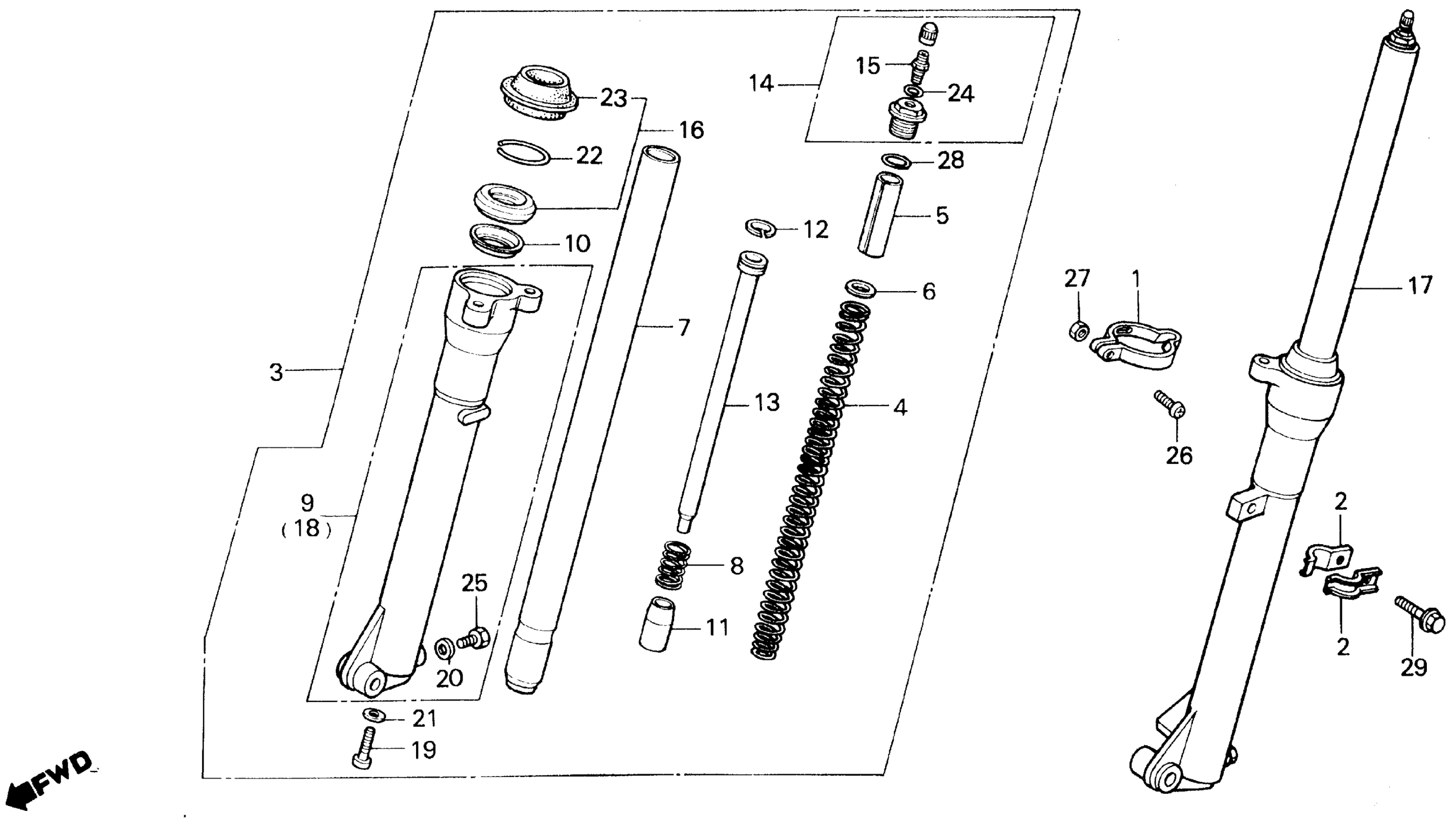

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KJ2-000

Unavailable

2

CLAMP, FR. BRAKE (NOT AVAILABLE)

45461-KB9-000

Unavailable

3

FORK ASSY., R. FR.

51400-KJ2-671

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-KJ3-003

Unavailable

5

COLLAR, SPRING

51402-KJ3-003

Unavailable

6

SEAT, SPRING

51403-KJ3-003

Unavailable

7

PIPE, FR. FORK

51410-KJ3-003

Unavailable

8

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

9

CASE, R. (LOWER)

51420-KJ3-003

Unavailable

10

RING, BACK-UP This part replaces 51422-376-003.

51422-376-305

Unavailable

10

RING, BACK-UP

51422-376-305

Unavailable

11

PIECE, OIL LOCK

51432-GE4-003

Unavailable

12

RING, PISTON

51437-400-771

$6.30

13

PIPE, SEAT

51440-KJ2-671

Unavailable

14

BOLT ASSY., FR. FORK

51450-KJ3-003

Unavailable

15

VALVE, AIR (SHOWA)

51456-469-013

$33.69

16

SEAL SET, FR. FORK

51490-GC4-830

Unavailable

16

SEAL SET, FR. FORK This part replaces 51490-KJ2-670.

51490-GC4-830

Unavailable

17

FORK ASSY., L. FR.

51500-KJ2-671

Unavailable

18

CASE, L. (LOWER)

51520-KJ2-671

Unavailable

19

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

20

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

22

RING, OIL SEAL STOP

90601-GC4-731

Unavailable

23

DUST SEAL

51425-473-003

$26.44

23

DUST SEAL This part replaces 91254-KJ2-671.

51425-473-003

$26.44

24

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

24

O-RING (5.8X1.9)

91305-323-000

$2.92

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

SCREW, PAN (5X20)

93500-05020-0A

$1.49

27

NUT, HEX. (5MM)

94001-05000-0S

$2.74

28

O-RING (23X2.8)

94608-50000

$1.49

29

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

29

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
