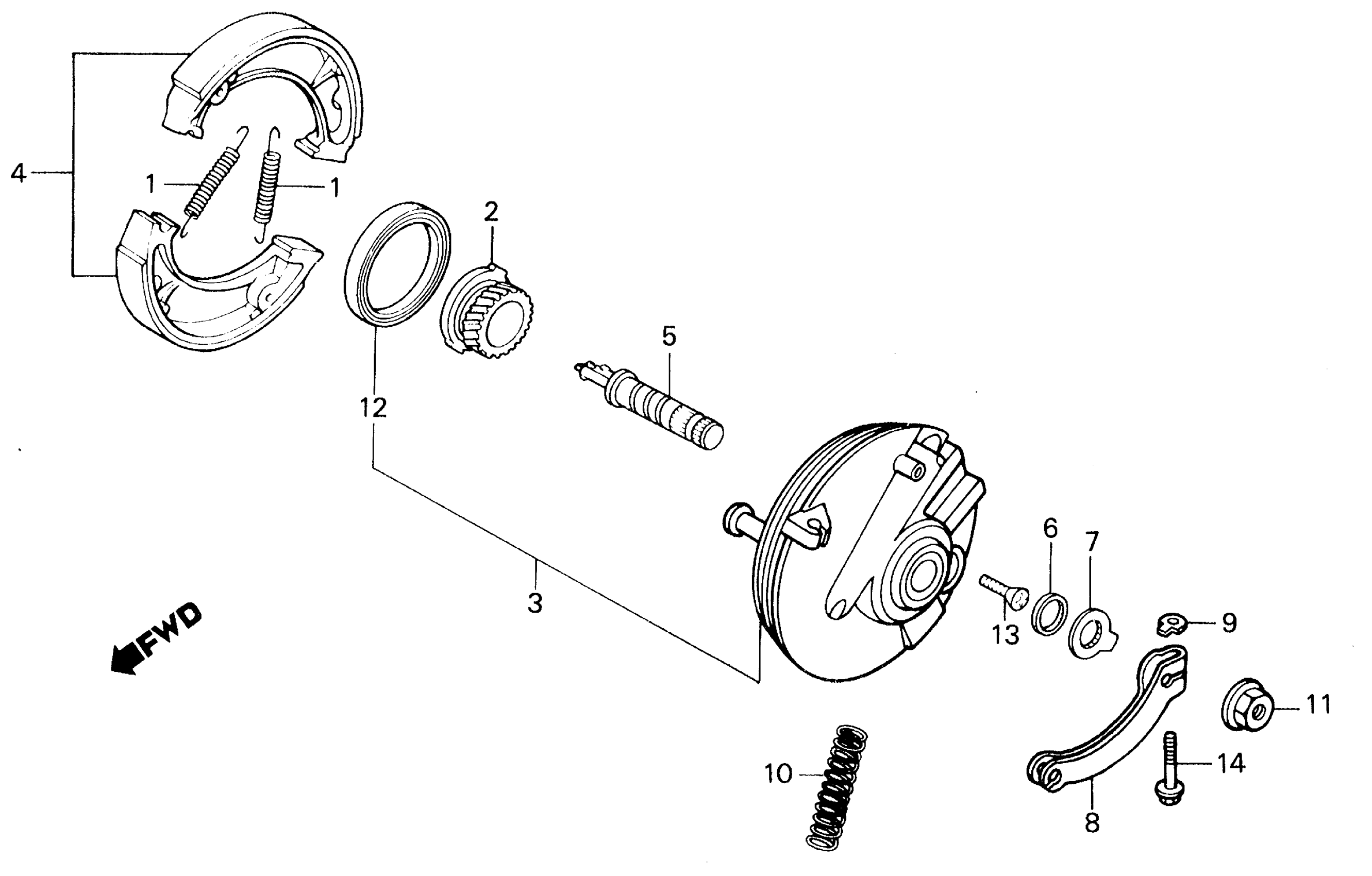

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KB9-406.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 451A2-KB9-015.

06430-GBJ-J10

$29.23

1

SPRING, BRAKE SHOE

43151-110-000

$2.92

2

GEAR, SPEEDOMETER

44804-KA2-003

Unavailable

3

PANEL SUB, FR. BRAKE *NH105* (MAT BLACK)

45010-KJ2-670ZA

Unavailable

4

SHOE SET, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-KB9-015

Unavailable

5

CAM, FR. BRAKE

45131-KB9-000

Unavailable

6

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

7

INDICATOR, FR. BRAKE

45145-GC5-000

Unavailable

8

ARM, FR. BRAKE This part replaces 45410-KE1-000.

45410-KT0-830

Unavailable

8

ARM, FR. BRAKE

45410-KT0-830

Unavailable

9

NUT, FR. BRAKE ARM SETTING

45436-GC5-000

Unavailable

10

SPRING, BRAKE CABLE

45454-KR8-000

Unavailable

11

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

12

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

12

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

12

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

12

OIL SEAL (47X60X7)

91251-361-005

$13.39

13

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

14

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

14

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
