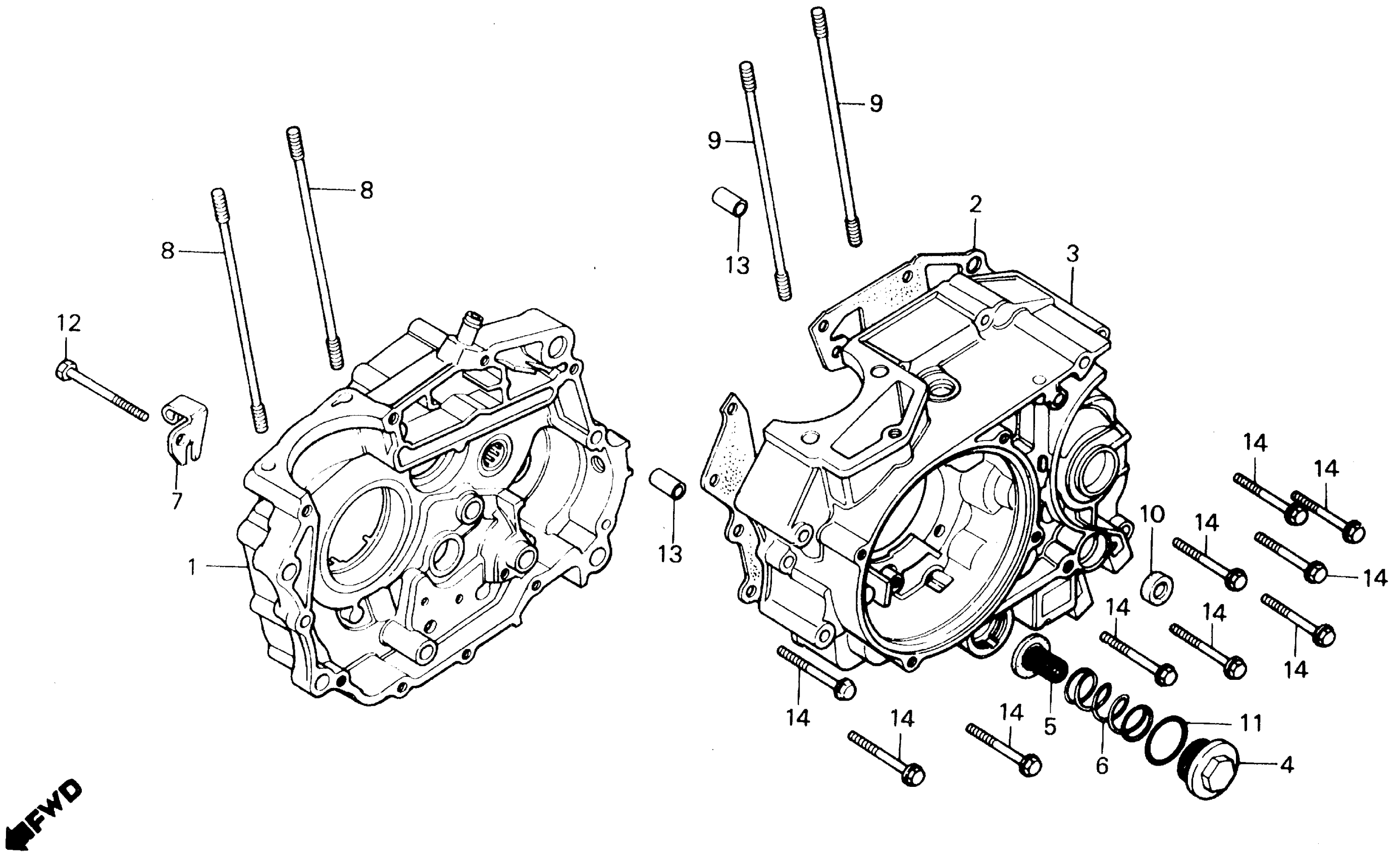

Honda TLR200A (87) REFLEX, JPN, VIN# JH2MD090-HK100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-KA2-000.

11100-KA2-405

Unavailable

1

CRANKCASE, R. This part replaces 11100-KA2-010.

11100-KA2-405

Unavailable

1

CRANKCASE, R. This part replaces 11100-KA2-020.

11100-KA2-405

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KT0-710.

11191-KT0-711

$21.56

2

GASKET, CRANKCASE This part replaces 11191-437-020.

11191-KT0-711

$21.56

2

GASKET, CRANKCASE This part replaces 11191-437-306.

11191-KT0-711

$21.56

3

CRANKCASE, L.

11200-KJ2-000

Unavailable

4

CAP, VALVE ADJ.

12361-383-000

$6.43

5

SCREEN, OIL FILTER

15421-107-000

$6.31

6

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

7

HOLDER, CLUTCH CABLE

22838-KY0-890

Unavailable

7

HOLDER, CLUTCH CABLE This part replaces 22838-397-630.

22838-KY0-890

Unavailable

7

HOLDER, CLUTCH CABLE This part replaces 22838-437-000.

22838-KY0-890

Unavailable

8

BOLT A, CYLINDER STUD

90031-427-010

Unavailable

9

BOLT B, CYLINDER STUD

90032-427-010

$10.95

10

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

11

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

12

BOLT, HEX. (6X60) This part replaces 92000-06060-0A.

92101-06060-0A

$1.49

12

BOLT, HEX. (6X60)

92101-06060-0A

$1.49

13

PIN A, DOWEL (10X14)

94301-10140

$2.28

14

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

14

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
