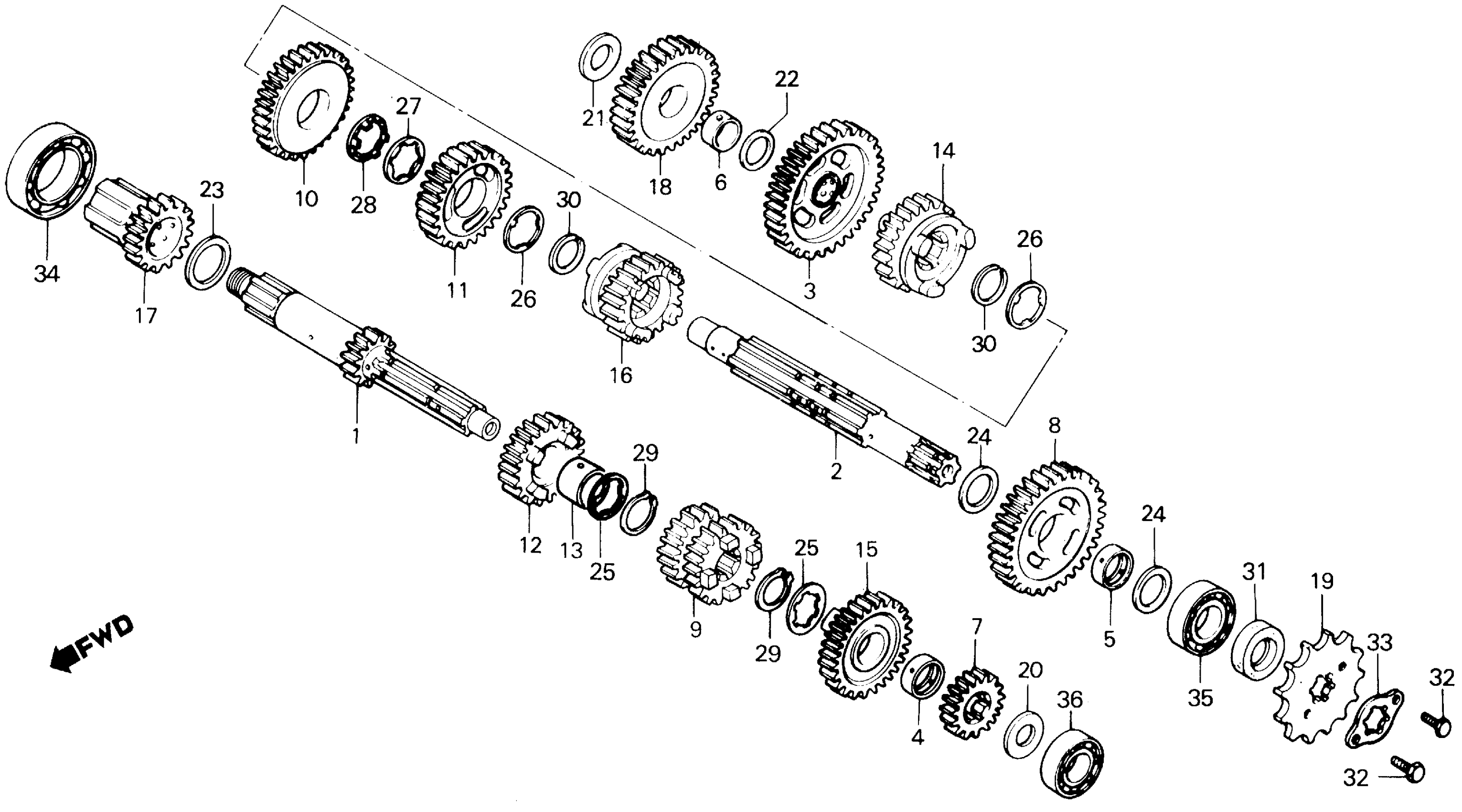

Honda TLR200A (86) REFLEX, JPN, VIN# JH2MD090-GK000001 TO JH2MD090-GK005286 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT

23210-KJ2-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-446-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23420-KT0-770

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) This part replaces 23420-446-770.

23420-KT0-770

Unavailable

4

BUSH (20MM) This part replaces 23431-KA2-000.

23431-KFB-000

$20.66

4

BUSH (20MM)

23431-KFB-000

$20.66

5

BUSH (20MM)

23431-437-000

$28.16

6

BUSHING

23431-439-000

Unavailable

7

GEAR, MAINSHAFT SECOND (16T)

23441-KJ2-000

Unavailable

8

GEAR, COUNTERSHAFT SECOND (33T)

23451-KJ2-000

Unavailable

9

GEAR, MAINSHAFT THIRD & FOURTH (20T/23T)

23461-KJ2-000

Unavailable

10

GEAR, COUNTERSHAFT THIRD (30T) (NOT AVAILABLE)

23471-KJ2-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (26T)

23491-446-650

Unavailable

12

GEAR, MAINSHAFT FIFTH (26T)

23501-KA2-000

Unavailable

13

BUSH (20MM)

23502-KA2-000

$29.67

14

GEAR, COUNTERSHAFT FIFTH (24T)

23511-446-650

Unavailable

15

GEAR, MAINSHAFT TOP (28T)

23512-KA2-000

Unavailable

16

GEAR, COUNTERSHAFT TOP (22T)

23513-446-650

Unavailable

17

GEAR, STARTER (19T)

23520-437-000

Unavailable

18

GEAR ONLY, IDLE STARTER (28T)

23531-437-310

Unavailable

19

SPROCKET, DRIVE (13T) This part replaces 23801-KJ1-000.

23801-KJ1-010

Unavailable

19

SPROCKET, DRIVE (13T)

23801-KJ1-010

Unavailable

20

WASHER, THRUST (15MM)

90451-107-000

$1.49

21

WASHER, THRUST (15MM)

90451-365-000

$3.08

22

WASHER, THRUST (16.5MM)

90452-437-000

$3.40

23

WASHER A, THRUST (20MM)

90453-107-000

$2.25

24

WASHER, THRUST (20MM)

90454-107-000

$1.80

25

WASHER A, SPLINE (20MM)

90456-KA2-000

Unavailable

26

WASHER, SPLINE (22MM)

90463-437-000

$3.49

27

WASHER, COUNTERSHAFT THIRD SPLINE

90464-360-000

$4.87

28

WASHER, LOCK

90465-360-000

$6.74

29

CIRCLIP (OUTER) (22MM)

90601-437-000

$3.20

30

SET-RING (20MM)

90605-200-000

$2.92

31

OIL SEAL (20X34X6) (NOK) This part replaces 91201-446-003.

91201-446-004

$6.78

31

OIL SEAL (20X34X6) (NOK)

91201-446-004

$6.78

32

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

32

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

32

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

33

PLATE B, FIXING

95014-92100

$1.49

34

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

35

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

36

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
