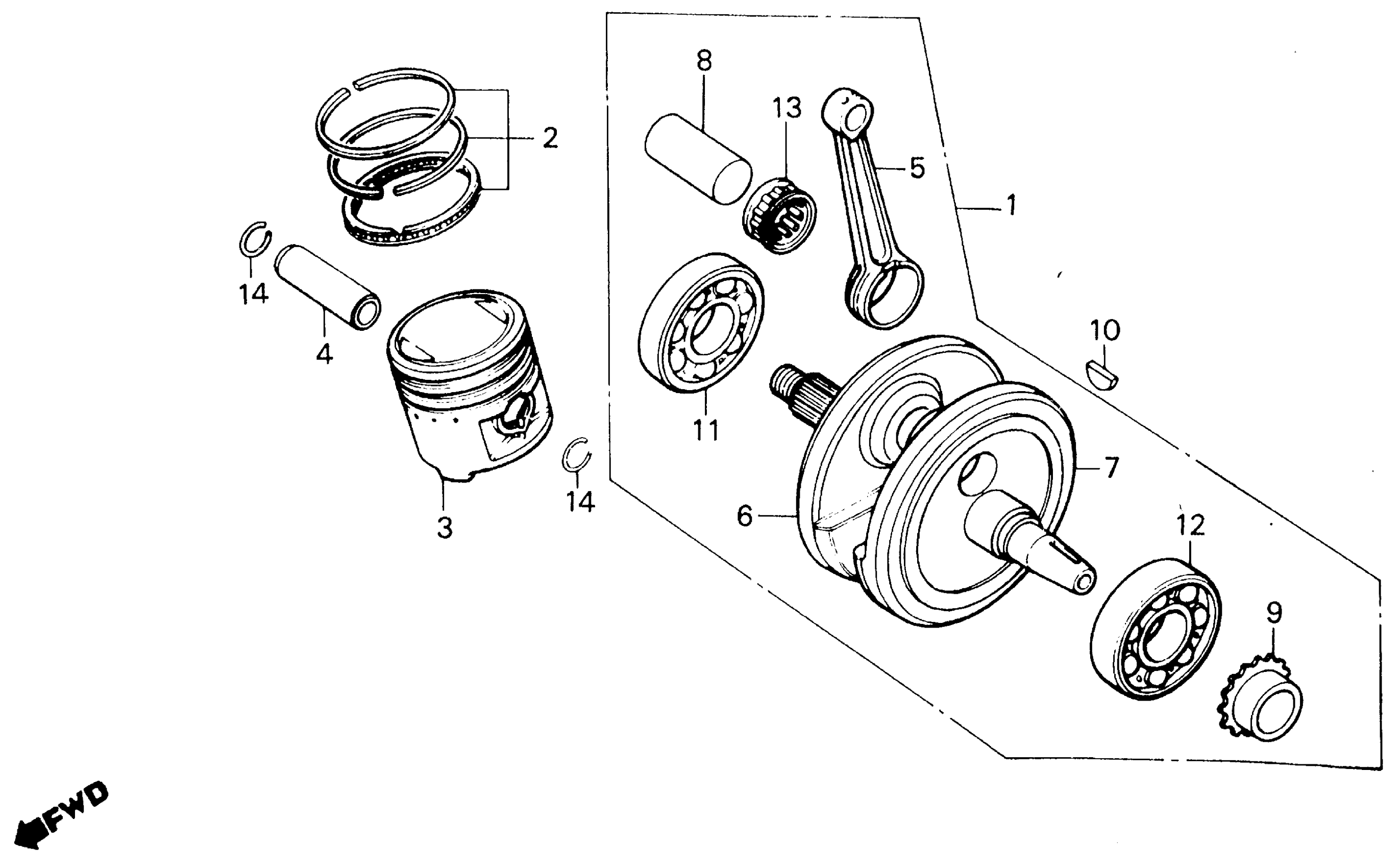

Honda TLR200A (86) REFLEX, JPN, VIN# JH2MD090-GK000001 TO JH2MD090-GK005286 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-KJ2-000

Unavailable

2

RING SET, PISTON (STD)

13011-446-811

$71.19

3

PISTON

13101-KJ2-003

Unavailable

4

PIN, PISTON

13111-425-000

$21.65

5

ROD, CONNECTING

13201-446-770

$168.41

6

CRANKSHAFT, R.

13311-446-305

Unavailable

6

CRANKSHAFT, R. This part replaces 13311-446-770.

13311-446-305

Unavailable

7

CRANKSHAFT, L.

13321-KJ2-300

Unavailable

8

PIN, CRANK

13381-446-770

Unavailable

9

SPROCKET, TIMING (16T)

14311-KJ2-300

$34.75

10

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4) | Use up to Engine SN 5206507 This part replaces 90741-003-010.

90701-HB6-010

$3.78

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-440-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

12

BEARING, RADIAL BALL (28X72X18)

91001-KBR-003

$49.69

12

BEARING, RADIAL BALL (28X72X18) (NTN) This part replaces 91001-446-771.

91001-KBR-003

$49.69

13

BEARING A, CONNECTING ROD LARGE END (RED)

91002-446-771

$33.59

13

BEARING B, CONNECTING ROD LARGE END (BLUE)

91003-446-771

$33.59

13

BEARING C, CONNECTING ROD LARGE END (WHITE)

91004-446-771

$33.59

14

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
