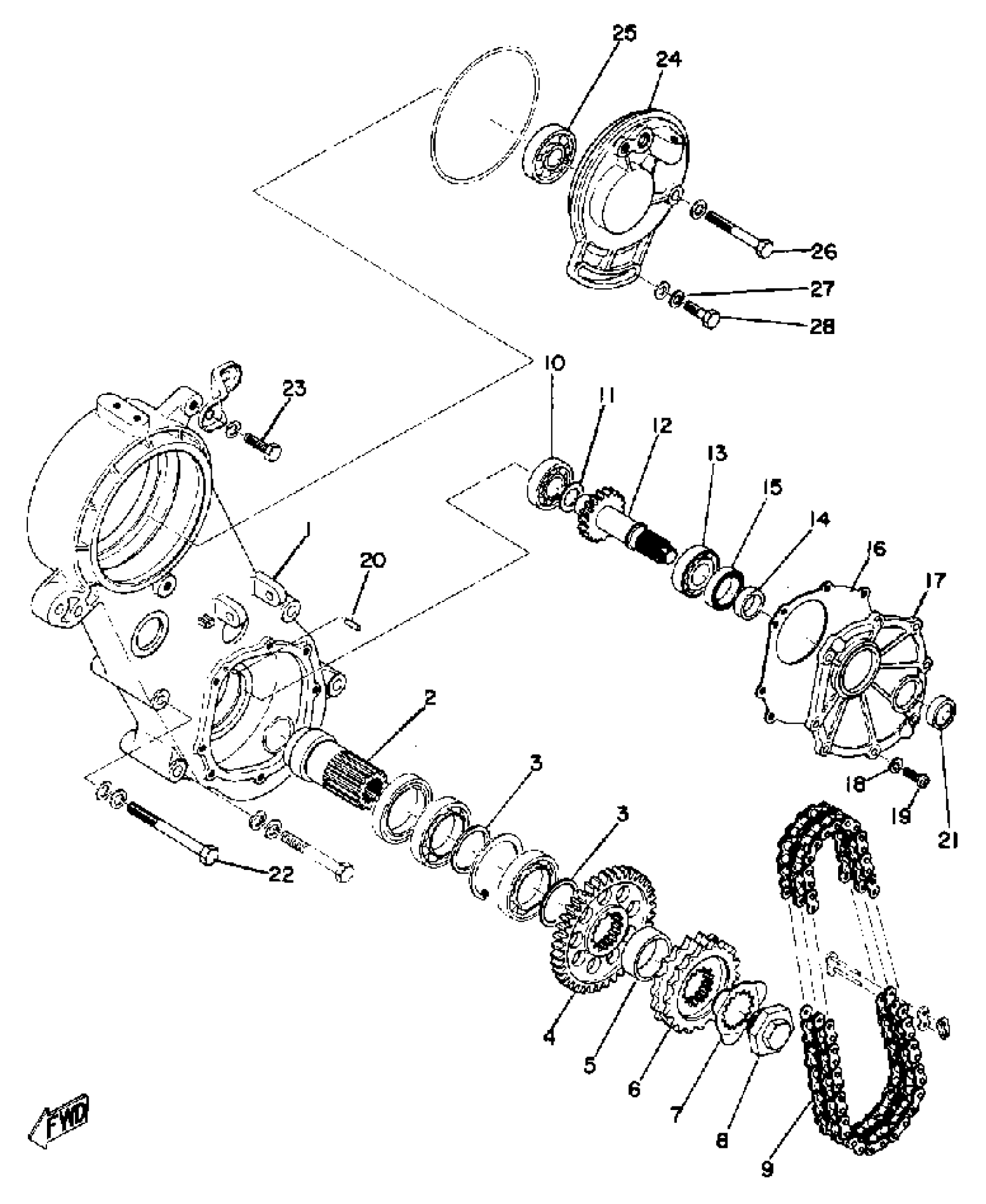

Yamaha TL433F 1974 TRACK DRIVE - FRONT AXLE Diagram

#

Description
Price

1

HOUSING, CHAIN

(874-47541-00-00)

Unavailable

2

JOURNAL 1

(874-47571-00-00)

Unavailable

3

SPACER

90560-35050-00

Unavailable

4

GEAR, 2ND PINION

(874-17121-00-00)

Unavailable

5

COLLAR

(90387-35254-00)

Unavailable

6

SPROCKET, CHN DRVN

(835-47548-90-00)

Unavailable

7

WASHER, LOCK

(90215-29094-00)

Unavailable

8

BOLT

90109-24412-00

Unavailable

9

CHAIN (DK425-2 62L)

94804-25062-00

Unavailable

10

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

11

SHIM 2

874-17228-00-00

Unavailable

12

AXLE, DRIVE

(874-17421-00-00)

Unavailable

13

BEARING (7K2)

93306-00423-00

$37.99

14

COLLAR

(90387-20252-00)

Unavailable

15

OIL SEAL, SD-TYPE

93102-25124-00

Unavailable

16

GASKET

874-47544-00-00

Unavailable

17

CAP, HOUSING

874-47543-00-00

Unavailable

18

WASHER, SEAL (7G5)

90210-06006-00

Unavailable

19

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

20

UNAVAILABLE IN PRICE BOOK

93604-14102-00

Unavailable

21

LEVEL, OIL

(874-47546-00-00)

Unavailable

22

BOLT (97321-08090)

97023-08090-00

Unavailable

23

BOLT, HEXAGON

97013-08020-00

Unavailable

24

HOUSING, SEC SHAFT

(874-47561-00-00)

Unavailable

25

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

26

BOLT (663)

97013-08060-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

BOLT, HEXAGON

97013-08020-00

Unavailable
