TORQUE CONVERTER

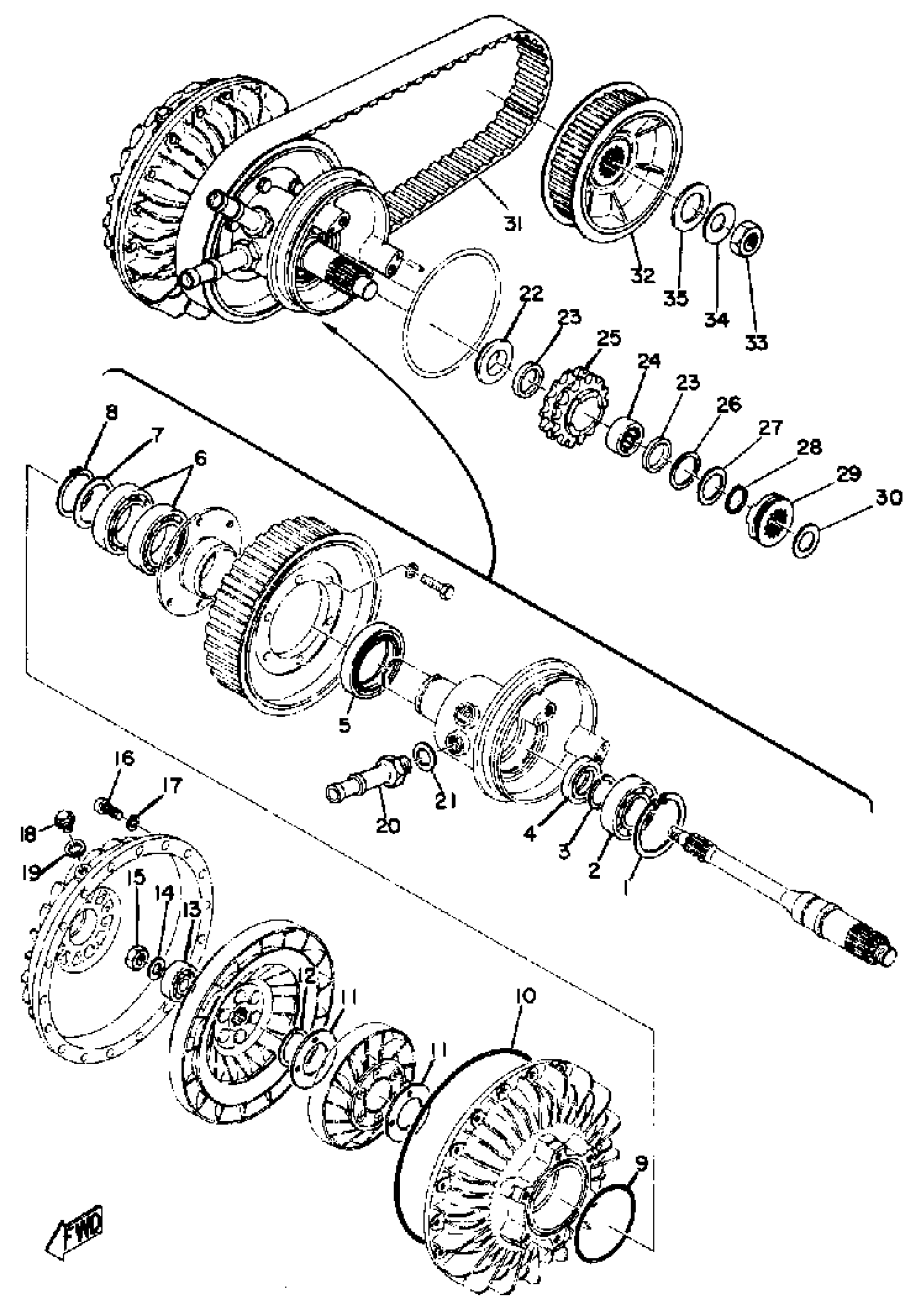

Yamaha TL433F 1974 TORQUE CONVERTER Diagram
#
1
TORQUE CONV ASSEMBLY
(874-16700-00-00)
Unavailable
1
CIRCLIP(26H)
99009-52500-00
$12.49
2
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
$40.99
3
CIRCLIP (4L0)
93440-25084-00
$5.60
4
OIL SEAL (5V6)
93103-25125-00
Unavailable
5
. OIL SEAL, SW-TYPE
93103-48070-00
Unavailable
6
BEARING
(93306-00703-00)
Unavailable
7
SHIM
(834-16715-00-00)
Unavailable
8
. CIRCLIP, S-TYPE (S-35)
93410-35027-00
Unavailable
9
O-RING
(93210-69203-00)
Unavailable
10
. O-RING
93211-64236-00
Unavailable
11
BEARING, THRUST
(834-16737-00-00)
Unavailable
12
CIRCLIP, S-TYPE
(93410-28028-00)
Unavailable
13
BEARING(3WF)
93306-20119-00
$33.99
14
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
15
NUT (682)
95380-10700-00
Unavailable
16
SCREW, PAN HEAD
(98511-05018-00)
Unavailable
17
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
18
BOLT, WASHER BASED(4JT)
90105-08729-00
Unavailable
19
GASKET
90430-08023-00
Unavailable
20
CONNECTOR, PIPE
(868-16756-00-00)
Unavailable
21
GASKET
214-11198-01-00
Unavailable
22
COLLAR
90387-24251-00
Unavailable
23
COLLAR
90387-24253-00
Unavailable
24
BEARING, CYLINDER.#15
93315-22414-00
Unavailable
25
UNAVAILABLE IN PRICE BOOK
874-17682-00-00
Unavailable
26
SHIM (T:0.30MM)
626-45577-20-00
Unavailable
26
SHIM (T:0.50MM)
626-45577-40-00
Unavailable
27
SHIM 3
826-17238-00-00
Unavailable
28
CIRCLIP
99009-24400-00
Unavailable
29
DOG, TRANS SHIFT
874-17492-00-00
Unavailable
30
SHIM 1
136-17417-00-10
Unavailable
31
V-BELT
874-17641-00-00
Unavailable
32
PULLEY 1
(874-16785-00-00)
Unavailable
33
NUT
90170-16425-00
Unavailable
34
WASHER, CONICAL SPR
(90208-16014-00)
Unavailable
35
SPACER
(90560-17078-00)
Unavailable
