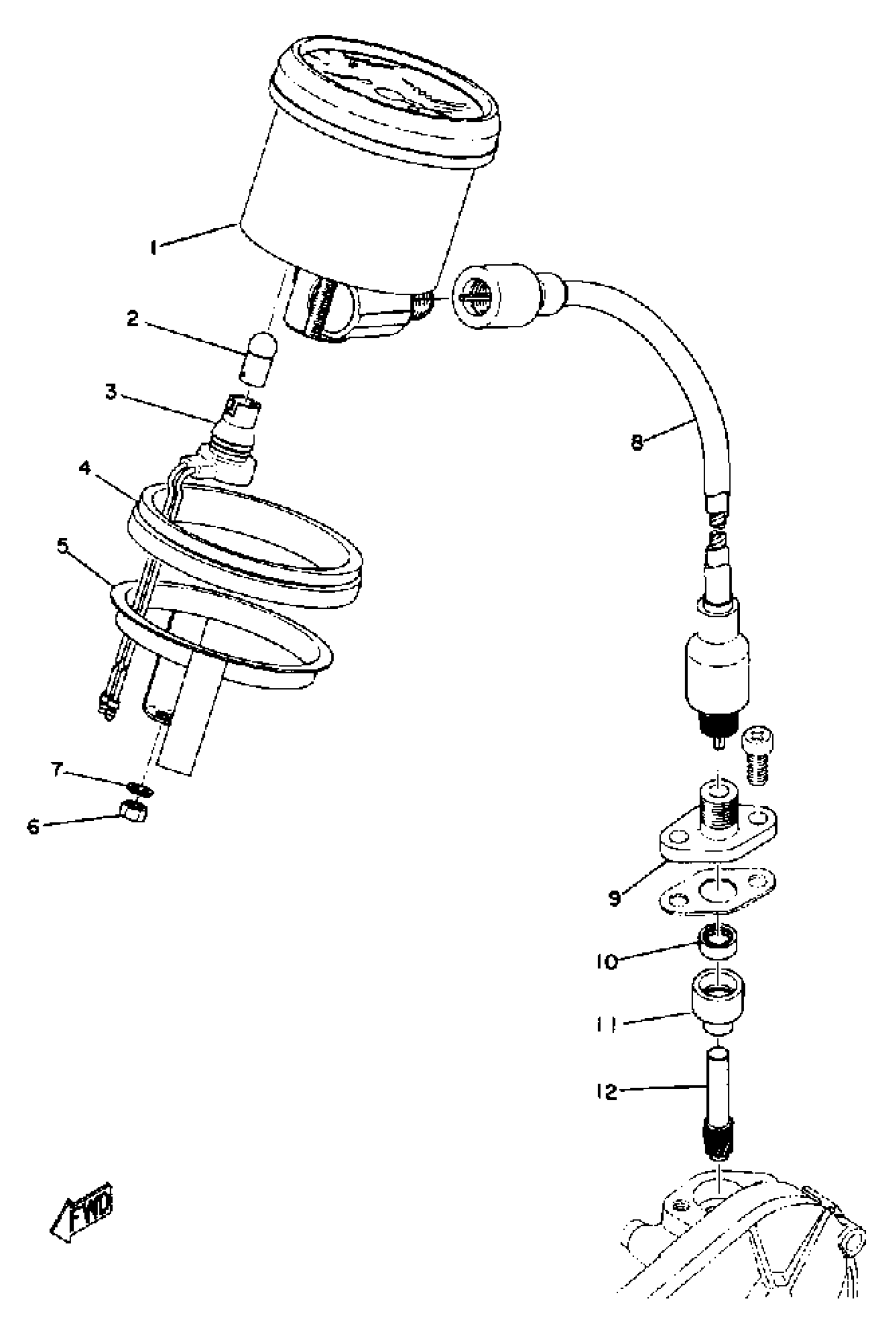

Yamaha TL433F 1974 TACHOMETER UNIT Diagram

#

Description

Price

1

TACHOMETER KIT

(ACC-01200-42-74)

Unavailable

2

BULB (12V-3.4W)

123-83516-21-00

$4.26

3

SOCKET, METER

(861-83536-40-00)

Unavailable

4

. DAMPER

861-83523-40-00

Unavailable

5

. PLATE, FITTING

861-83514-40-00

Unavailable

6

NUT, HEXAGON (663)

95380-05600-00

$8.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

TACHOMETER CABLE (843-83560-00)

843-83560-01-00

Unavailable

9

CAP, HOUSING

821-17819-00-00

Unavailable

10

OIL SEAL (6X12X4-821)

93104-06033-00

$5.60

11

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

Unavailable

12

GEAR, DRIVEN (10T)

813-17841-00-00

Unavailable
