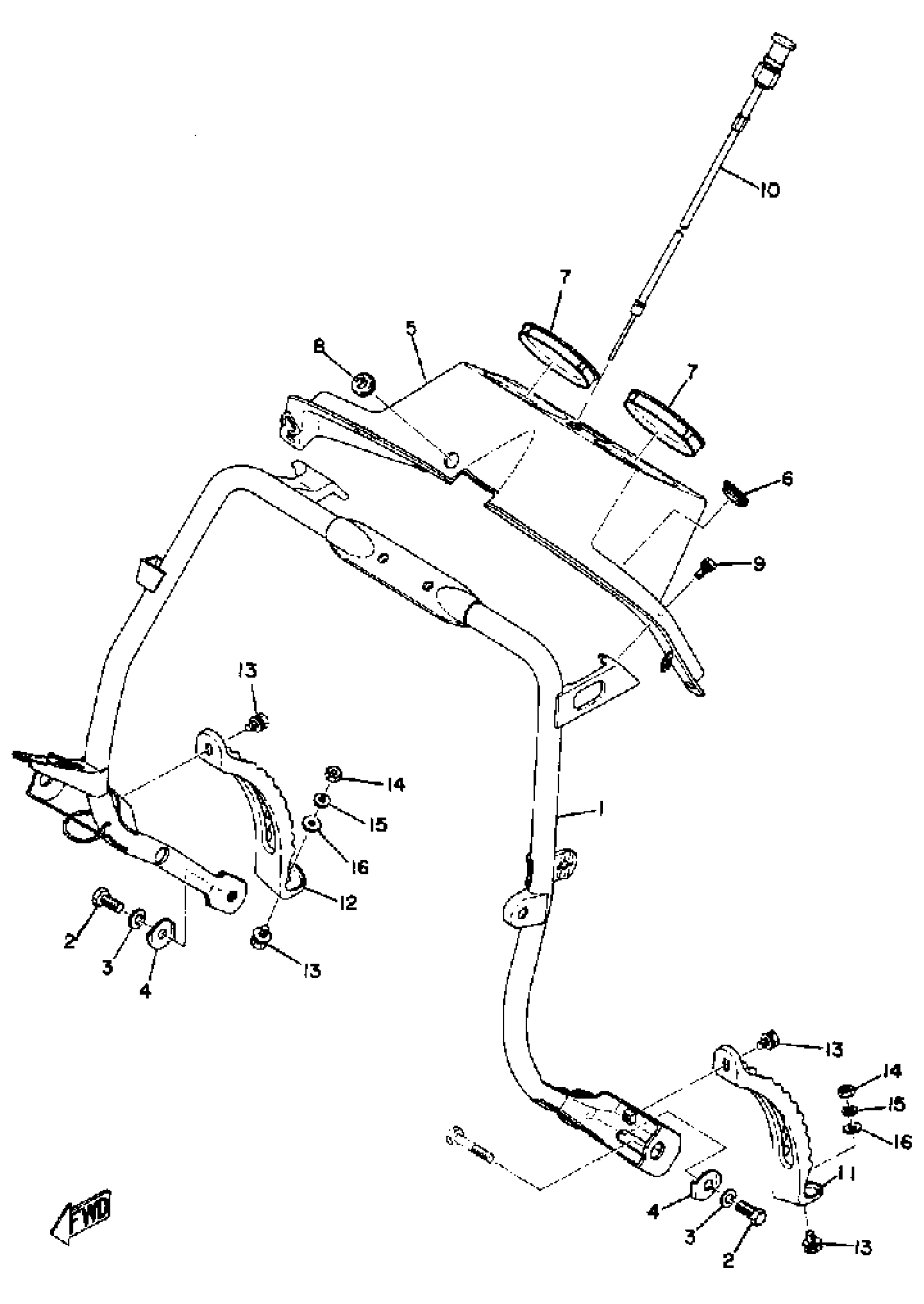

Yamaha TL433F 1974 STEERING GATE Diagram

#

Description
Price

1

STEERING GATE

(874-23870-00-00)

Unavailable

2

BOLT, HEXAGON

97027-08018-00

Unavailable

3

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

4

WASHER, LOCK 2

(861-23895-00-00)

Unavailable

5

PANEL, INSTRUMENT

(874-77711-00-00)

Unavailable

6

GROMMET

(841-77746-00-00)

Unavailable

7

ORMNT, INSTR PNL 1

(861-77715-00-00)

Unavailable

8

GROMMET (462)

90480-13018-00

$8.49

9

WASHER(3SX)

92907-05100-00

$8.49

9

WASHER(6TA)

92907-06200-00

$8.49

9

BOLT, HEXAGON

(97306-05012-00)

Unavailable

10

CABLE, STARTER 1

841-26331-00-00

Unavailable

11

FOOTREST 1

(841-27411-00-00)

Unavailable

12

FOOTREST 2

(841-27421-00-00)

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

WASHER, SPRING

92995-06100-00

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78
