STEERING

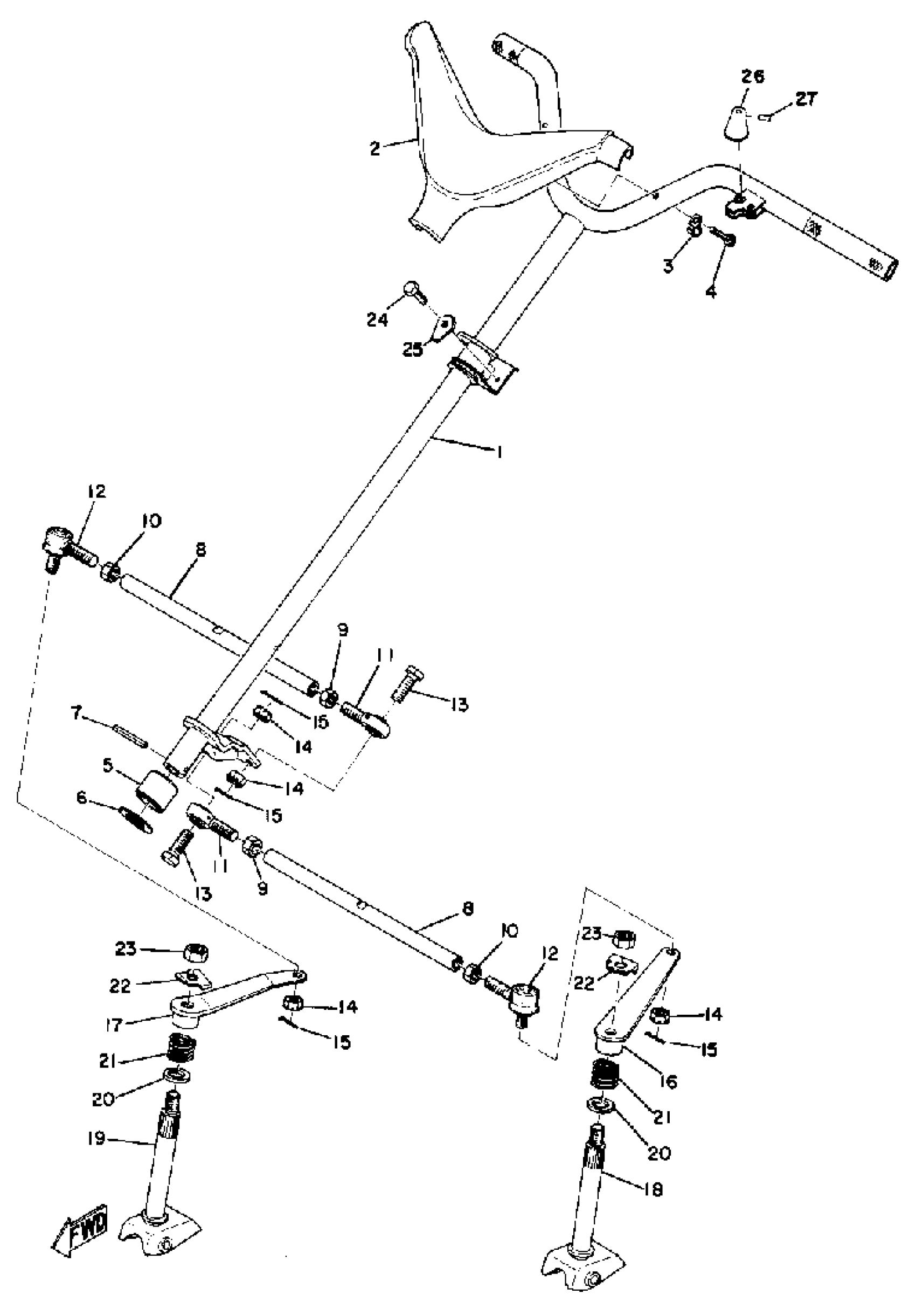

Yamaha TL433F 1974 STEERING Diagram
#
1
STRG COLUMN ASSEMBLY
(861-23810-01-00)
Unavailable
2
PAD, STEERING
(863-23815-01-00)
Unavailable
3
CLAMP
(90462-08003-00)
Unavailable
4
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
4
SCREW, PAN
98507-05035-00
$8.49
5
BEARING, STRG LOWER
(806-23875-00-00)
Unavailable
6
BEARING, STEERING
(841-23812-01-00)
Unavailable
7
PIN, SPRING
91609-60045-00
Unavailable
8
ROD, STEERING RELAY
(861-23821-00-00)
Unavailable
9
NUT, HEXAGON SMALL
95317-12700-00
$8.49
10
NUT (821-23834-00)
90170-12054-00
$8.49
11
JOINT, UNIVERSAL 1
861-23841-00-00
Unavailable
12
JOINT, UNIVERSAL 2
(821-23845-90-00)
Unavailable
13
BOLT
(90109-10170-00)
Unavailable
14
NUT, SLOTTED
95306-10900-00
Unavailable
15
PIN, COTTER(6L5)
91490-25030-00
Unavailable
16
ARM, OUTSIDE 1
861-23851-01-00
Unavailable
17
ARM, OUTSIDE 2
861-23852-01-00
Unavailable
18
COLUMN, SKI 1
861-23853-00-00
Unavailable
19
COLUMN, SKI 2
861-23854-00-00
Unavailable
20
SPACER
90560-20037-00
Unavailable
21
SPRING, COMPRESSION
90501-35154-00
Unavailable
22
WASHER, LOCK (810-23857-00)
90215-12031-00
Unavailable
23
NUT, HEXAGON 98801-12200
90170-12175-00
Unavailable
24
BOLT, HEXAGON
97017-06020-00
Unavailable
25
WASHER, LOCK
(90215-06038-00)
Unavailable
26
LEVER, LOCK
(803-83965-00-00)
Unavailable
27
PIN, SPEC''L SHAPE
(90249-04022-00)
Unavailable
