STARTER

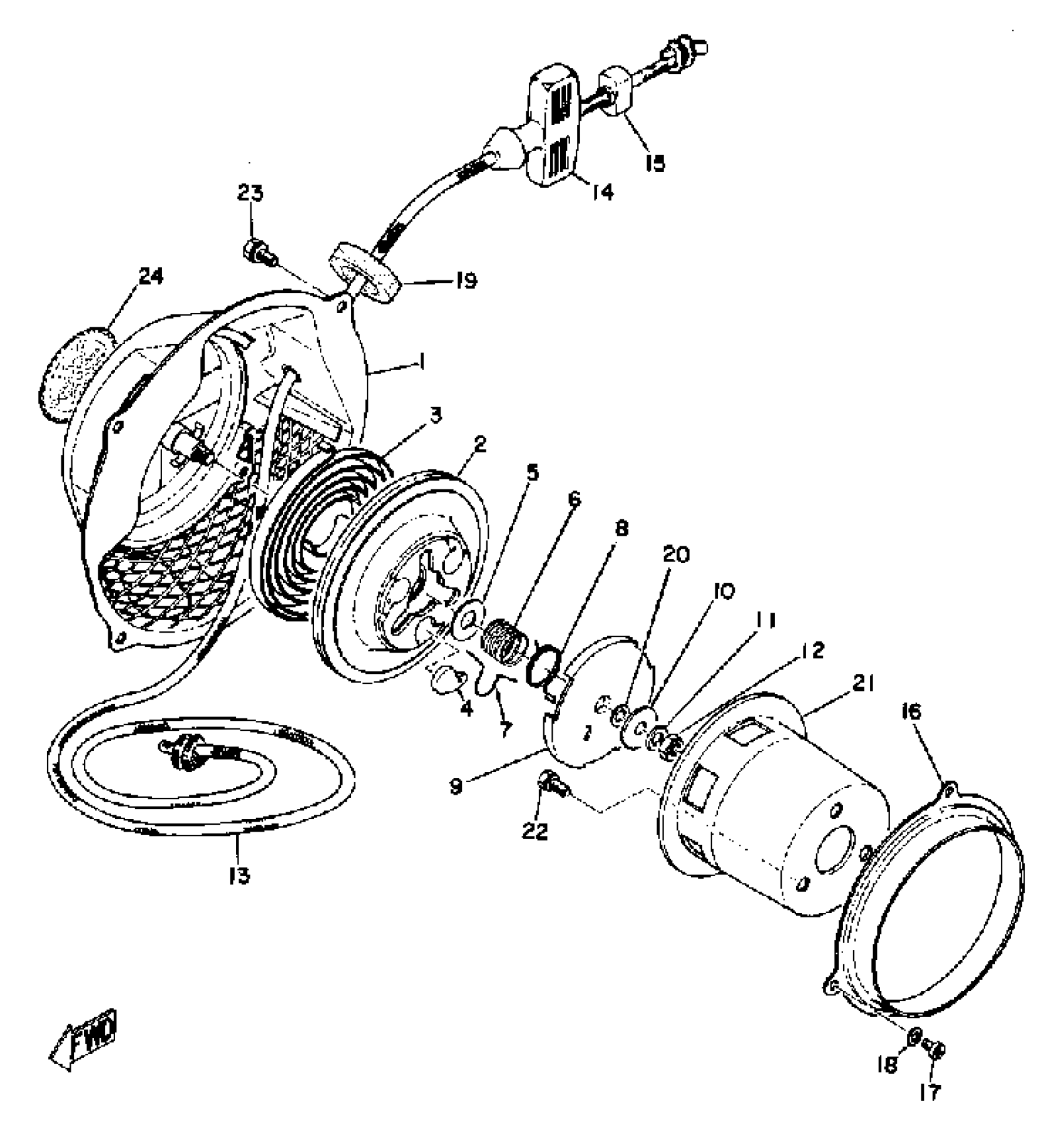

Yamaha TL433F 1974 STARTER Diagram
#
Description
Price
1
STARTER ASSEMBLY
(821-15710-00-00)
Unavailable
1
CASE, STARTER
(821-15711-00-00)
Unavailable
1
WASHER, SPRING
92907-06100-00
$4.25
2
. DRUM, SHEAVE
811-15714-00-00
Unavailable
3
SPRING, STARTER
8F3-15713-01-00
$48.99
4
. PAWL, DRIVE
616-15741-01-00
Unavailable
5
WASHER, FLAT
(802-15726-00-00)
Unavailable
6
SPRING,DRIVE PLATE
626-15715-01-00
Unavailable
7
. SPRING, RETURN
811-15784-00-00
Unavailable
8
. SPRING, RETURN
811-15734-00-00
Unavailable
9
. PLATE, DRIVE
811-15716-00-00
Unavailable
10
WASHER,FLAT
807-15726-01-00
Unavailable
11
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
12
. NUT
95380-08700-00
Unavailable
13
ROPE, STARTER
(807-15751-00-00)
Unavailable
14
. HANDLE, STARTER
807-15755-00-00
Unavailable
15
. UNAVAILABLE IN PRICE BOOK
619-15746-00-00
Unavailable
16
COVER, SHEAVE
(811-15782-00-00)
Unavailable
17
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
18
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
19
KNOB, STOPPER RING
(811-15775-00-00)
Unavailable
20
SHIM
(811-15722-00-00)
Unavailable
21
PULLEY, STARTER
(811-15723-00-00)
Unavailable
22
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
22
UNAVAILABLE IN PRICE BOOK (97301-08015)
97301-08081-00
Unavailable
23
BOLT, HEXAGON
97017-06016-00
Unavailable
24
EMBLEM
(838-15791-00-00)
Unavailable
