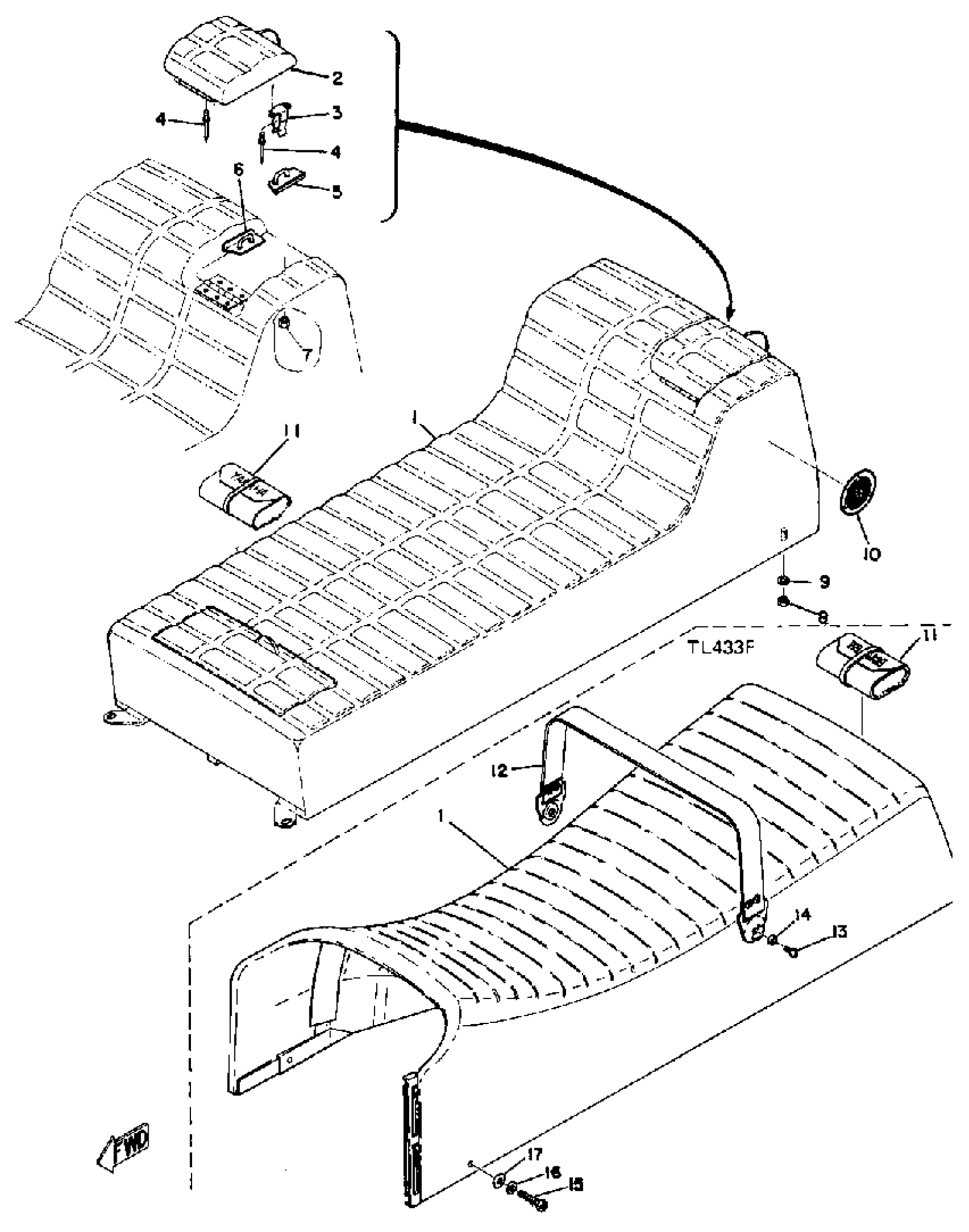

Yamaha TL433F 1974 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

(865-24730-00-00)

Unavailable

1

. COVER, DOUBLE SEAT

865-24731-00-00

Unavailable

2

LID, DOUBLE SEAT

(861-24765-00-00)

Unavailable

3

SPRING, SEAT BACK

(821-24794-00-00)

Unavailable

4

RIVET, BLIND

(90267-32017-00)

Unavailable

5

PIN

(838-24793-00-00)

Unavailable

6

PIN

(838-24784-00-00)

Unavailable

7

NUT(650)

95380-06700-00

$8.49

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

9

WASHER(6TC)

92907-08200-00

$8.49

10

EMBLEM 2

821-77352-00-00

Unavailable

11

TOOL KIT

(865-28100-10-00)

Unavailable

12

BAND, SEAT

867-24734-00-00

Unavailable

13

SCREW, BIND

98903-08012-00

Unavailable

14

COLLAR 3

700-48183-10-00

Unavailable

15

SCREW, BINDING

98907-06035-00

Unavailable

16

WASHER, SPRING

92907-06100-00

Unavailable

17

WASHER, PLATE 8221447500

90201-06057-00

Unavailable
