Description

Price

1

AXLE, REAR

(865-47521-01-00)

Unavailable

2

COLLAR 3

(865-47479-03-00)

Unavailable

3

PIN, SPRING (663)

91690-40040-00

Unavailable

4

WHEEL, GUIDE 2

(865-47535-00-00)

Unavailable

5

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

6

CIRCLIP(48Y)

99009-47500-00

$9.49

7

WASHER, PLATE (3L5)

90201-08772-00

$3.45

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

BOLT, HEXAGON

97013-08030-00

$2.49

10

SHAFT 3

(865-47485-00-00)

Unavailable

11

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

12

BEARING(8AB)

93306-00444-00

$41.99

13

CIRCLIP(5U8)

99009-42500-00

$8.49

14

CIRCLIP(1AR)

99009-20400-00

$8.49

15

WASHER PLATE 820473590000

90201-20272-00

$7.49

16

CAP, WHEEL

(829-47317-00-00)

Unavailable

17

SPACER

(865-47341-00-00)

Unavailable

18

SPRING, BELLEVILLE

(829-16119-00-00)

Unavailable

19

BOLT

(90101-08024-00)

Unavailable

20

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

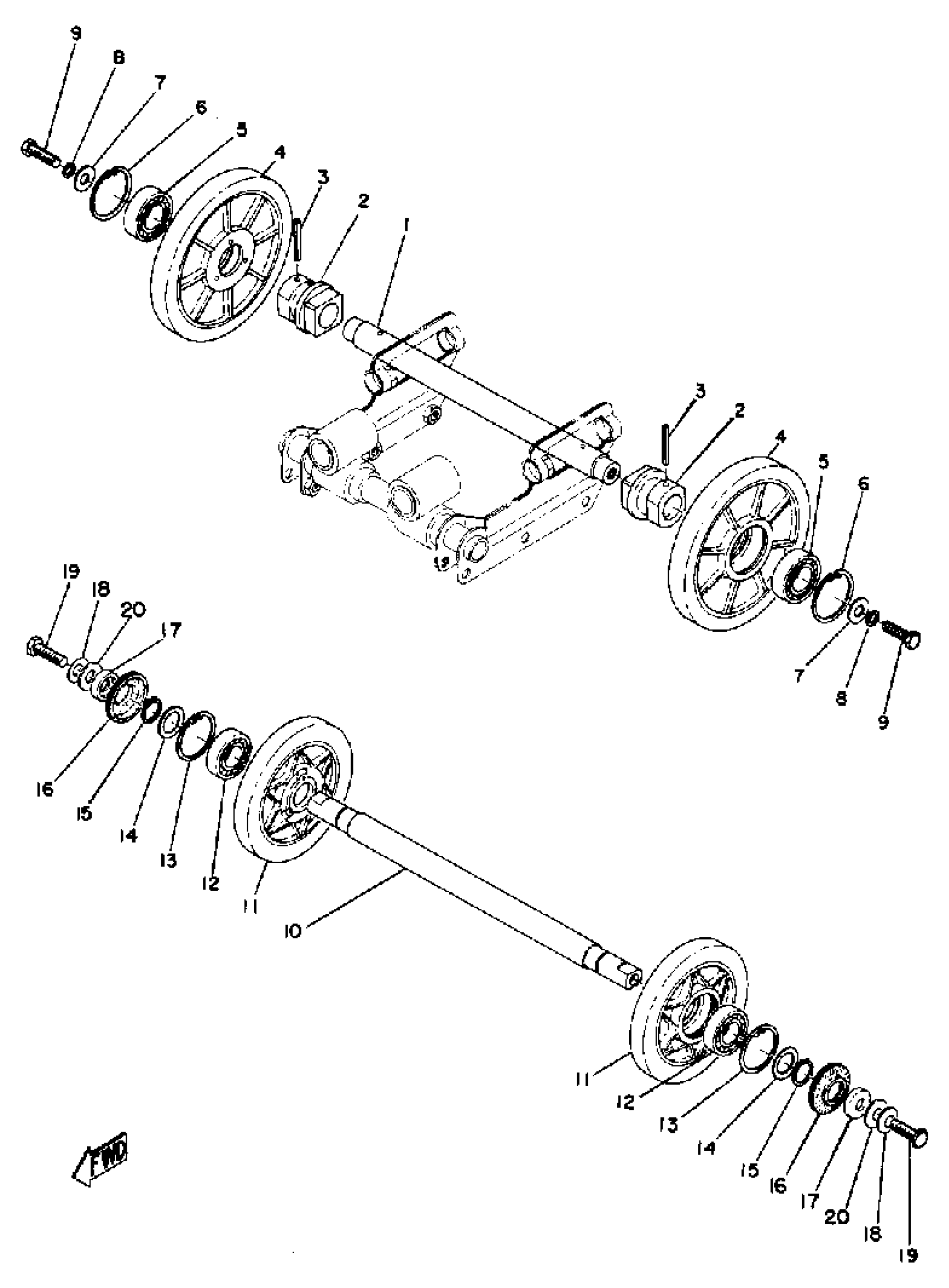

Yamaha TL433F 1974 REAR AXLE - WHEEL Diagram

AXLE, REAR

COLLAR 3

PIN, SPRING (663)

WHEEL, GUIDE 2

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

WASHER, PLATE (3L5)

YBS67-8 WASHER, SPRING

BOLT, HEXAGON

SHAFT 3

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

WASHER PLATE 820473590000

CAP, WHEEL

SPACER

SPRING, BELLEVILLE

BOLT

WASHER, PLATE (5J0)
