Description

Price

1

TANK, OIL

867-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

SCREW, PN/HD.W/WSHR

(97601-05115-00)

Unavailable

5

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

6

GAUGE, OIL

841-21792-00-00

Unavailable

7

HOSE (806-24319-00)

90446-09051-00

Unavailable

8

CLIP (8L2)

90467-08017-00

$10.49

9

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

10

CLAMP, HOSE

90460-09001-00

Unavailable

11

HOSE

90446-09052-00

Unavailable

12

STRAINER HOUSING ASSEMBLY

J10-13410-00-00

Unavailable

13

CLIP (8L2)

90467-08017-00

$10.49

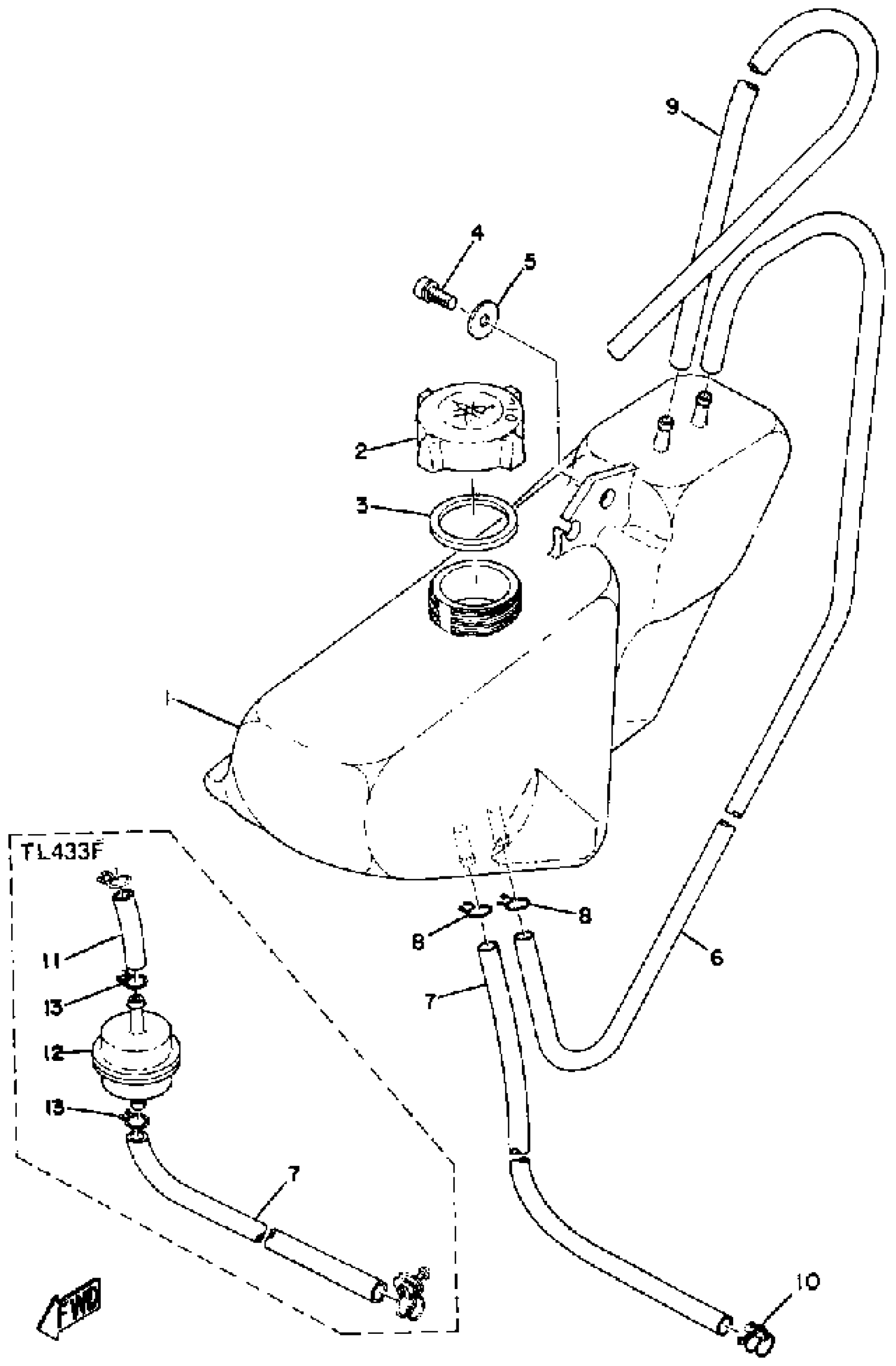

Yamaha TL433F 1974 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

SCREW, PN/HD.W/WSHR

WASHER, PLATE (4H7)

GAUGE, OIL

HOSE (806-24319-00)

CLIP (8L2)

TUBE, FLEXIBLE VINYL(8AK)

CLAMP, HOSE

HOSE

STRAINER HOUSING ASSEMBLY

CLIP (8L2)
